Recipe number 35

Cookbook · Chapter 8 · Tables

Garden almanac: calendar grid and landscape chart

A 38-crop sowing chart set in landscape on two pages of its own, a calendar computed from dates and a companion matrix, their cells filled from the palette.

p. 27 · 1 of 4

  • Trim 210 × 280 mm
  • 2 columns, 7 mm gutter
  • Piazzolla 9.8/14
  • Commissioner
  • Gilda Display
  • 4 pages
  • Level
  • Postext 1.57.1
  • Laid out in 80 ms
  • 251 lines of code

In short

The March pages of a gardener's almanac, with a monthly calendar and colourful charts. It shows how to build tables from data and turn a chart too wide for the page on its side.

What you'll build

The March pages of a gardener's almanac written in Italian. Page 27 opens on a watercolour of seedlings in dark soil under a pale sky, with the month's name at 84 pt and a country proverb. Under two columns of text comes the month's calendar, which the pen computes from dates: Sundays in red on a cream column, Easter Sunday and Monday on pink, and the moon's four quarters drawn beside their days. Page 28 lists the month's work in a two-column box and colours a ten-by-ten companion-planting matrix green, pink or cream, with a drawing of each crop on the diagonal. The year's sowing dates, 38 crops by fortnight, are wider than the page, so the chart turns a quarter onto pages 29 and 30 and repeats its head on the second.

This recipe answers

  • How do I set a wide table in landscape on its own page?
  • How do I make a table with header rows, merged cells, column widths and per-cell alignment?
  • How do I style several tables differently (fills, zebra cells, rounded frames) in one document?
  • How do I put pictures or icons inside table cells?
  • How do I add colour-key swatches to text, captions or table notes?

The short answer

script.js · lines 31–67in full code
// The chart's `placement` (#region resources): a quarter turn makes it a page-span float on
// pages of its own, flush to the spine; rows past the page's width go on under a repeated head.
const chartPlacement = { rotate: 'ccw' }; // a float: 'here' ignores the turn
const MONTHS = ['gen', 'feb', 'mar', 'apr', 'mag', 'giu', 'lug', 'ago', 'set', 'ott', 'nov', 'dic'];
const SEASONS = [['INVERNO', 2], ['PRIMAVERA', 3], ['ESTATE', 3], ['AUTUNNO', 3], ['INVERNO', 1]];
const STATES = { S: 'ochre', C: 'green', T: 'brown' }; // seedbed, sown outdoors, planted out
const fortnight = (key) => MONTHS.indexOf(key.slice(0, 3)) * 2 + Number(key[3]); // 'mar2' → 6
function sowingChart(data) { // 'Pomodoro: S feb2–mar2, T apr2–mag2'; a bare line is a family
  const row = (first, isHeader = false) => [first, ...Array(24).fill('')]
    .map((content) => ({ content, isHeader }));
  let m = { headerRowCount: 2, columnWidths: [30, ...Array(24).fill(8.5)], // mm, as weights
    rows: [row('', true), row('', true)] };
  for (const line of data.trim().split('\n')) {
    const [name, plan] = line.split(': ');
    const r = m.rows.push(row(plan ? name : chip(name.toUpperCase(), 'famiglia'))) - 1;
    if (!plan) { m = mergeCells(m, span(r, 0, r, 24)); continue; } // a family heads its crops
    for (let f = 1; f <= 24; f++) { // every other month tinted, so a column reads down the page
      if ((f - 1) % 4 < 2) m = setCellBackground(m, at(r, f), col('cream'));
    }
    for (const step of plan.split(', ')) { // 'S feb2–mar2': one state over a run of fortnights
      const [state, range] = step.split(' ');
      const [from, to = from] = range.split('–').map(fortnight);
      for (let f = from; f <= to; f++) m = setCellBackground(m, at(r, f), col(STATES[state]));
    }
  }
  // Merged heads: 'Coltura' down both rows, each season over its months, each month over its
  // two fortnights. mergeCells marks the covered cells hiddenBy (gotcha: merged-cells-hiddenby).
  const merge = (r0, c0, r1, c1, content) => { // the head's text goes in its first cell
    m = mergeCells(setCellContent(m, at(r0, c0), content), span(r0, c0, r1, c1));
  };
  merge(0, 0, 1, 0, 'Coltura');
  let c = 1;
  for (const [name, n] of SEASONS) { merge(0, c, 0, c + 2 * n - 1, name); c += 2 * n; }
  MONTHS.forEach((month, i) => merge(1, 2 * i + 1, 1, 2 * i + 2, month.toUpperCase()));
  for (const r of [0, 1]) for (let f = 1; f <= 24; f++) m = setAlignment(m, at(r, f), 'center');
  return setCellBackground(m, at(1, fortnight('mar1')), col('red')); // this month's head
}

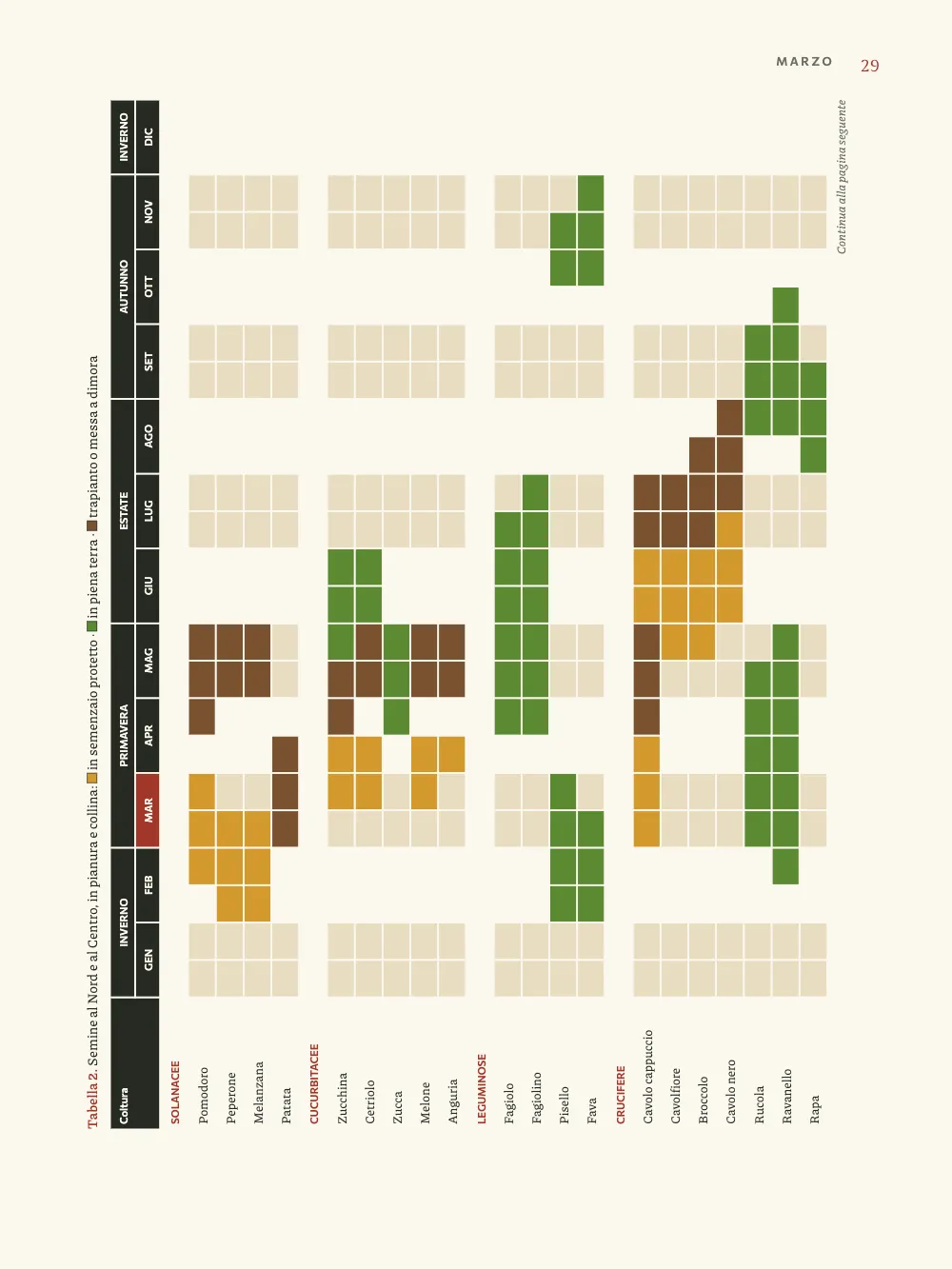

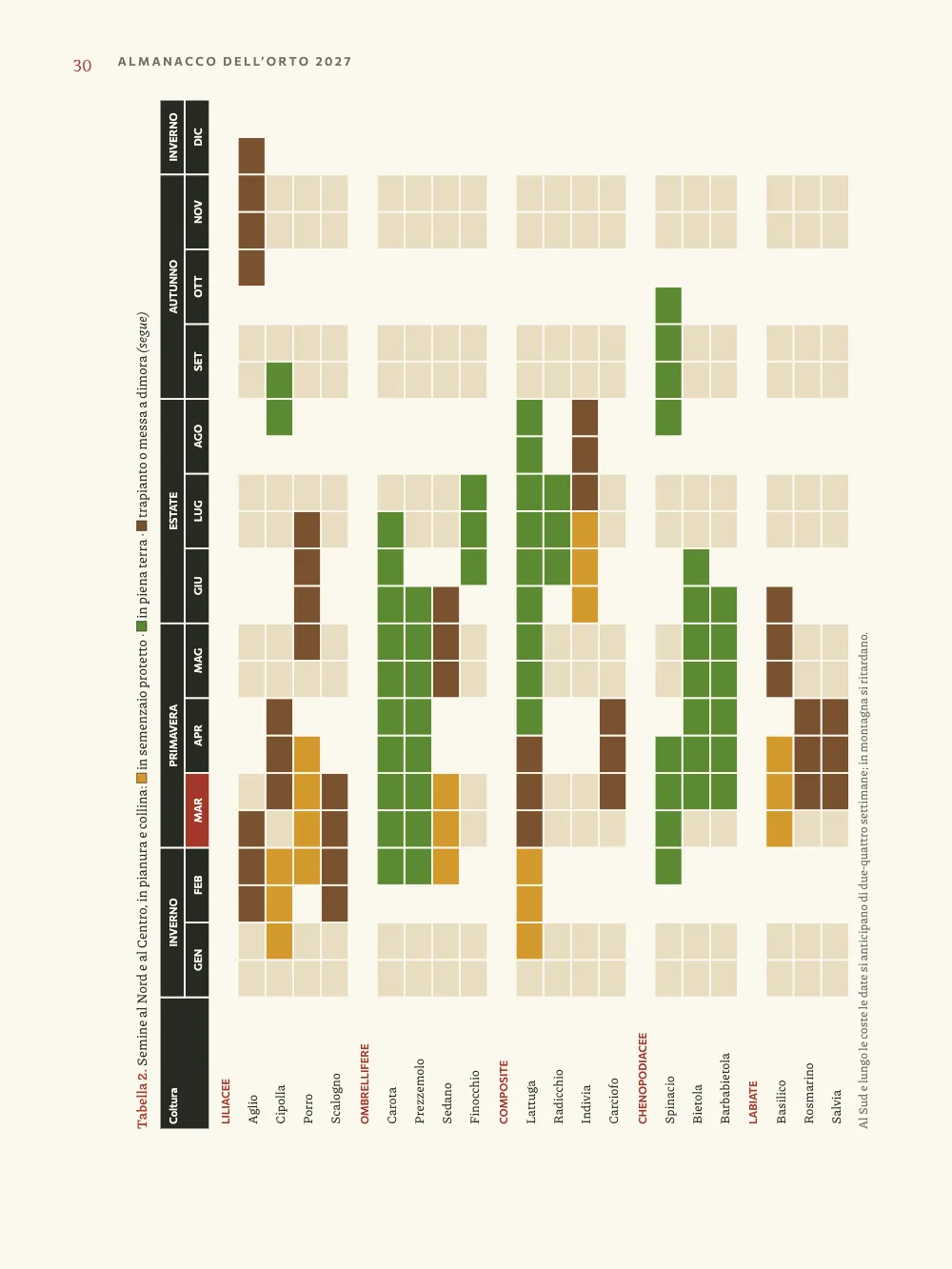

A crops × fortnights chart, turned to landscape on pages of its own

Ingredients

Type
Piazzolla, Gilda Display, Commissioner (SIL OFL 1.1)
Assets
  • campo-1680.jpg
  • The opener’s field of seedlings in March, a watercolour (Generated With Diffusion Models, original)
  • The moon’s quarters and the ten crops, drawn in code in the page’s palette (Ignacio Ferro, CC BY 4.0)

Method

#1 · Turn the chart and let it run on

The code is the short answer above. rotate: 'ccw' makes the table a page-span float on pages of its own (Placement), with its head towards the left edge of the page, and it sits against the spine on both the recto and the verso. It is laid out along the height of the text area, 227 of its 237 mm: the 47 whole 14 pt grid lines that fit, less one line for the float gap. Its rows stack across the 176 mm width, and when they outrun it the table is cut between two rows and goes on over the page under its two head rows and its caption, which ends in (segue) (Tables taller than the page). Only a float can turn: at position: 'here' the rotation is ignored, and the table would be cut upright, between rows, where its column ends. The head is merged three ways: Coltura down both head rows, each season over its months, and each month over its two fortnights.

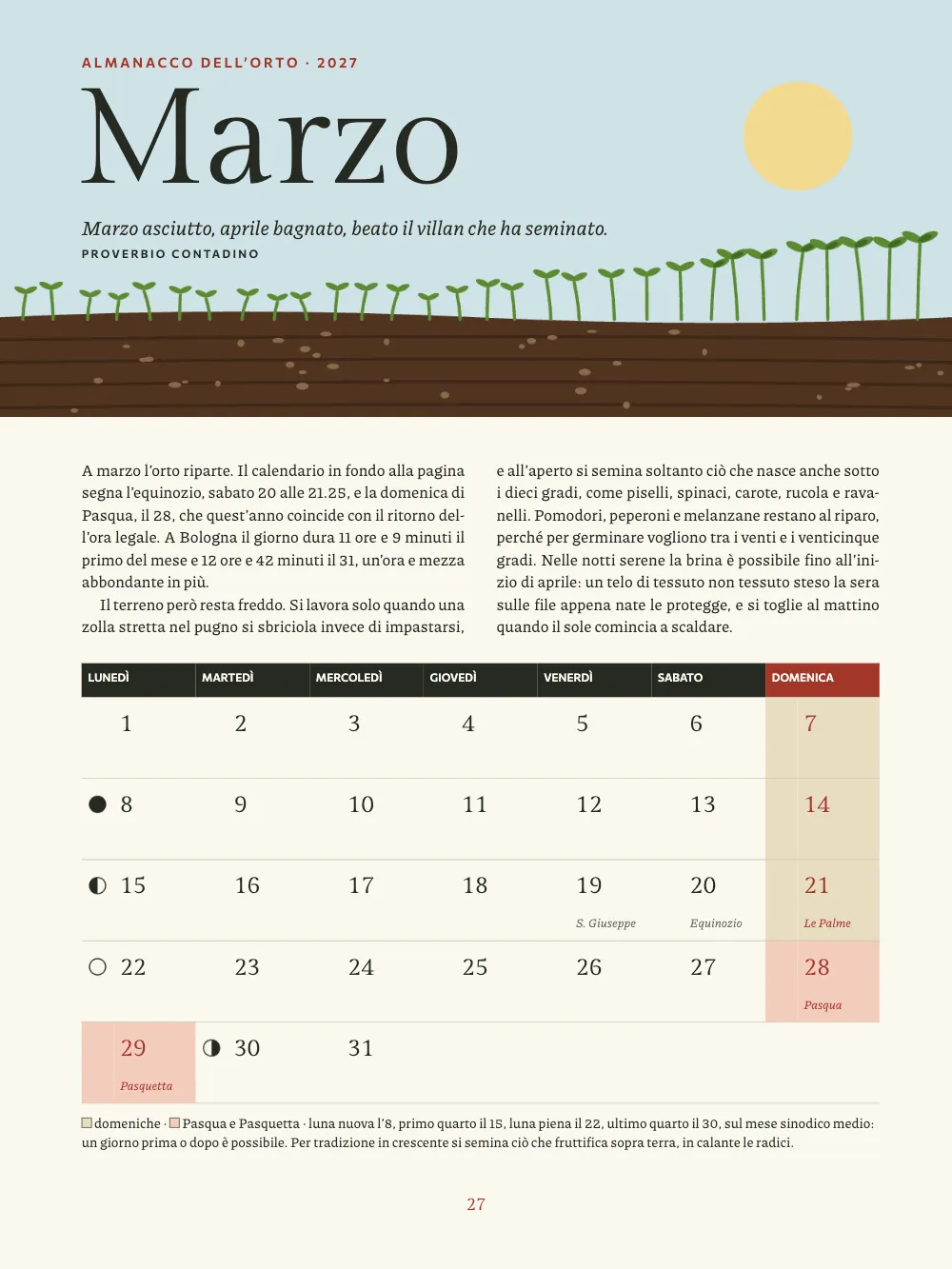

#2 · A calendar computed from dates

script.js · lines 71–110in full code
const [YEAR, MONTH, DAY] = [2027, 3, 24 * 60 * 60 * 1000]; // DAY in ms
const epochDay = (m, d) => Date.UTC(YEAR, m - 1, d) / DAY; // 1 January 1970 was a Thursday
const weekday = (d) => (epochDay(MONTH, d) + 3) % 7; // 0 is Monday: Italian weeks start there
function easter(y) { // the Gregorian computus (Meeus): [month, day]
  const a = y % 19, b = Math.floor(y / 100), c = y % 100, d = Math.floor(b / 4);
  const g = Math.floor((8 * b + 13) / 25), h = (19 * a + b - d - g + 15) % 30;
  const i = Math.floor(c / 4), k = c % 4, l = (32 + 2 * (b % 4) + 2 * i - h - k) % 7;
  const n = h + l - 7 * Math.floor((a + 11 * h + 22 * l) / 451) + 114;
  return [Math.floor(n / 31), (n % 31) + 1];
}
// The moon's age: mean synodic months since the new moon of 6 January 2000 at 18.14 UT.
const [SYNODIC, NEW_MOON] = [29.530588853, Date.UTC(2000, 0, 6, 18, 14) / DAY];
const quarter = (day) => Math.floor((((day - NEW_MOON) % SYNODIC) / SYNODIC) * 4); // 0–3
const PHASES = ['luna-nuova', 'primo-quarto', 'luna-piena', 'ultimo-quarto'];
const JOINER = '\u2060'; // a word joiner: the second line of a day without a note
const DAYS = ['LUNEDÌ', 'MARTEDÌ', 'MERCOLEDÌ', 'GIOVEDÌ', 'VENERDÌ', 'SABATO', 'DOMENICA'];
function calendarTable() { // the grid, and the quarters it draws, listed for the caption
  const e = epochDay(...easter(YEAR)) - epochDay(MONTH, 0); // Easter as a day of MONTH: 28 in 2027
  const feasts = { [e - 7]: 'Le Palme', [e]: 'Pasqua', [e + 1]: 'Pasquetta' };
  const notes = { 19: 'S. Giuseppe', 20: 'Equinozio' }; // March 2027's, typed by hand
  const first = weekday(1), days = epochDay(MONTH + 1, 1) - epochDay(MONTH, 1), moons = [];
  const week = (names, isHeader) => names.flatMap((content) => [content, '']) // a day: moon, date
    .map((content) => ({ content, isHeader }));
  let m = { headerRowCount: 1, columnWidths: Array(7).fill([7, 18]).flat(), rows: [week(DAYS, true),
    ...Array.from({ length: Math.ceil((first + days) / 7) }, () => week(Array(7).fill('')))] };
  for (let d = 1; d <= days; d++) {
    const r = 1 + Math.floor((first + d - 1) / 7), c = 2 * weekday(d), sunday = c === 12;
    // Sundays and feasts print in red. Every day has a second line, so all weeks are as tall.
    const note = feasts[d] ? chip(feasts[d], 'festa') : notes[d] ? chip(notes[d], 'nota') : JOINER;
    m = setCellContent(m, at(r, c + 1), `${sunday || feasts[d] ? chip(d, 'rosso') : d}\n${note}`);
    const fill = d === e || d === e + 1 ? 'blush' : sunday ? 'cream' : null;
    if (fill) for (const k of [c, c + 1]) m = setCellBackground(m, at(r, k), col(fill));
    const midnight = epochDay(MONTH, d) - 1 / 24, q = quarter(midnight + 1); // 00.00 CET
    if (q === quarter(midnight)) continue;
    m = setCellImage(m, at(r, c), { resourceId: PHASES[q] }); // a quarter begins today
    moons.push(`${PHASES[q].replace('-', ' ')} ${[1, 8, 11].includes(d) ? 'l’' : 'il '}${d}`);
  }
  for (let i = 0; i < 7; i++) m = mergeCells(m, span(0, 2 * i, 0, 2 * i + 1)); // one head a day
  return { model: setCellBackground(m, at(0, 12), col('red')), moons: moons.join(', ') };
}

Day numbers from Date.UTC give every date its weekday, and the grid starts on Monday 1 March and runs to five weeks. Easter comes from the computus and the moon's quarters from the mean synodic month. Computed that way, a quarter can fall a day early or late, as the caption warns. The loop that draws each moon also writes its date into the caption. A cell's picture always sits above its text, which is why each day takes two columns, the moon's and the date's: a moon in the date's own cell would push the date down on four days only. Sundays and feasts are red through a chip style that changes only the colour, and the notes are chips at half the size. A day without a note gets a word joiner (U+2060) as its second line, which keeps the five weeks the same height.

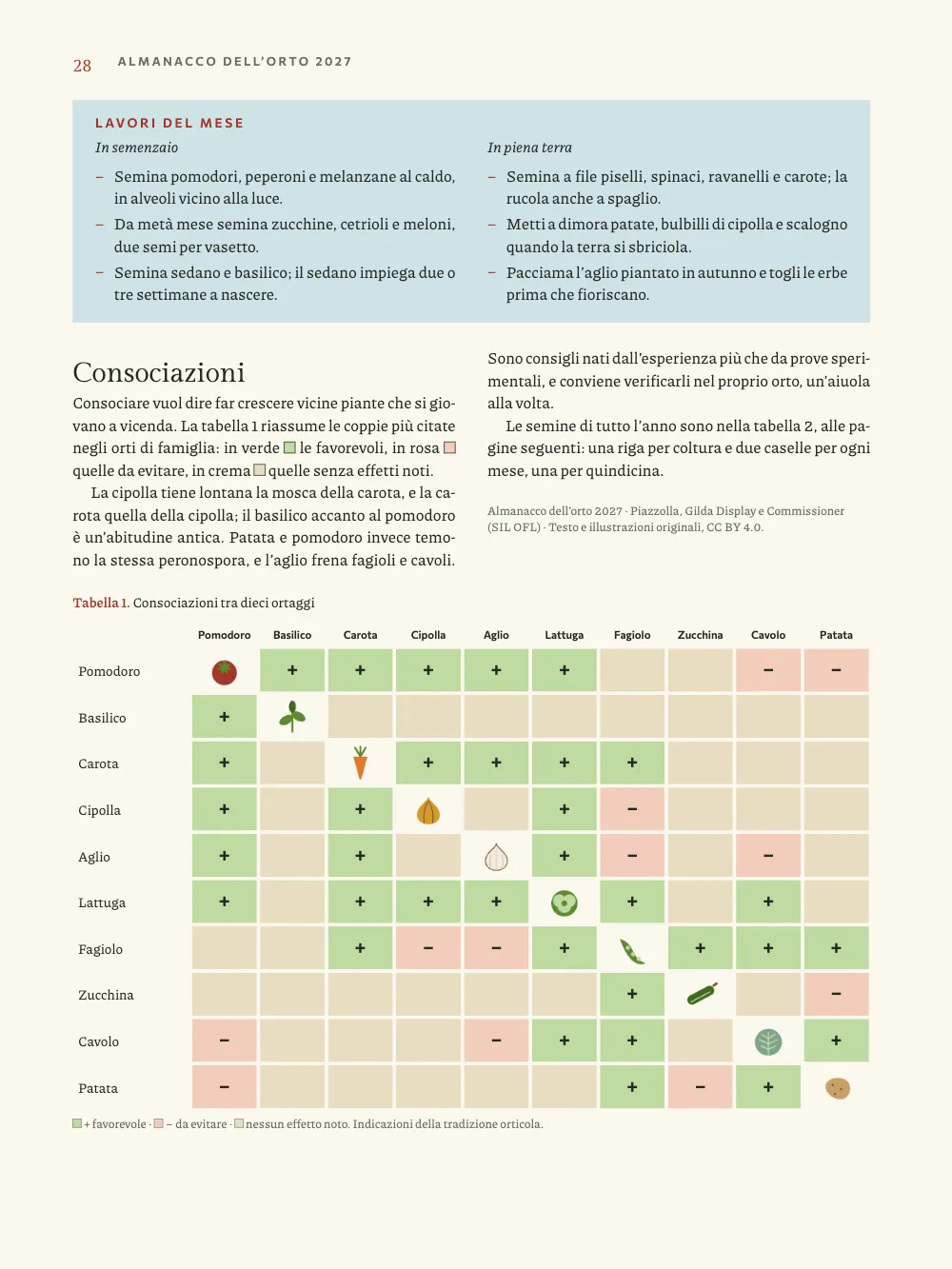

#3 · Colour the matrix from pasted symbols

script.js · lines 114–130in full code
const FILLS = { '+': 'leaf', '−': 'blush', '': 'cream' }; // good, bad, no known effect
function companionTable(tsv) {
  let m = { ...parseTSV(tsv, { headerRows: 1 }), columnWidths: [26, ...Array(10).fill(15)] };
  for (let r = 1; r < m.rows.length; r++) {
    m = setAlignment(m, at(r, 0), 'left', 'middle');
    for (let c = 1; c < m.rows[r].length; c++) {
      const symbol = m.rows[r][c].content; // + and − stay printed, for greyscale copies
      m = setCellContent(m, at(r, c), symbol && symbol !== '=' ? chip(symbol, 'segno') : '');
      m = symbol === '=' // the diagonal pairs a crop with itself: its picture instead
        ? setCellImage(m, at(r, c), { resourceId: `veg-${r}`, width: 0.62 })
        : setCellBackground(m, at(r, c), col(FILLS[symbol]));
      m = setAlignment(m, at(r, c), 'center', 'middle');
    }
  }
  for (let c = 1; c <= 10; c++) m = setAlignment(m, at(0, c), 'center');
  return m;
}

The pairs are typed as TSV, one symbol per cell. parseTSV(tsv, { headerRows: 1 }) makes the row of crop names the head. The columnWidths weights are millimetres of the 176 mm measure: 26 for the names, 15 for each crop. Each symbol names a palette entry, which setCellBackground lays in as the cell's fill; the + and − are printed as well, in a chip at 1.4 em, so the matrix still reads in a greyscale copy. The diagonal pairs a crop with itself, and there setCellImage puts the crop's drawing, at 62 % of the cell's inner width.

#4 · Key the colours with swatches

script.js · lines 396–420in full code
const resourceTypes = [ // the almanac's own two: tables numbered through, a bare calendar
  { id: 'table', name: 'Tabella', shortLabel: 'Tab.', captionPrefix: 'Tabella',
    captionStyle: { position: 'above' } },
  { id: 'calendar', name: 'Calendario', shortLabel: 'Cal.', captionPrefix: '' }, // no label
].map((t) => ({ numberingTemplate: '{n}', resetOn: 'never', counterFormat: 'decimal', ...t }));
const table = (id, typeId, caption, model, styleId, extra) => ({ id, typeId, kind: 'table',
  caption, table: { model, styleId }, createdAt: 0, updatedAt: 0, ...extra });
const foot = { position: 'bottom', span: 'page' }; // across both columns, at the page's foot
const calendar = calendarTable(); // its key names the quarters the grid draws
const resources = [...pictures, // never cited: the opener and the cells draw them by id
  table('calendario', 'calendar', ':swatch{color="cream"} domeniche · :swatch{color="blush"} '
    + `Pasqua e Pasquetta · ${calendar.moons}, sul mese sinodico medio: un giorno prima o dopo `
    + 'è possibile. Per tradizione in crescente si semina ciò che fruttifica sopra terra, in '
    + 'calante le radici.', calendar.model, 'calendario', { placement: foot }),
  table('consociazioni', 'table', 'Consociazioni tra dieci ortaggi', companionTable(companions),
    'matrice', { placement: foot, note: ':swatch{color="leaf"} + favorevole · '
      + ':swatch{color="blush"} − da evitare · :swatch{color="cream"} nessun effetto noto. '
      + 'Indicazioni della tradizione orticola.' }),
  // Each part of a split table repeats its caption, so the key goes there; the note ends the last.
  table('semine', 'table', 'Semine al Nord e al Centro, in pianura e collina: '
    + ':swatch{color="ochre"} in semenzaio protetto · :swatch{color="green"} in piena terra · '
    + ':swatch{color="brown"} trapianto o messa a dimora', sowingChart(sowing), 'semine', {
    placement: chartPlacement, note: 'Al Sud e lungo le coste le date si anticipano di '
      + 'due-quattro settimane; in montagna si ritardano.' }),
];

:swatch{color="leaf"} sets a square three quarters of the type size, filled with a palette entry and outlined in the text colour; these pages use it in running text, in two captions and in a note. The chart's key goes in its caption, because every part of a split table repeats the caption and the note is set under the last part only. The calendar is a resource type of its own with an empty caption prefix, and its caption opens on the key instead of a Tabella label. position: 'bottom' with span: 'page' sets the calendar and the matrix across both columns at the foot of their pages. Page 28 is the last page of text. On a chapter’s closing page a page-wide float moves up to one line under the text, which is why the matrix ends 10 mm above the bottom margin; layout.hugClosingFloats: false would leave it at the foot.

#5 · A house style and a variant per table

script.js · lines 134–145in full code
const tableStyle = { rules: 'horizontal', borderColor: col('rule'), borderWidth: pt(0.5),
  headerBackground: col('ink'), headerColor: col('paper'), headerFontFamily: LABEL,
  headerFontSize: pt(7), bodyFontSize: pt(8.5), cellPadding: mm(1.2),
  // An Italian document's split table says '(segue)' and 'Continua'; this spells the second out.
  continuesMarker: 'Continua alla pagina seguente' };
const tableStyles = [
  { id: 'calendario', bodyFontFamily: DISPLAY, bodyFontSize: pt(15), cellPadding: mm(1.4) },
  { id: 'matrice', rules: 'grid', borderColor: col('paper'), borderWidth: pt(2), // tiles
    headerBackgroundEnabled: false, headerColor: col('ink'), headerFontSize: pt(6.8) },
  { id: 'semine', rules: 'grid', borderColor: col('paper'), borderWidth: pt(1),
    bodyFontSize: pt(7.8), headerFontSize: pt(6.6), cellPadding: mm(1.1) },
];

tableStyle sets the house style: an ink head with paper-coloured labels in Commissioner, hairlines between the rows, and the line that ends each part of a split table. An Italian document closes a part with Continua and adds (segue) to the next part’s caption; the almanac spells the first one out, Continua alla pagina seguente. Each named style states only what its table changes. The calendar sets its days in Gilda Display at 15 pt; the matrix drops the head's fill; the matrix and the chart draw grid rules in the paper's colour, 2 pt and 1 pt wide, which cut their fills into tiles.

#6 · The month opens on a painting

script.js · lines 149–169in full code
const ART_H = 92, AIR = 5, BEARING = 1.5; // mm: painting, air under it, side bearing of the 84 pt M
const pin = (to, edge, x, y, size) => ({ anchor: { to, edge }, offset: { x: mm(x), y: mm(y) },
  ...(size && { size }) }); // to: 'page', or '#id' of an element listed before
const text = (id, content, family, size, color, placement, extra) => ({ kind: 'text', id,
  content, fontFamily: family, fontSize: pt(size), color: col(color), placement,
  align: placement.anchor.edge.endsWith('right') ? 'right' : 'left',
  overflow: 'wrap', ...extra }); // a long line takes a second one, in the heads too
const caps = (s) => ({ fontWeight: 600, textTransform: 'uppercase', letterSpacing: pt(s / 5) });
// minHeight: a floor under what the painting reserves, the first grid line AIR or more below it.
const OPENER_H = pt(LEAD * Math.ceil((ART_H + AIR - PAGE.top) / (LEAD * 25.4 / 72)));
const opener = { enabled: true, minHeight: OPENER_H, slot: { elements: [
  { kind: 'image', id: 'art', resourceId: 'campo',
    placement: pin('page', 'top-left', 0, 0, { width: mm(PAGE.w), height: mm(ART_H) }) },
  text('kicker', '{attr.kicker}', LABEL, 8.5, 'red', pin('page', 'top-left', PAGE.inner, 12),
    caps(8.5)), // page 1 is a recto: its inner margin is on the left
  text('title', '{titleText}', DISPLAY, 84, 'ink', pin('#kicker', 'below', -BEARING, 1),
    { lineHeight: 1 }), // a multiple of the size: set solid
  text('proverb', '{attr.proverb}', TEXT, 12.5, 'ink',
    pin('#title', 'below', BEARING, 1, { width: mm(140) }), { italic: true, lineHeight: 1.3 }),
  text('source', '{attr.source}', LABEL, 7, 'ink', pin('#proverb', 'below', 0, 1.6), caps(7)),
] } };

The first-level heading is drawn from a slot of elements. The watercolour is an image element at the head of the page, and the kicker, the proverb and its source come from the heading's attributes. The opener reserves down to the painting’s foot, and minHeight is a floor set a little lower: 92 mm of painting plus 5 mm of air, less the 22 mm top margin, is 75 mm, which rounds up to 16 lines of 14 pt (79 mm). The first line of text sits 101 mm from the top of the page, 9 mm under the soil. The title moves 1.5 mm left, the side bearing of Gilda Display's M at 84 pt, and the M's serif lines up with the kicker; the proverb moves back by the same amount.

The whole recipe

Sandbox
// ═══ Postext Cookbook · Nº 035 · Garden almanac: calendar grid and landscape chart ═════
// https://postext.dev/en/cookbook/garden-almanac
// Code: MIT · Text: original, Italian (CC BY 4.0) · Field: diffusion models · Icons: CC BY 4.0
// Fonts: Piazzolla, Gilda Display, Commissioner (SIL OFL 1.1) · Needs postext ≥ 1.57.0
import {
  buildDocumentWithFonts, prepareFonts, renderPageToCanvas, registerResourceImage, parseTSV,
  mergeCells, setCellContent, setCellBackground, setCellImage, setAlignment,
} from 'https://esm.sh/postext';

const LANG = 'en'; // @lang: the language of the sample document ('en' | 'es')
const RECIPE = 'garden-almanac';

// ─── 1 · Design ─────────────────────────────────────────────────────────────
const palette = { ink: '#262a22', paper: '#fbf8ef', // a green-black on unbleached paper
  red: '#a2372a', // Sundays and feasts, as almanacs print them; kickers and labels
  green: '#5b8a32', ochre: '#d39a2e', brown: '#7a5230', // sown outdoors, in a seedbed, planted
  leaf: '#bfdaa2', blush: '#f3cdbd', cream: '#e9ddc1', // good pairs, bad pairs, neutral pairs
  sky: '#cfe2e6', rule: '#cfc6b2', muted: '#6b6e63' }; // sky and work box; hairlines; notes
// col() links a colour to its palette entry; the hex is the value the entry holds.
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = Object.entries({ ...palette, 'main-color': palette.red }) // the defaults' id
  .map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));
const [TEXT, DISPLAY, LABEL] = ['Piazzolla', 'Gilda Display', 'Commissioner'];
const PAGE = { w: 210, h: 280, top: 22, bottom: 21, inner: 18, outer: 16 }; // mm, mirrored
const LEAD = 14; // pt: the body's leading and baseline grid
const at = (row, column) => ({ row, col: column });
const span = (r0, c0, r1, c1) => ({ start: at(r0, c0), end: at(r1, c1) });
const chip = (text, style) => `:chip[${text}]{style="${style}"}`;

// #region answer: a crops × fortnights chart, turned to landscape on pages of its own
// The chart's `placement` (#region resources): a quarter turn makes it a page-span float on
// pages of its own, flush to the spine; rows past the page's width go on under a repeated head.
const chartPlacement = { rotate: 'ccw' }; // a float: 'here' ignores the turn
const MONTHS = ['gen', 'feb', 'mar', 'apr', 'mag', 'giu', 'lug', 'ago', 'set', 'ott', 'nov', 'dic'];
const SEASONS = [['INVERNO', 2], ['PRIMAVERA', 3], ['ESTATE', 3], ['AUTUNNO', 3], ['INVERNO', 1]];
const STATES = { S: 'ochre', C: 'green', T: 'brown' }; // seedbed, sown outdoors, planted out
const fortnight = (key) => MONTHS.indexOf(key.slice(0, 3)) * 2 + Number(key[3]); // 'mar2' → 6
function sowingChart(data) { // 'Pomodoro: S feb2–mar2, T apr2–mag2'; a bare line is a family
  const row = (first, isHeader = false) => [first, ...Array(24).fill('')]
    .map((content) => ({ content, isHeader }));
  let m = { headerRowCount: 2, columnWidths: [30, ...Array(24).fill(8.5)], // mm, as weights
    rows: [row('', true), row('', true)] };
  for (const line of data.trim().split('\n')) {
    const [name, plan] = line.split(': ');
    const r = m.rows.push(row(plan ? name : chip(name.toUpperCase(), 'famiglia'))) - 1;
    if (!plan) { m = mergeCells(m, span(r, 0, r, 24)); continue; } // a family heads its crops
    for (let f = 1; f <= 24; f++) { // every other month tinted, so a column reads down the page
      if ((f - 1) % 4 < 2) m = setCellBackground(m, at(r, f), col('cream'));

The composed script.js runs as it is: paste it into any page’s module script, or open the recipe on CodePen. Recipe folder on GitHub ↗ (opens in a new tab)

Variations

#Turn the chart clockwise

The head then faces the right edge of the page, and the reader turns the book the other way.

-const chartPlacement = { rotate: 'ccw' }; // a float: 'here' ignores the turn
+const chartPlacement = { rotate: 'cw' }; // a float: 'here' ignores the turn

Pitfalls

Pitfall

Merged cells need hiddenBy placeholders: use mergeCells

Cells are laid out by their position in the row array, so a merged cell needs placeholder cells marked hiddenBy where it spreads; leaving them out, as HTML does, shifts every later column. Build merges with mergeCells. Since postext 1.5 a table whose grid is irregular is reported in doc.contentWarnings as raggedTableGrid, and parseTSV(text, { headerRows }) marks the head rows. Tables from data →

  • A picture in a table cell is always drawn above the cell's text and aligned like it. To set an icon beside a number, give the icon a column of its own, as the calendar does with the moon.
  • The note under a split table appears on its last part only, so a key that every part needs belongs in the caption.

Credits

Text
  • The Italian text of the March pages, with the table captions, the notes and the colophon, written for this recipe · Ignacio Ferro · CC BY 4.0
  • The proverb “Marzo asciutto, aprile bagnato, beato il villan che ha seminato”, a traditional Italian saying · Proverbio contadino · public domain
Images
  • The opener’s field of seedlings in March, a watercolour · Generated With Diffusion Models · original
  • The moon’s quarters and the ten crops, drawn in code in the page’s palette · Ignacio Ferro · CC BY 4.0
Fonts
Piazzolla (SIL OFL 1.1) · Gilda Display (SIL OFL 1.1) · Commissioner (SIL OFL 1.1)
Sandbox
