In short
A square leaflet for a music festival, shown in four colour schemes. It shows how to change every colour in the document at once by picking a new set of colours.
What you'll build
The programme of Riverside Music Week, a fictional festival in a river town, printed as a 200 mm square leaflet. The front page has a colour field across its top half, with the title in Syne 800 at 46 pt and a waveform of pale rounded bars; below it, two ragged columns list the week day by day, each event with a bold time and a price chip. The back maps the week as a grid of coloured tiles under a caption bar, then lists Tuesday to Friday and ends with a tickets box under a stripe and the colophon. Above the pages the pen shows four proofs, in red, teal, violet and sand. Their colours come from seven palette entries named by role, plus main-color set to the band colour. Click a proof and the whole document is built again in that palette.
This recipe answers
- How do I stop headings, bold words and bullets from coming out blue?
- How do I colour key terms (bold or italic) in the body or inside boxes?
- How do I add colour-key swatches to text, captions or table notes?
The short answer
// col(id) links a colour to a palette entry. The link decides what is printed, in text, lists,
// boxes, chips, captions, table fills, swatches, design slots and references alike; the hex
// beside it (the house red's) only fills the field a colour must have.
const col = (id) => ({ hex: HOUSE[id], model: 'hex', paletteId: id });
const entries = (hexes) => Object.entries(hexes).map(([id, hex]) => ({ id, name: id,
value: { hex, model: 'hex' } })); // the shape of config.colorPalette
// A colourway is a palette. retint() writes it into the one config; the next build sees the
// change and sets the whole programme in the new colours.
function retint(way) {
const palette = { ...NEUTRALS, ...COLOURWAYS[way] };
config.colorPalette = entries({ ...palette, 'main-color': palette.band }); // defaults: band
return config;
}
Every colour is a link to a palette entry; retint() swaps the palette
Ingredients
- Features
- Semantic colour paletteBold, italic and their coloursColour swatchesInline chipsCell fillsCaption styleDesigned openersFull-width chapter bandText, rules and boxes in page designsBullet lists and checklistsCallout boxesRunning heads and foliosHeads by page roleHeading attributesFigures and tables as resourcesPages on a canvas
- Also uses
- Citations that place figuresFigure and Table in your languageParagraph stylesCustom resource typesLine breaks in titles
- Type
- Syne, Plus Jakarta Sans (SIL OFL 1.1)
- Assets
- None: every picture is drawn in code
Method
#1 · Name colours by the job they do
const NEUTRALS = { ink: '#1d1d1f', muted: '#5f5f66', paper: '#ffffff' };
const COLOURWAYS = { // band: colour fields · onBand: type on them · deep: accent type on paper
red: { band: '#d7263d', onBand: '#ffffff', deep: '#b3122a', tint: '#fcdfe3' },
teal: { band: '#2a9d8f', onBand: '#1d1d1f', deep: '#17695f', tint: '#d8eeeb' },
violet: { band: '#6a4c93', onBand: '#ffffff', deep: '#5b3f86', tint: '#e7dff0' },
sand: { band: '#f4a261', onBand: '#1d1d1f', deep: '#a14a16', tint: '#fde4cf' },
}; // white on teal is 3.3:1 and on sand 2.1:1, so those two set their band type in ink
const HOUSE = { ...NEUTRALS, ...COLOURWAYS.red }; // the house edition: red
band fills the colour fields, onBand colours the type set on them, deep is the accent for type on white paper and tint the light fill. Each colourway sets those four and shares the three neutrals. Against white, the teal band measures 3.3:1 and the sand band 2.1:1, too low for white type on the band or for band-coloured type on paper. Those two palettes set onBand in ink, and all four set bold text and headings in deep, a darker shade that measures between 5.99:1 (sand) and 8.40:1 (violet) on white.
#2 · Link everything the engine would print blue
const bodyText = { fontFamily: SANS, fontSize: pt(BODY), lineHeight: pt(LEAD),
color: col('ink'), italicColor: col('ink'), // bold: the times, key terms, boxes (inherited)
boldColor: col('deep'), referenceColor: col('deep'), textAlign: 'left', firstLineIndent: pt(0) };
const headings = { fontFamily: DISPLAY, color: col('deep'), levels: [
// The programme opens on a recto.
{ level: 1, span: 'page', breakBefore: { enabled: true, parity: 'odd' },
marginTop: pt(0), marginBottom: pt(0), advancedDesign: opener },
{ level: 2, fontSize: pt(12.5), lineHeight: lines(1), marginTop: lines(1), marginBottom: pt(0) },
] };
const unorderedLists = { color: col('band'), indent: mm(3.6), gap: mm(1.4),
marginTop: pt(0), marginBottom: pt(0) };
const chip = { fontSize: pt(7.5), bold: true, borderWidth: pt(0), borderRadius: mm(1.6),
paddingX: mm(1.3), paddingY: pt(0.9), gap: mm(1) };
const chipStyles = [ // band = a ticket, tint = free: the same code as the grid overleaf
{ id: 'ticket', background: col('band'), color: col('onBand'), ...chip },
{ id: 'free', background: col('tint'), color: col('deep'), ...chip,
borderWidth: pt(0.6), borderColor: col('band') }, // the outline keeps it off the white
];
const corner = (edge, y) => ({ anchor: { to: 'page', edge }, offset: { x: mm(OUTER), y: mm(y) } });
const furniture = (id, content, edge, y, style) => ({ elements: [{ kind: 'text', id, content,
parity: 'even', pages: 'body', overflow: 'wrap', placement: corner(edge, y), ...style }] });
const header = furniture('head', '{title} · {subtitle}', 'top-left', 12, // page 2's head
{ ...caps(7.5), color: col('deep') });
const footer = furniture('folio', '{pageNumber}', 'bottom-left', -12, { fontFamily: SANS,
fontSize: pt(8), fontWeight: 700, color: col('onBand'), box: { backgroundColor: col('band'),
borderRadius: mm(2.4), padding: { top: mm(0.9), right: mm(2.4), bottom: mm(0.9),
left: mm(2.4) } } });
The engine's blue is a palette entry, main-color (#295AA3), and its defaults point headings, bold, italic, references, bullets and the running head at it. Here each of those carries a palette id: times and key terms in bold deep, italics in ink, bullets in band, and on page 2 a running head in deep and the folio in onBand on a band pill. retint() also points main-color at the band; since this config sets every colour, that changes nothing on these pages, but a style added later without a colour takes the band instead of blue. The tickets box sets no bold colour of its own, so it inherits bodyText.boldColor with its palette id, and its bold changes with the colourway.
#3 · Draw the artwork with design boxes
const text = (id, content, x, y, width, style) => ({ kind: 'text', id, content, align: 'left',
overflow: 'wrap', color: col('onBand'), placement: { anchor: { to: 'page', edge: 'top-left' },
offset: { x: mm(x), y: mm(y) }, size: { width: mm(width) } }, ...style });
const opener = { enabled: true,
minHeight: lines(18), // 85.1 mm: text 7 mm under the band (2.4 mm with the band box alone)
slot: { elements: [
{ kind: 'box', id: 'band', style: { backgroundColor: col('band') },
placement: { anchor: { to: 'bleed', edge: 'top-left' },
size: { width: 'fill', height: mm(BAND) } } },
...waveform(), // boxes filled with col('tint'): one more link the palette decides
text('kicker', '{attr.kicker}', INNER, 14, 150, caps(8)),
text('title', '{titleText}', INNER, 20, TRIM - INNER - OUTER, { fontFamily: DISPLAY,
fontSize: pt(46), fontWeight: 800, lineHeight: 0.92 }),
text('standfirst', '{attr.standfirst}', INNER, 71, 92, { fontFamily: SANS, fontSize: pt(10),
lineHeight: 1.36 }),
] },
};

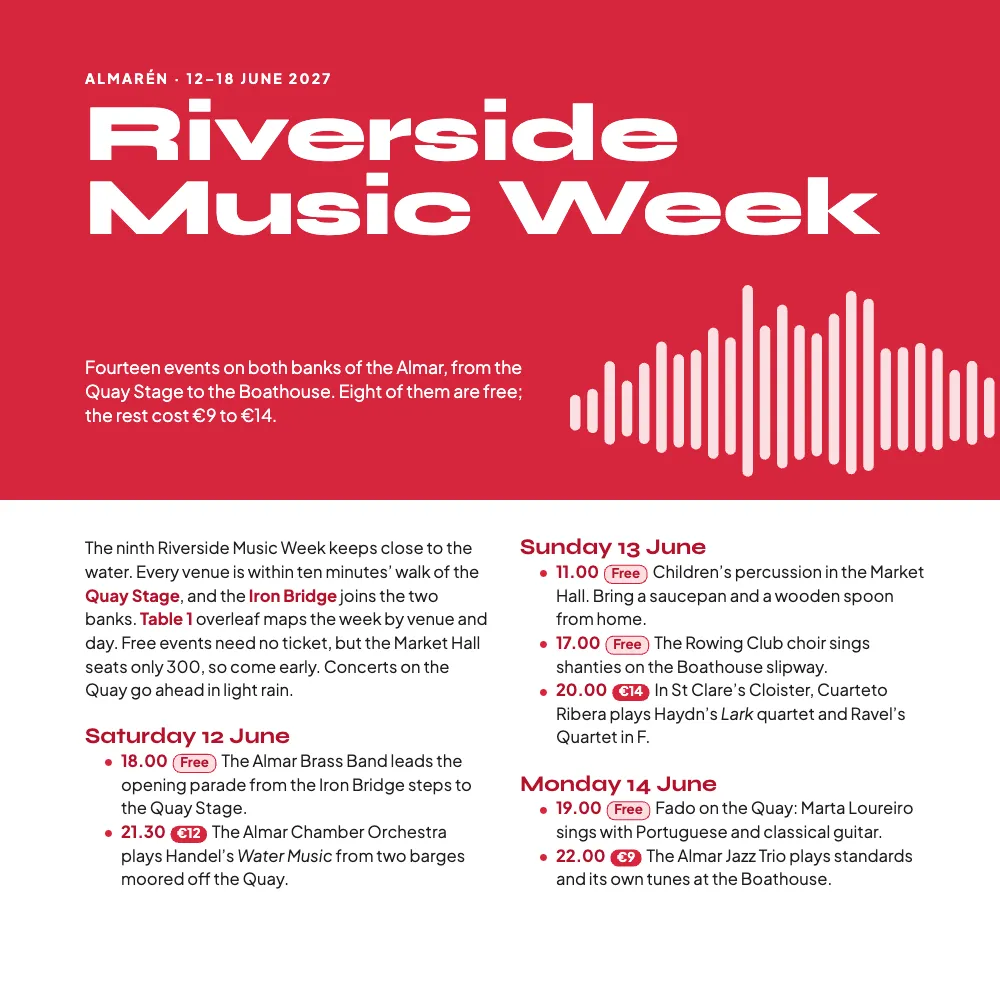

The opener is a design slot holding a box bled off the top edge, 29 rounded bars for the waveform and three text elements: the heading's own text as the title, and the kicker and standfirst from its attributes. The bars are boxes rather than an SVG, so their fill is one more tint link that follows the palette; an SVG would have to be redrawn and registered again for every colourway. On its own, the band box would start the text on the grid line 2.4 mm under the band; minHeight, 18 lines or 85.1 mm below the top margin, reserves more and moves the first line to 7 mm under it.
#4 · Let the palette fill the table
const DAYS = t({ en: ['Sat 12', 'Sun 13', 'Mon 14', 'Tue 15', 'Wed 16', 'Thu 17', 'Fri 18'],
es: ['Sáb 12', 'Dom 13', 'Lun 14', 'Mar 15', 'Mié 16', 'Jue 17', 'Vie 18'] });
const WEEK = [ // t: a ticketed concert, f: a free event, one mark a day from Saturday
[t({ en: 'Quay Stage', es: 'Escenario del Muelle' }), 't.f.fft'],
[t({ en: 'Iron Bridge steps', es: 'Escalinata del Puente' }), 'f.....f'],
[t({ en: 'Market Hall', es: 'Mercado de Abastos' }), '.f...f.'],
[t({ en: 'St Clare’s Cloister', es: 'Claustro de Santa Clara' }), '.t.....'],
[t({ en: 'Tannery Yard', es: 'Patio de la Curtiduría' }), '...t...'],
[t({ en: 'Boathouse', es: 'Casa de las Barcas' }), '.ft..t.'],
];
const fill = { t: col('band'), f: col('tint') }; // cell fills are palette links too
const resources = [{ id: 'week', typeId: 'table', kind: 'table', createdAt: 0, updatedAt: 0,
placement: { position: 'top', span: 'page' }, // cited on page 1, it heads page 2
caption: t({ en: 'The week at a glance', es: 'La semana de un vistazo' }),
note: t({ en: ':swatch{color="band"} ticketed concert :swatch{color="tint"} free event',
es: ':swatch{color="band"} concierto con entrada :swatch{color="tint"} acto gratuito' }),
altText: t({ en: 'A grid of six venues by seven days; filled squares mark the events.',
es: 'Una cuadrícula de seis escenarios por siete días; los cuadros rellenos son los actos.' }),
table: { model: { headerRowCount: 1, columnWidths: [2.6, 1, 1, 1, 1, 1, 1, 1], rows: [
[{ content: '', isHeader: true, background: col('paper') }, ...DAYS.map((day) => ({
content: day, isHeader: true, align: 'center' }))],
...WEEK.map(([venue, marks]) => [{ content: venue, align: 'right' }, ...[...marks].map((m) =>
(m === '.' ? { content: '' } : { content: '', background: fill[m] }))]),
] } } }];

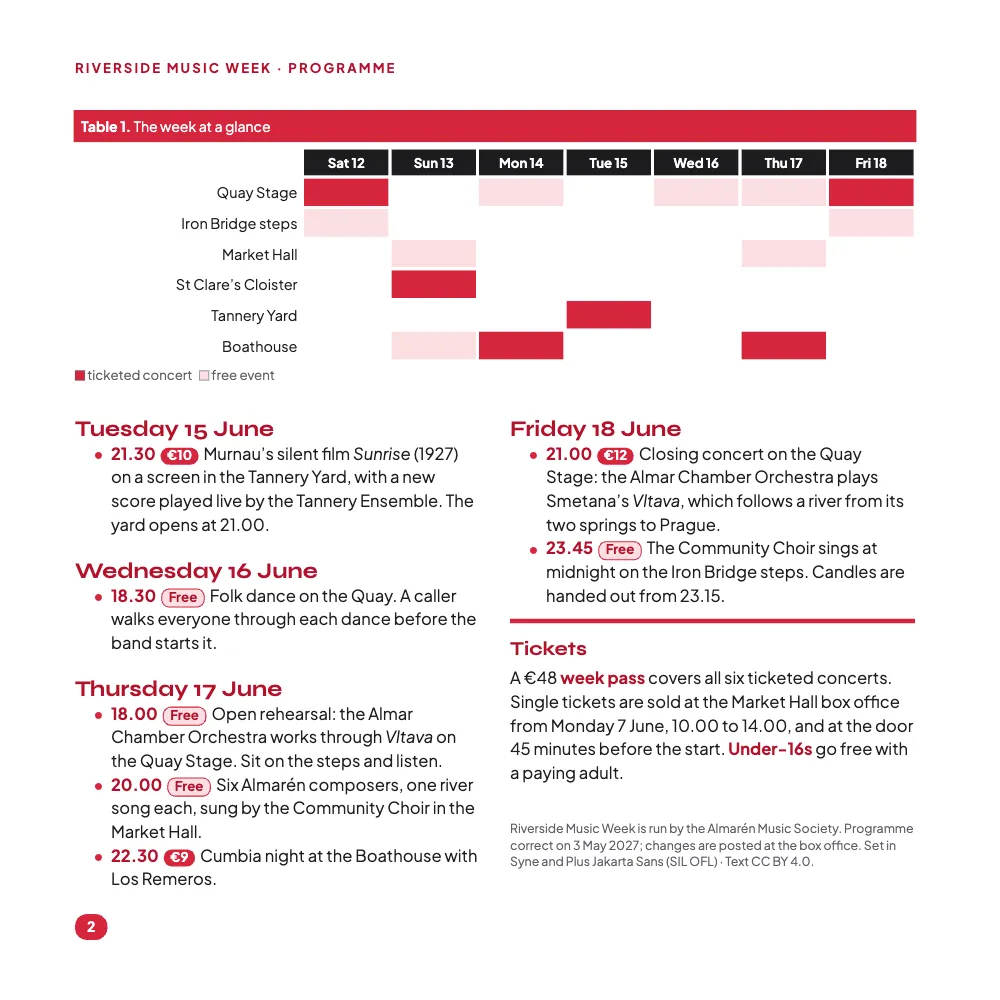

The grid is a table resource, outside the config. Its cell fills carry palette ids all the same, and the engine resolves them from the document palette when it lays out the table; the :swatch{color="band"} and :swatch{color="tint"} of the key in the table note resolve the same way. The chips in the listings use the same two ids, so a filled square, the chip beside a time and the key's swatch agree in every colourway.
#5 · Swap the palette and build again
const NAMES = t({ en: { red: 'Red', teal: 'Teal', violet: 'Violet', sand: 'Sand' },
es: { red: 'Rojo', teal: 'Verde azulado', violet: 'Violeta', sand: 'Arena' } });
document.getElementById('pages').insertAdjacentHTML('beforebegin', `<section id="editions">
<div class="desk"><header><p class="kicker">${t({ en: 'Riverside Music Week · proofs',
es: 'Música en la Ribera · pruebas' })}</p><h2>${TITLE}</h2></header><canvas id="live"
role="img"></canvas><div class="buttons" role="group"></div></div></section>`);
const paint = (canvas, doc) => renderPageToCanvas(doc.pages[0], doc, canvas,
{ scale: (canvas.clientWidth * Math.min(devicePixelRatio, 2)) / doc.pages[0].width });
const buttons = Object.keys(COLOURWAYS).map((way) => {
const button = document.querySelector('#editions .buttons')
.appendChild(Object.assign(document.createElement('button'), { type: 'button' }));
button.innerHTML = `<canvas></canvas><span>${NAMES[way]}<i>${['band', 'deep', 'tint']
.map((id) => `<b style="background:${COLOURWAYS[way][id]}"></b>`).join('')}</i></span>`;
paint(button.firstChild, docs[way]);
// The same config with another palette on every click; the fonts are loaded by now.
button.onclick = () => show(way, buildDocument({ markdown, resources }, retint(way)));
return [way, button];
});
const live = document.getElementById('live');
let shown; // the document on the live page
function show(way, doc) {
paint(live, (shown = doc));
live.ariaLabel = `${NAMES[way]}, ${t({ en: 'page 1', es: 'página 1' })}`;
for (const [id, button] of buttons) button.ariaPressed = String(id === way);
showPages(doc, { title: `${TITLE} · ${NAMES[way]}` });
}
show('red', docs.red);
new ResizeObserver(() => { // canvases are bitmaps: repaint them at the desk's new size
paint(live, shown); buttons.forEach(([way, button]) => paint(button.firstChild, docs[way]));
}).observe(live);
Each button calls retint(), which assigns the colourway's entries to colorPalette on the one config object, and builds again. The engine resolves a config once and caches the result against that object; since postext 1.25 every build first checks that the object still reads as it did then, so a change made in place is resolved again. Every link follows: the text, the lists, the chips and the caption bar, and with them the band, the waveform, the running head, the folio pill and “Table 1”. The four proofs keep their colours when the palette changes again, because each document holds the colours it was laid out with. The pen builds them with buildDocumentWithFonts; by the time a button is clicked the faces are loaded, and buildDocument is enough.
The whole recipe
// ═══ Postext Cookbook · Nº 054 · Retint a whole document from one palette ═══════════
// https://postext.dev/en/cookbook/live-palette-retint
// Code: MIT · Text: original (CC BY 4.0) · Artwork: design boxes generated in code (CC BY 4.0)
// Fonts: Syne, Plus Jakarta Sans (SIL OFL 1.1) · Needs postext ≥ 1.25.0
import {
buildDocument, buildDocumentWithFonts, renderPageToCanvas, defaultResourceTypes,
} from 'https://esm.sh/postext';
const LANG = 'en'; // @lang: the language of the sample document ('en' | 'es')
const RECIPE = 'live-palette-retint';
// ─── 1 · Design ─────────────────────────────────────────────────────────────
// #region palette: three neutrals every edition shares, four entries each colourway sets
const NEUTRALS = { ink: '#1d1d1f', muted: '#5f5f66', paper: '#ffffff' };
const COLOURWAYS = { // band: colour fields · onBand: type on them · deep: accent type on paper
red: { band: '#d7263d', onBand: '#ffffff', deep: '#b3122a', tint: '#fcdfe3' },
teal: { band: '#2a9d8f', onBand: '#1d1d1f', deep: '#17695f', tint: '#d8eeeb' },
violet: { band: '#6a4c93', onBand: '#ffffff', deep: '#5b3f86', tint: '#e7dff0' },
sand: { band: '#f4a261', onBand: '#1d1d1f', deep: '#a14a16', tint: '#fde4cf' },
}; // white on teal is 3.3:1 and on sand 2.1:1, so those two set their band type in ink
const HOUSE = { ...NEUTRALS, ...COLOURWAYS.red }; // the house edition: red
// #endregion
// #region answer: every colour is a link to a palette entry; retint() swaps the palette
// col(id) links a colour to a palette entry. The link decides what is printed, in text, lists,
// boxes, chips, captions, table fills, swatches, design slots and references alike; the hex
// beside it (the house red's) only fills the field a colour must have.
const col = (id) => ({ hex: HOUSE[id], model: 'hex', paletteId: id });
const entries = (hexes) => Object.entries(hexes).map(([id, hex]) => ({ id, name: id,
value: { hex, model: 'hex' } })); // the shape of config.colorPalette
// A colourway is a palette. retint() writes it into the one config; the next build sees the
// change and sets the whole programme in the new colours.
function retint(way) {
const palette = { ...NEUTRALS, ...COLOURWAYS[way] };
config.colorPalette = entries({ ...palette, 'main-color': palette.band }); // defaults: band
return config;
}
// #endregion
const [DISPLAY, SANS, BODY, LEAD] = ['Syne', 'Plus Jakarta Sans', 9.4, 13.4]; // pt: 33 lines
const [TRIM, TOP, BOTTOM, INNER, OUTER, GUTTER] = [200, 22, 22, 17, 15, 6]; // mm: square, mirrored
const BAND = 100; // mm, trim top to the colour field's foot ('bleed' is the trim: no cut lines)
const lines = (n) => pt(n * LEAD);
const caps = (size) => ({ fontFamily: SANS, fontSize: pt(size), fontWeight: 700,
letterSpacing: pt(size * 0.16), textTransform: 'uppercase' });
// #region opener: the colour field, a waveform of palette-linked boxes, the title on top
const text = (id, content, x, y, width, style) => ({ kind: 'text', id, content, align: 'left',
/* The proof desk above the pages: the live page, and the four colourways as buttons.
Sizes are in container units, so the desk keeps its 4:3 shape at any width up to 1120 px. */
#editions {
container-type: inline-size; max-width: 1120px; margin: 0 auto; background: #16181d;
color: #b9bcc4; font: 400 13px/1.4 "Plus Jakarta Sans", system-ui, sans-serif;
}
#editions .desk {
box-sizing: border-box; display: grid; aspect-ratio: 4 / 3; padding: 4cqw;
grid-template: 'page head' auto 'page ways' minmax(0, 1fr) / 67cqw minmax(0, 1fr);
gap: 2.6cqw 3.5cqw;
}
#editions header { grid-area: head; }
#editions .kicker {
margin: 0 0 0.8cqw; font-size: max(10px, 1cqw); font-weight: 700; letter-spacing: .18em;
text-transform: uppercase; color: #8d9098;
}
#editions h2 { margin: 0; font: 800 2.2cqw/1.1 Syne, sans-serif; color: #f4f1ea; }
#live {
grid-area: page; display: block; width: 67cqw; height: 67cqw; background: #fff;
box-shadow: 0 1px 2px rgb(0 0 0 / .5), 0 2.4cqw 4.8cqw -1.8cqw rgb(0 0 0 / .85);
}
#editions .buttons {
grid-area: ways; display: grid; grid-template-rows: repeat(4, minmax(0, 1fr)); gap: 1.3cqw;
}
#editions button {
display: flex; align-items: center; gap: 1.6cqw; padding: 0; border: 0; background: none;
color: #f4f1ea; font: 700 1.7cqw/1.15 Syne, sans-serif; text-align: left; cursor: pointer;
}
#editions button canvas {
flex: none; width: 11cqw; height: 11cqw; background: #fff;
outline: 2px solid transparent; outline-offset: 0.45cqw; transition: outline-color .15s;
}
#editions button[aria-pressed="true"] canvas { outline-color: #f4f1ea; }
#editions button:hover canvas, #editions button:focus-visible canvas { outline-color: #8d9098; }
#editions button:focus-visible { outline: none; }
#editions button i { display: flex; gap: 0.5cqw; margin-top: 0.8cqw; }
#editions button b {
width: 1.4cqw; height: 1.4cqw; border-radius: 50%;
box-shadow: inset 0 0 0 1px rgb(255 255 255 / .14);
}
@container (max-width: 640px) {
#editions .desk {
aspect-ratio: auto; padding: 24px 16px; gap: 18px;
grid-template: 'head' auto 'page' auto 'ways' auto / minmax(0, 1fr);
}
#editions h2 { font-size: 24px; }
#live { width: 100%; height: auto; aspect-ratio: 1; }
#editions .buttons { grid-template: auto / repeat(4, minmax(0, 1fr)); gap: 10px; }
The composed script.js runs as it is: paste it into any page’s module script, or open the recipe on CodePen. Recipe folder on GitHub ↗ (opens in a new tab)
Variations
#Keep bold text in ink
Leave the accent to the headings, bullets and chips, and set the times and key terms in the text colour.
- boldColor: col('deep'), referenceColor: col('deep'), textAlign: 'left', firstLineIndent: pt(0) };
+ boldColor: col('ink'), referenceColor: col('deep'), textAlign: 'left', firstLineIndent: pt(0) };#Give each part of a book its own colour
For colours that change inside one document, part by part, see Parts in colour from one attribute.
Pitfalls
- A picture keeps the colours it was drawn with. An SVG or a photograph does not follow the palette, which is why the waveform is made of design boxes.
- An id the palette does not hold falls back to the hex written beside it. Misspell a
paletteIdand that colour stays in the house red in every colourway.
Credits
- Recipe
- Ignacio Ferro
- Text
- Original prose, CC BY 4.0
- Fonts
- Syne (SIL OFL 1.1) · Plus Jakarta Sans (SIL OFL 1.1)
Edit this write-up ↗ (opens in a new tab)Recipe folder on GitHub ↗ (opens in a new tab)
