What you'll build

Chapter 2 of Living Matter, an upper-secondary biology textbook on a 210 × 280 mm page, opens under a drawing of a cell cut by the page's top corner, with the chapter number in its core. Six kinds of box follow in three colours, each with a device of its own, so a student can tell an objective from a warning before reading it. Magenta marks the learning objectives, set on a stripe that holds a target, and the self-check, which has a ticked tile outside its frame. Green marks the study tip, set beside a thin rule capped by a bulb badge, and the lab box with its three safety pictograms. The warning is amber, with an alert badge on its outer corner. BOX 2.1 is lavender under a black tab and a flask. Bold terms take their box's colour, magenta in BOX 2.1.

This recipe answers

How do I make note, tip or warning boxes with an icon, a coloured stripe and rounded corners?
How do I add a numbered tab ("BOX 1-1"), a corner icon, or a margin icon with a rule?
How do I colour key terms (bold or italic) in the body or inside boxes?

The short answer

script.js · lines 40–61in full code

// box(id, hue, device) is the shared base: the hue colours the title, bullets and key terms.
const TAB = 5, BADGE = 7.4; // in mm: the tab's height (and offset), the warning badge's size
const calloutStyles = [
  // The first style is also the one a missing or misspelt type falls back to.
  box('objectives', 'band', { title: t({ en: 'In this chapter', es: 'En este capítulo' }),
    background: col('tintBand'), stripe: { enabled: true, width: mm(7.5), color: col('band') },
    icon: icon('target', 5) }), // on a side stripe (left by default) the icon is centred on it
  box('feature', 'band', { background: col('mist'),
    titleStyle: { fontFamily: 'Lexend', fontSize: pt(10.5), color: col('ink'), gap: mm(1.6) },
    // Printed only where the fence has label="…": the tab, the flask beside it, a rule to them.
    label: { fontFamily: LABEL, fontSize: pt(8), color: col('paper'), background: col('ink'),
      position: 'top-left', // this verso's outer corner, above the badge ('top-right' by default)
      height: mm(TAB), offset: mm(TAB), paddingX: mm(2.3), // offset = height: on the top edge
      icon: { resourceId: 'flask', width: mm(4.4), gap: mm(1.2) },
      rule: { enabled: true, color: col('ink'), width: pt(1.2) } } }),
  box('warning', 'warnInk', { background: col('tintWarn'), borderRadius: mm(1.4),
    border: { enabled: true, color: col('warn'), width: pt(0.75) },
    // The badge hangs half past the outer corner: sides of half badge + GAP align the title.
    padding: { top: mm(2.8), right: mm(BADGE / 2 + GAP), bottom: mm(3.2),
      left: mm(BADGE / 2 + GAP) },
    icon: icon('caution', BADGE, { position: 'corner', cornerSide: 'outer' }) }),
]; // straight into config(), followed by the 'more' styles

Three devices: an icon on a wide stripe, a numbered tab, an outer badge

Method

#1 · Give every kind of box a colour

script.js · lines 13–21in full code

const palette = { ink: '#1f2430', paper: '#ffffff', // text; type on stripes and tabs
  band: '#ab2e78', tintBand: '#fae3ef', // the chapter's magenta: opener, objectives, self-check
  tip: '#25734a', tintTip: '#e2f0e7', // study tips and lab work
  warn: '#e39422', tintWarn: '#fcefd8', warnInk: '#94540a', // frame and badge; tint; its type
  mist: '#e8e3f0', rule: '#dccfd8', muted: '#675e66' }; // feature box; lines in drawings; heads
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
// The engine's defaults link to 'main-color': point it at the band, so nothing prints blue.
const colorPalette = Object.entries({ ...palette, 'main-color': palette.band })
  .map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));

Six kinds of box share three hues: magenta for the objectives and the self-check, green for the study tip and the lab, amber for the warning. BOX 2.1 has a lavender fill and uses magenta for its key terms. Each hue has a pale tint for fills, and every colour setting links to a palette entry, so changing a hue means editing one value. Type this small needs a contrast of 4.5:1. Magenta on the lavender reaches 4.9:1, but amber on the warning's fill only 2.2:1, so the warning keeps amber for its frame and badge and sets its title and key terms in warnInk, a darker amber at 5.2:1.

script.js · lines 27–36in full code

const box = (id, hue, device) => ({ id, marginTop: pt(LEAD), marginBottom: pt(LEAD / 2),
  padding: { top: mm(2.8), right: mm(3.4), bottom: mm(3.2), left: mm(3.4) },
  titleStyle: { fontFamily: LABEL, fontSize: pt(8.5), color: col(hue), // bold by default
    textTransform: 'uppercase', letterSpacing: pt(1.4), gap: mm(GAP) },
  body: { fontFamily: LABEL, fontSize: pt(9.6), lineHeight: pt(12.6), color: col('ink'),
    boldColor: col(hue), textAlign: 'left', firstLineIndent: pt(0), paragraphSpacing: true },
  lists: { color: col(hue), gap: mm(2.2), itemSpacing: pt(2.4) }, // bullets and numbers
  ...device }); // the kind's title, fill and device: its spread wins over the base
// An SVG or bitmap resource, fitted into a square of that size (width × size with `width`).
const icon = (id, size, more) => ({ kind: 'resource', resourceId: id, size: mm(size), ...more });

box() holds the settings every box shares: margins, padding, title and body type, list spacing. Its hue argument colours the title, the bullets and numbers, and the bold runs. body.boldColor turns fluid mosaic model magenta in the objectives and cell wall amber-brown in the warning; bold in the running text stays ink (typography inside a box). Declaring calloutStyles replaces the only style the engine ships, a grey box called note. A fence whose type is missing or misspelt takes the first style, so the list opens with the objectives, which every chapter has.

#3 · Stripe, tab and badge

The code is the short answer above. The objectives' stripe is 7.5 mm wide and its target 5 mm, so the icon sits inside the colour with room on either side. The tab's offset equals its height, which stands the tab on the top edge of the box, clear of the title. 'top-left' is the outer corner of this verso; the flask follows the tab, and the rule runs along the top edge from the flask to the far corner. position: 'corner' hangs the warning's badge half its width past the edge, and cornerSide: 'outer' sends it to the fore-edge side, the left on this verso. On that side the engine indents the title to clear the badge unless the padding already covers half the badge plus the title gap, so the warning pads both sides by BADGE / 2 + GAP and its title lines up with its text. Only this box has a borderRadius. On a striped box the stripe is painted as a separate square bar, so the corners on that side would stay square (callout styles).

#4 · Three more devices

script.js · lines 65–78in full code

const BULB = 6.4; // the study tip's badge in mm: the text clears it
const moreStyles = [
  box('tip', 'tip', { title: t({ en: 'Study tip', es: 'Para recordar' }),
    backgroundEnabled: false, stripe: { enabled: true, width: pt(2.5), color: col('tip') },
    // A stripe narrower than its icon: the badge sits on it at the top and hides it there.
    padding: { top: mm(0.6), right: mm(0), bottom: mm(0.6), left: mm(BULB / 2 + 2) },
    icon: icon('bulb', BULB) }),
  box('safety', 'tip', { background: col('tintTip'), marginTop: pt(4), // under its heading
    icon: icon('safety', 7, { width: mm(24.5), align: 'center' }) }), // 3 pictograms, 1 image
  box('check', 'band', { background: col('tintBand'),
    // Outside the frame: [marker][rule][gap][box], the rule as tall as the box.
    marker: { kind: 'resource', resourceId: 'check', size: mm(7), align: 'top', gap: mm(3),
      rule: { enabled: true, color: col('band'), width: pt(0.75) } } }),
];

The study tip's stripe is 2.5 pt wide against a 6.4 mm bulb badge, so it prints as a thin rule with the badge over its top end; a left padding of half the badge plus 2 mm keeps the text clear of the bulb. icon.width fits a picture into a wide box instead of a square, so the three safety pictograms, drawn as one 24.5 mm image, make the lab box's icon column, centred on its text. The self-check's marker sits outside the frame, in the order marker, rule, gap, box. Its square tile on a 0.75 pt rule sets it apart from the study tip, whose badge is round. The fence adds span="page" placement="bottom" to float the self-check to the foot of page 29.

#5 · Icons are resources

script.js · lines 240–265in full code

const svgResource = (id, width, height, extra) => ({ id, typeId: 'figure', kind: 'svg',
  svg: { fileId: `${id}.svg`, width, height }, createdAt: 0, updatedAt: 0, ...extra });
const pageTop = { position: 'top', span: 'page' }; // a 'top' float opens the page after its :ref
const resources = [
  // Uncited, so never placed as figures: the box styles and the opener use them by id.
  ...['target', 'bulb', 'caution', 'check'].map((id) => svgResource(id, 240, 240)),
  svgResource('flask', 200, 240), svgResource('safety', 760, 240), svgResource('cell', 2000, 2000),
  svgResource('mosaic', 3480, 1240, { placement: pageTop, caption: t({
    en: 'The fluid mosaic: magenta phospholipids, green proteins, an amber carrier with its '
      + 'glucose, grey cholesterol, amber sugars.', // one line: the page is wide
    es: 'El mosaico fluido: fosfolípidos magenta, proteínas verdes, transportadora ámbar con su '
      + 'glucosa, colesterol gris, azúcares ámbar.' }),
    altText: t({ en: 'A cell membrane in section', es: 'Una membrana celular en sección' }) }),

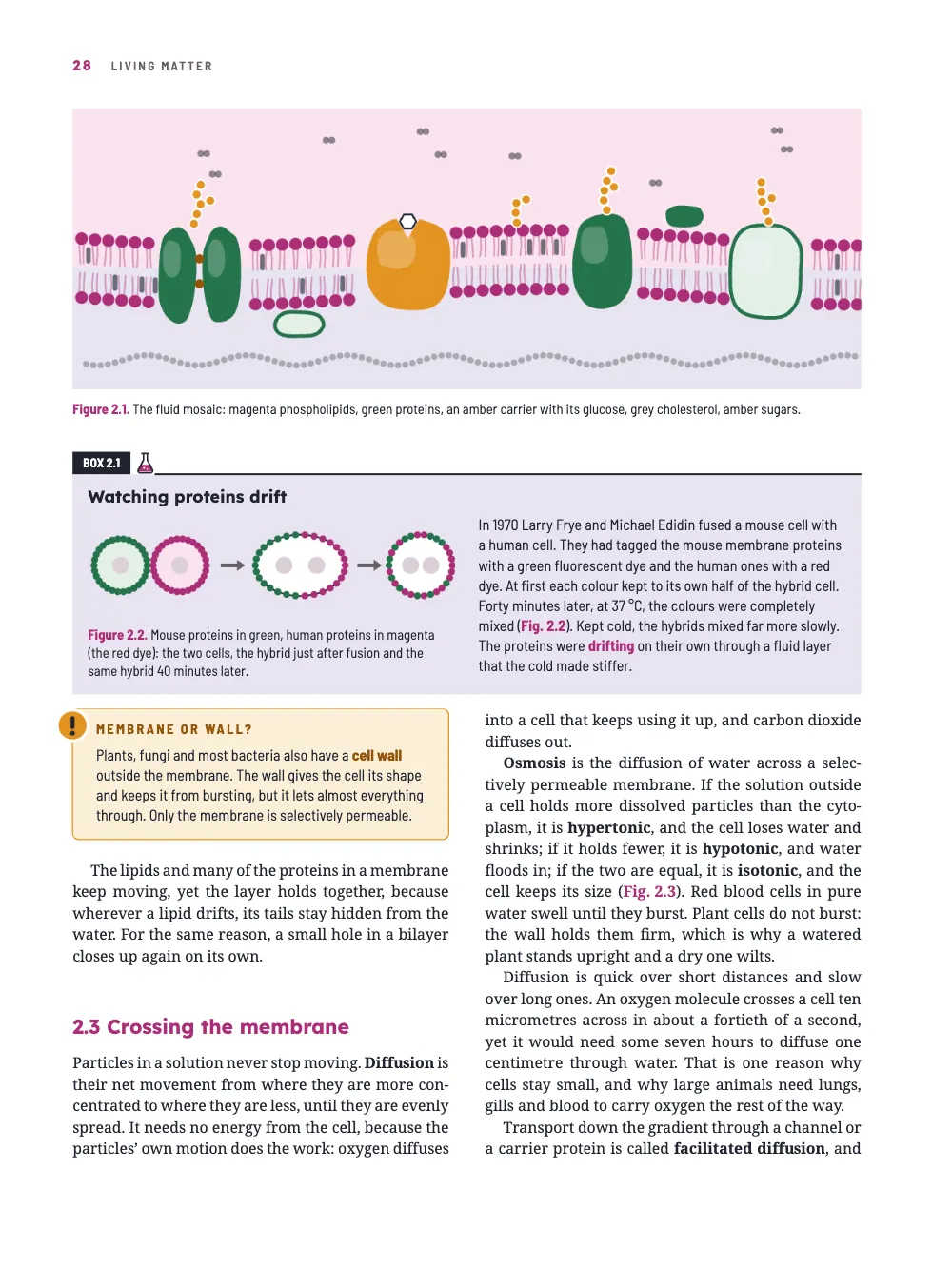

  svgResource('fusion', 1800, 500, { placement: { position: 'here' }, caption: t({
    en: 'Mouse proteins in green, human proteins in magenta (the red dye): the two cells, the '
      + 'hybrid just after fusion and the same hybrid 40 minutes later.',
    es: 'En verde, las proteínas de ratón; en magenta, las humanas (el colorante rojo): las dos '
      + 'células, el híbrido recién fusionado y el mismo híbrido 40 minutos después.' }),
    altText: t({ en: 'Two cells fusing into a hybrid', es: 'Dos células que se fusionan' }) }),

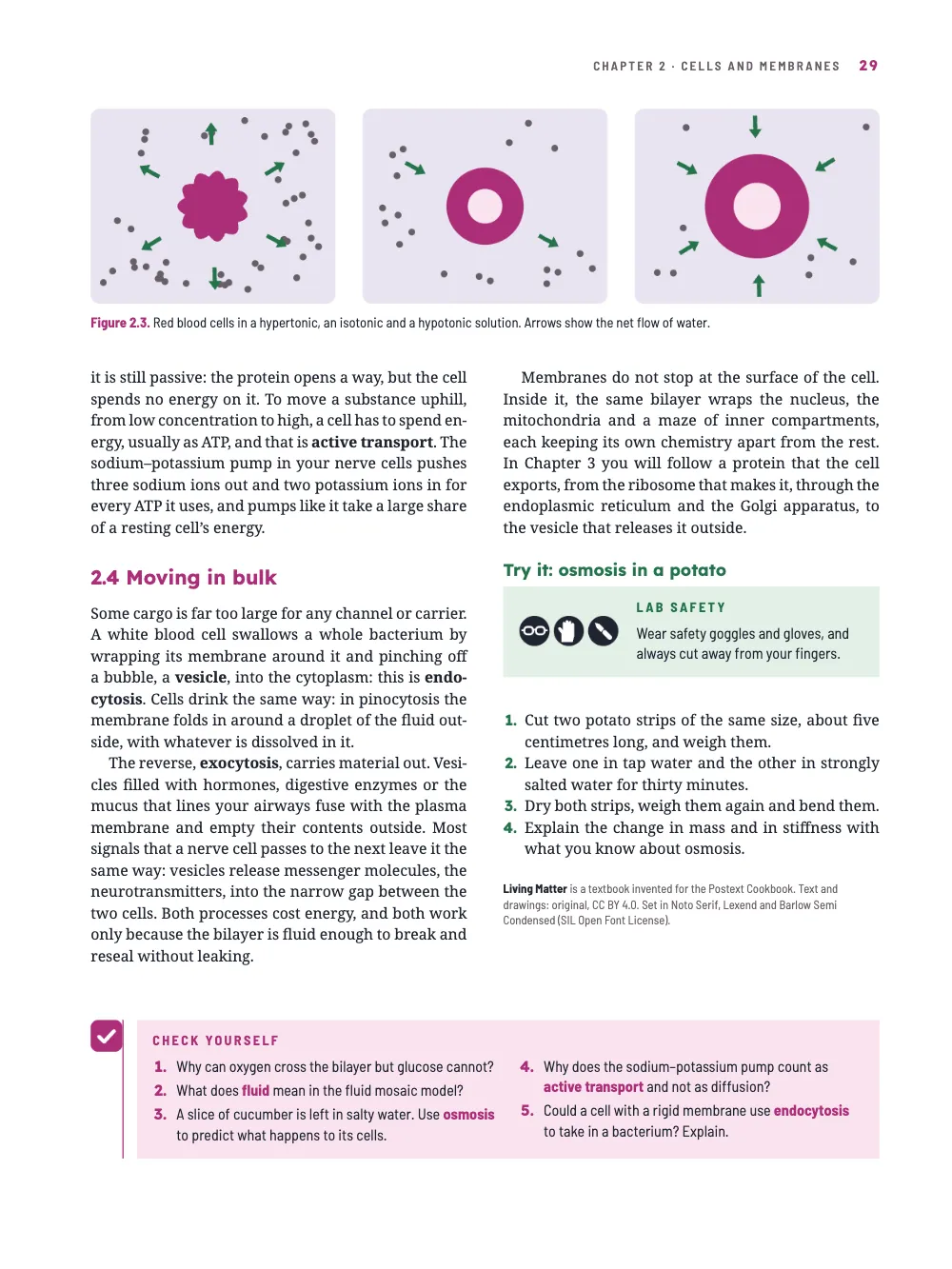

  svgResource('osmosis', 3480, 860, { placement: pageTop, caption: t({
    en: 'Red blood cells in a hypertonic, an isotonic and a hypotonic solution. Arrows show the '
      + 'net flow of water.',
    es: 'Glóbulos rojos en una disolución hipertónica, una isotónica y una hipotónica. Las flechas '
      + 'indican el flujo neto de agua.' }),
    altText: t({ en: 'Blood cells in three solutions', es: 'Glóbulos rojos en tres medios' }) }),
];

Every icon, the flask beside the tab and the opener's cell are SVG resources declared with the content and registered by file id. A style names them by resource id, and because the text never cites them, none of them becomes a numbered figure. Glyphs such as ✓ or ☞ would be shorter to write, but the Fontsource latin files the pages load do not have them: the canvas would borrow them from a system font, and a PDF would drop them. The drawings carry no words either, because an SVG drawn as an image cannot use the page's fonts; the captions name the colours instead.

#6 · Open the chapter with a cell

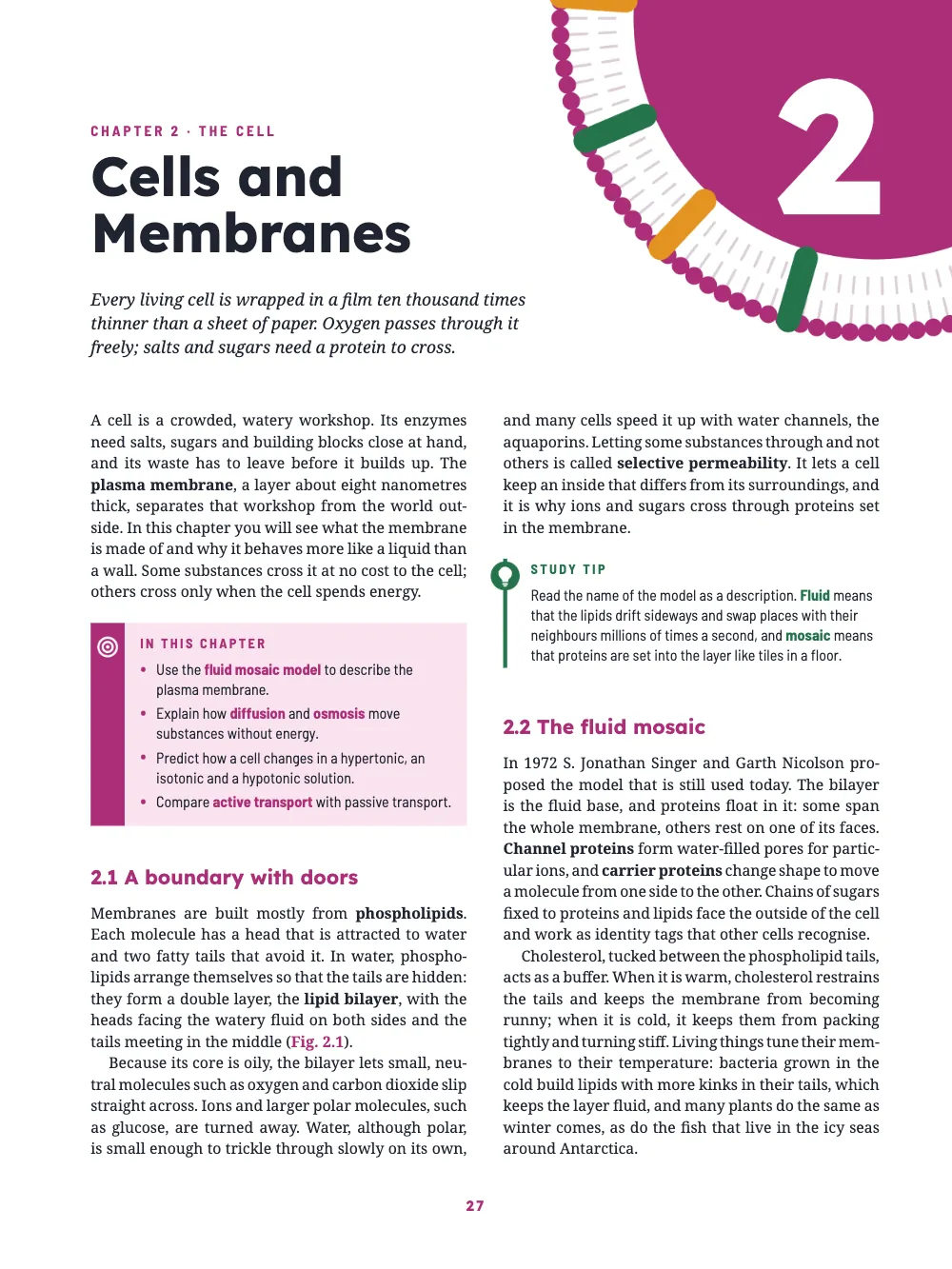

script.js · lines 82–101in full code

const text = (id, content, family, size, color, placement, extra) => ({ kind: 'text', id,
  content, fontFamily: family, fontSize: pt(size), color: col(color), placement,
  overflow: 'wrap', align: 'left', ...extra }); // gotcha: overflow-ellipsis-default
const below = (id, y, width) => ({ anchor: { to: `#${id}`, edge: 'below' },
  offset: { y: mm(y) }, size: { width: mm(width) } });
const chapter = t({ en: 'Chapter {chapterNumber}', es: 'Capítulo {chapterNumber}' });
const opener = { enabled: true, minHeight: mm(66), slot: { elements: [
  { kind: 'image', id: 'cell', resourceId: 'cell', placement: { anchor: { to: 'page',
    edge: 'top-right' }, offset: { x: mm(58), y: mm(-71) }, size: { width: mm(150) } } },
  text('numeral', '{chapterNumber}', 'Lexend', 118, 'paper', { anchor: { to: 'page',
    edge: 'top-right' }, offset: { x: mm(-OUTER), y: mm(14) } },
    { fontWeight: 800, lineHeight: 1, align: 'right' }),
  text('kicker', `${chapter} · {attr.unit}`, LABEL, 9, 'band', { anchor: { to: 'container',
    edge: 'top-left' }, offset: { y: mm(3) } },
    { fontWeight: 700, letterSpacing: pt(1.8), textTransform: 'uppercase' }),
  text('title', '{titleText}', 'Lexend', 34, 'ink', below('kicker', 2.5, 112),
    { fontWeight: 700, lineHeight: 1.04 }),
  text('lead', '{attr.lead}', 'Noto Serif', 10.5, 'ink', below('title', 5, 98),
    { italic: true, lineHeight: 1.42 }),
] } };

The cell is an image element anchored to the page's top-right corner and pushed past it, so mostly its lower-left quarter shows, and the numeral sits in its core. Both stay inside the 66 mm that minHeight reserves for the opener. The kicker and the standfirst come from the heading line, # Cells and \\ Membranes {unit="The cell" lead="…"}, and the \\ breaks the title only in the opener.

The whole recipe
