Recipe number 108

Cookbook · Chapter 1 · Page & grid

A two-column Arabic newspaper page

An Arabic daily in locale 'ar': the first column is the right one, headlines span both, and the In brief strip sets three columns right to left.

p. ١ · 1 of 2

  • Trim 246 × 328 mm
  • 2 columns, 6 mm gutter
  • Noto Naskh Arabic 10.7/16
  • Aref Ruqaa
  • Noto Kufi Arabic
  • 2 pages
  • Level
  • Postext 1.65.0
  • Laid out in 175 ms
  • 167 lines of code

In short

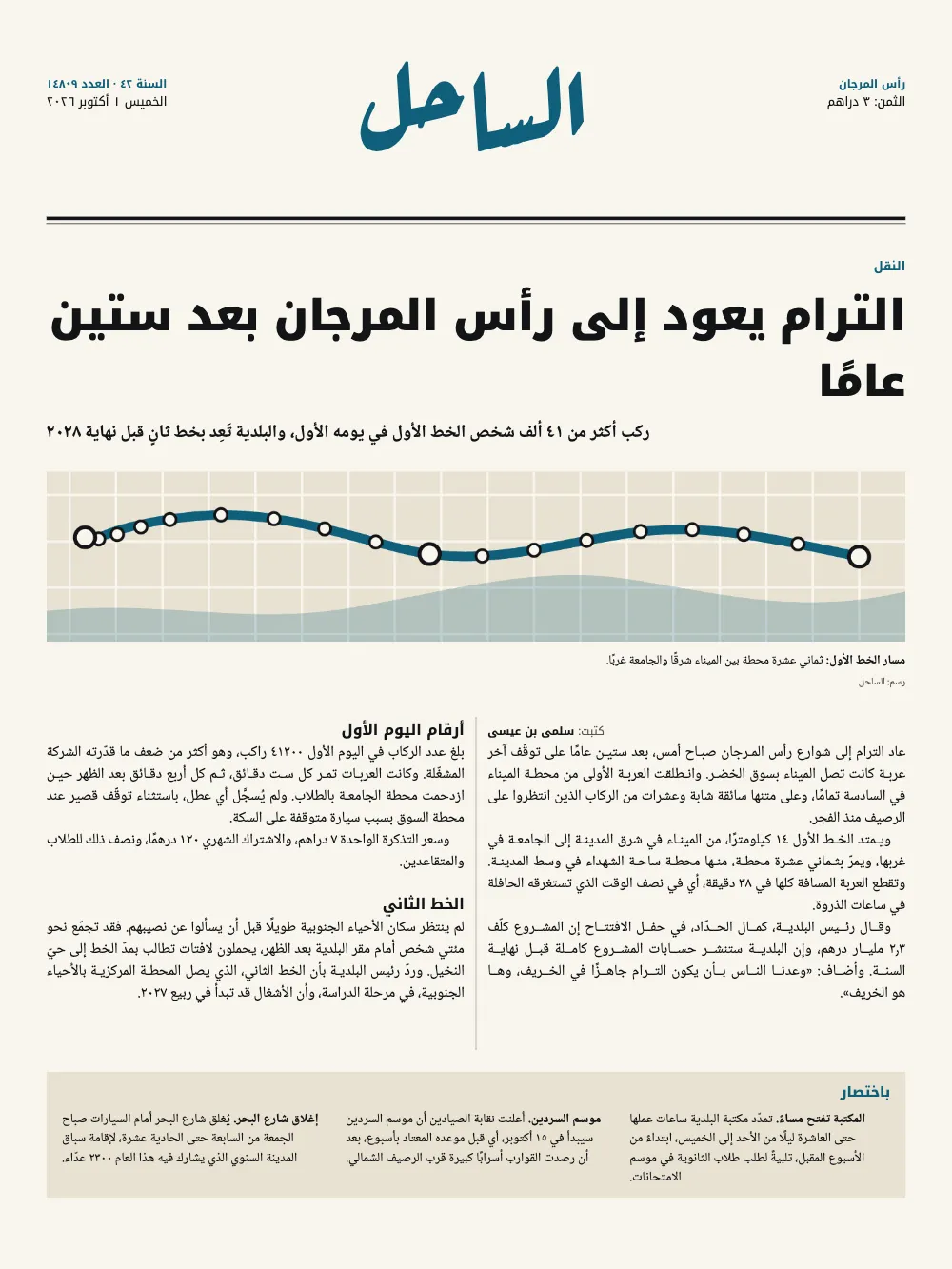

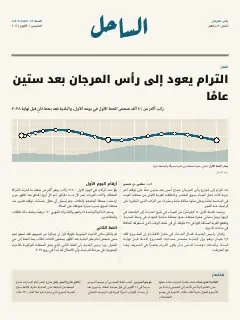

The front page and an inside page of an Arabic newspaper. The story starts in the right-hand column and carries on in the left one, the way Arabic readers read a page.

What you'll build

Two pages of الساحل, an imaginary daily of an imaginary port city, on a 246 × 328 mm compact. The front page carries the paper's name in Aref Ruqaa at 84 pt, the lead story on the town's new tram under a headline across the page and a map drawn in code, and a strip of three briefs at the foot. Page 2 opens the local section under a blue flag, with five stories and the day's prayer times. Everything reads from the right: the first body column, the briefs, the table's columns, the ears of the nameplate. The English front page sets the same furniture left to right.

This recipe answers

  • Which column comes first on an Arabic page, and how do I set a two-column newspaper?

The short answer

script.js · lines 38–48in full code
// locale 'ar' mirrors the page: the body's first column is the right one, the story runs down
// it and on at the top of the left one, and the column rule sits between them as before.
const layout = { layoutType: 'double', gutterWidth: mm(6),
  columnRule: { enabled: true, color: col('rule'), lineWidth: pt(0.5) } };
// A headline over both columns is a page-span box without a frame: the columns under it start
// level, right then left, and a box with placement="bottom" closes the page the same way.
const banner = { id: 'banner', backgroundEnabled: false, span: 'page',
  padding: { top: pt(0), right: pt(0), bottom: pt(0), left: pt(0) },
  titleStyle: { ...kufi(9, 700, 'sea'), gap: mm(1.2) }, // the kicker, from the fence's title
  marginTop: pt(0), marginBottom: pt(LEAD / 2),
  body: { fontFamily: TEXT, fontSize: pt(13), lineHeight: pt(21), textAlign: 'right' } };

Two columns, the first one on the right

Ingredients

Type
Aref Ruqaa, Noto Kufi Arabic, Noto Naskh Arabic (SIL OFL 1.1)
Assets
None: every picture is drawn in code

Method

#1 · Two columns, the first on the right

The code is the short answer above. layoutType: 'double' and the column rule are the same settings as in an English paper; locale: 'ar' turns the page, so the story fills the right-hand column first and carries on at the head of the left one (Page order and right binding). A headline across both columns is a page-span box with no frame, and the columns under it start level. The In brief strip is a page-span box floated to the foot with :::columns{count=3} inside, and its columns run right to left too, as does the prayer-times table on page 2: a table set in the document's direction puts its first column on the right.

#2 · A nameplate between two ears

script.js · lines 52–68in full code
const ear = (id, side, lines) => lines.map(([key, content, look], i) => text(`${id}-${key}`,
  content, { ...look, align: side }, { ...(i === 0 ? at('container', `top-${side}`, 0, 4)
    : at(`#${id}-${lines[i - 1][0]}`, 'below', 0, 1)), size: { width: mm(48) } }));
const nameplate = { enabled: true, minHeight: mm(46), slot: { elements: [
  text('name', '{titleText}', { fontFamily: NAME, fontSize: pt(84), fontWeight: 700,
    lineHeight: 1.1, color: col('sea'), align: 'center' },
  { ...at('container', 'top', 0, -3), size: { width: 'fill' } }),
  // In the mirrored page, 'right' is the start of the line: issue and date there, price opposite.
  ...ear('start', 'right', [['k', '{attr.issue}', kufi(8, 700, 'sea')],
    ['d', '{publishDate}', kufi(9, 400)]]),
  ...ear('end', 'left', [['k', '{attr.city}', kufi(8, 700, 'sea')],
    ['p', '{attr.price}', kufi(9, 400)]]),
  { kind: 'rule', id: 'thick', thickness: pt(2.5), color: col('ink'),
    placement: { ...at('container', 'top-left', 0, 40), size: { width: 'fill' } } },
  { kind: 'rule', id: 'thin', thickness: pt(0.5), color: col('ink'),
    placement: { ...at('#thick', 'below', 0, 0.8), size: { width: 'fill' } } },
] } };

The front page's first-level heading is the paper's name, painted by a heading style. Its design is drawn in the mirrored page, so top-right is the start of the line: the issue and the date go there, the city and the price at the other end (What left, right, start and end mean). Ruqʿa is a display hand for a few words at a large size; it has no kashida and the body never uses it.

#3 · Section flags and folio lines

script.js · lines 72–86in full code
const flag = { enabled: true, minHeight: mm(13), slot: { elements: [
  { kind: 'rule', id: 'bar', thickness: pt(3), color: col('ink'),
    placement: { ...at('container', 'top-left', 0, 9), size: { width: 'fill' } } },
  text('flag', '{titleText}', { ...kufi(12, 700, 'paper'), align: 'right',
    box: { backgroundColor: col('sea'), padding: { top: mm(1), right: mm(3), bottom: mm(1.4),
      left: mm(3) } } }, at('#bar', 'above')),
] } };
// The folio line keeps its physical sides: the number at the outer corner of each page.
const folio = (parity, edge, x) => ({ kind: 'text', id: `n-${parity}`, parity,
  content: '{pageNumber}  ·  {title}  ·  {publishDate}', ...kufi(8, 600, 'muted'),
  align: edge, placement: at('page', `top-${edge}`, x, 7) });
const header = { elements: [folio('even', 'right', -SIDE), folio('odd', 'left', SIDE),
  { kind: 'rule', id: 'folio-rule', thickness: pt(0.5), color: col('rule'),
    placement: { ...at('page', 'top-left', SIDE, 11.5),
      size: { width: mm(TRIM.width - 2 * SIDE) } } }] };

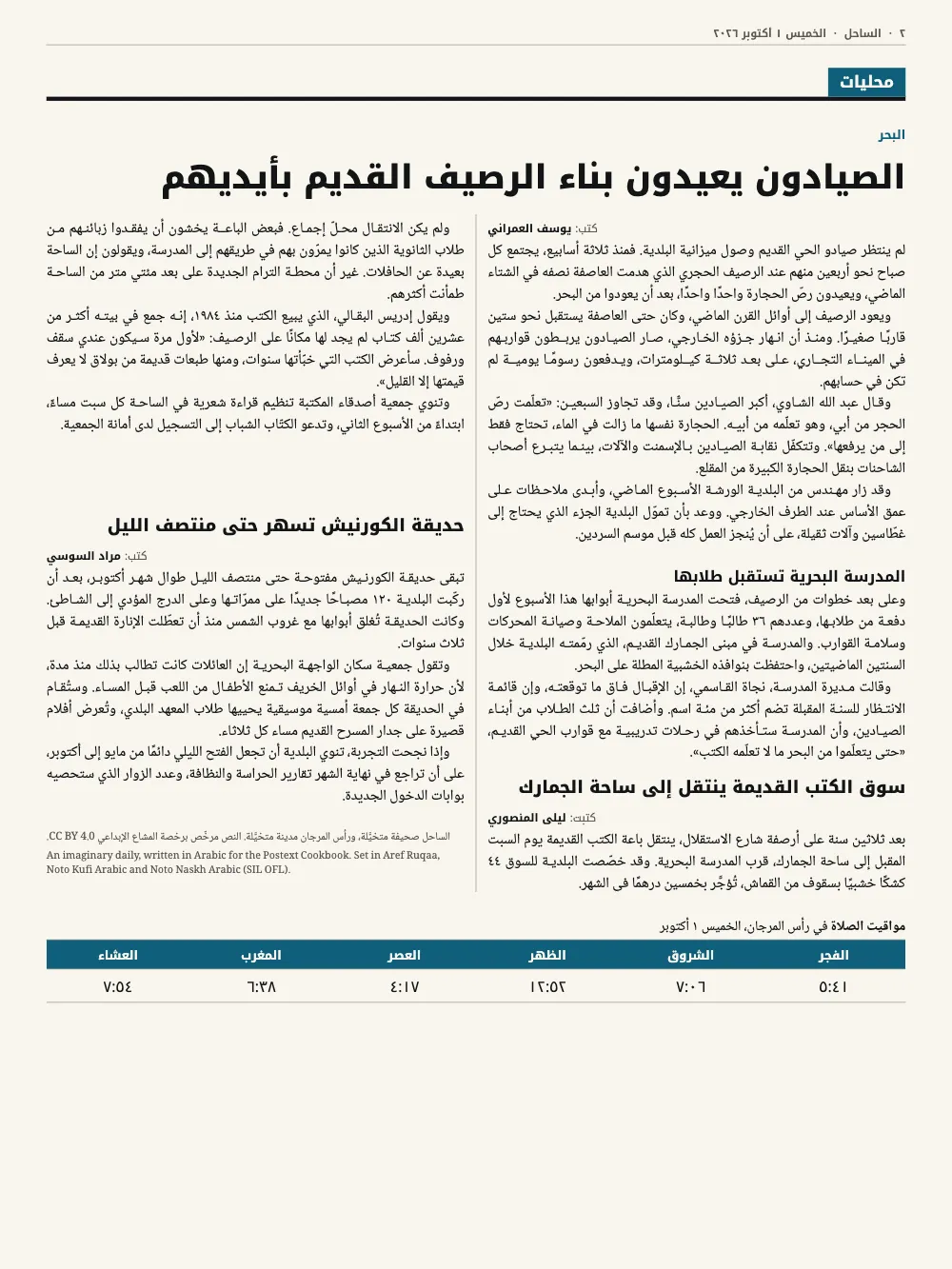

An inside page opens with a first-level heading drawn as a flag on a heavy rule. The folio line is a header, so it keeps its physical sides: page 2, an even page, has its number at the right-hand corner, the outer one in a paper that opens from the right. The front page clears the header in its heading style.

#4 · A map drawn in code

script.js · lines 266–296in full code
function routeSvg() { // 222 × 44 mm, 1 unit = 1 mm
  const [W, H] = [222, 44];
  const coast = 'M0 36C30 33 52 40 80 35S128 24 152 28S196 37 222 31V44H0Z';
  // Eighteen stations along a line that leaves the port (east, on the right) for the university.
  const line = 'M210 22C186 17 170 13 150 16S112 25 92 20S56 9 34 12S14 19 10 17';
  const stops = Array.from({ length: 18 }, (_, i) => i / 17);
  const pointAt = (t) => { // the line as three cubic pieces, sampled per piece
    const seg = [[210, 22, 186, 17, 170, 13, 150, 16], [150, 16, 130, 19, 112, 25, 92, 20],
      [92, 20, 72, 15, 56, 9, 34, 12], [34, 12, 22, 14, 14, 19, 10, 17]];
    const k = Math.min(3, Math.floor(t * 4));
    const u = t * 4 - k;
    const [x0, y0, x1, y1, x2, y2, x3, y3] = seg[k];
    const b = (a, c, d, e) => (1 - u) ** 3 * a + 3 * (1 - u) ** 2 * u * c + 3 * (1 - u) * u * u * d
      + u ** 3 * e;
    return [b(x0, x1, x2, x3), b(y0, y1, y2, y3)];
  };
  const rings = stops.map((t, i) => {
    const [x, y] = pointAt(t);
    const big = i === 0 || i === 17 || i === 8;
    return `<circle cx="${x.toFixed(1)}" cy="${y.toFixed(1)}" r="${big ? 2.6 : 1.6}" `
      + `fill="${palette.paper}" stroke="${palette.ink}" stroke-width="${big ? 1 : 0.7}"/>`;
  }).join('');
  let grid = '';
  for (let x = 6; x < W; x += 12) grid += `M${x} 0V${H}`;
  for (let y = 6; y < H; y += 12) grid += `M0 ${y}H${W}`;
  return `<svg xmlns="http://www.w3.org/2000/svg" width="${W * 10}" height="${H * 10}" `
    + `viewBox="0 0 ${W} ${H}"><rect width="${W}" height="${H}" fill="${palette.sand}"/>`
    + `<path d="${grid}" stroke="${palette.paper}" stroke-width="0.6"/>`
    + `<path d="${coast}" fill="${palette.sea}" fill-opacity="0.25"/>`
    + `<path d="${line}" fill="none" stroke="${palette.sea}" stroke-width="2.4"/>${rings}</svg>`;
}

The tram map is an SVG of paths and circles in the palette's colours, with no text in it: the place names stay in the caption, in the type of the page. The picture type has no counter and no label, because newspapers do not number their pictures.

The whole recipe

Sandbox
// ═══ Postext Cookbook · Nº 108 · A two-column Arabic newspaper page ══════════════════
// https://postext.dev/en/cookbook/arabic-newspaper-two-columns
// Code: MIT · Text: original Arabic news copy (CC BY 4.0) · Map: drawn in code
// Fonts: Aref Ruqaa, Noto Kufi Arabic, Noto Naskh Arabic (SIL OFL 1.1) · Needs postext ≥ 1.65.0
import {
  buildDocument, withLoadedFonts, renderPageToCanvas, registerResourceImage,
} from 'https://esm.sh/postext';
import { renderToPdf, decompressWoff2 } from 'https://esm.sh/postext-pdf';

const LANG = 'en'; // @lang: the language of the frame; the paper is Arabic in both editions
const RECIPE = 'arabic-newspaper-two-columns';

// ─── 1 · Design ─────────────────────────────────────────────────────────────
// #region palette: newsprint, a cold ink and the sea blue of the paper's name
const palette = {
  ink: '#121416', // text and the heavy rules
  sea: '#0f5f7a', // the accent: the nameplate, section flags, kickers, the tram line
  sand: '#e9e2d2', // the In brief strip and the map's land
  rule: '#9b988f', // hairlines: the column rule, the folio line
  muted: '#5b5852', // bylines, captions' credits, the imprint
  paper: '#f8f5ee', // newsprint, and type reversed out of the flags
};
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = Object.entries({ ...palette, 'main-color': palette.ink })
  .map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));
// #endregion
const [NAME, HEAD, TEXT] = ['Aref Ruqaa', 'Noto Kufi Arabic', 'Noto Naskh Arabic'];
const TRIM = { width: 246, height: 328 }; // mm: a 3 : 4 compact
const SIDE = 12; // mm: newspaper margins, narrow and not mirrored
const LEAD = 16; // pt: the body leading, 1.5 × an 10.7 pt Naskh
const kufi = (size, weight, colour = 'ink') => ({ fontFamily: HEAD, fontSize: pt(size),
  fontWeight: weight, color: col(colour) });
const at = (to, edge, x = 0, y = 0) => ({ anchor: { to, edge }, offset: { x: mm(x), y: mm(y) } });
const text = (id, content, look, placement) => ({ kind: 'text', id, content, overflow: 'wrap',
  ...look, placement });

// #region answer: two columns, the first one on the right
// locale 'ar' mirrors the page: the body's first column is the right one, the story runs down
// it and on at the top of the left one, and the column rule sits between them as before.
const layout = { layoutType: 'double', gutterWidth: mm(6),
  columnRule: { enabled: true, color: col('rule'), lineWidth: pt(0.5) } };
// A headline over both columns is a page-span box without a frame: the columns under it start
// level, right then left, and a box with placement="bottom" closes the page the same way.
const banner = { id: 'banner', backgroundEnabled: false, span: 'page',
  padding: { top: pt(0), right: pt(0), bottom: pt(0), left: pt(0) },
  titleStyle: { ...kufi(9, 700, 'sea'), gap: mm(1.2) }, // the kicker, from the fence's title
  marginTop: pt(0), marginBottom: pt(LEAD / 2),
  body: { fontFamily: TEXT, fontSize: pt(13), lineHeight: pt(21), textAlign: 'right' } };

The composed script.js runs as it is: paste it into any page’s module script, or open the recipe on CodePen. Recipe folder on GitHub ↗ (opens in a new tab)

Variations

#Three columns in the briefs, four on a wider page

The strip is a box with its own columns, so it can have more than the body's two.

-:::columns{count=3 breaks="2,3"}
+:::columns{count=4 breaks="2,3,4"}

#European digits for a Maghreb paper

-  locale: 'ar', // written out, never LANG (gotcha: arabic-locale-tag): rtl, digits ٠–٩
+  locale: 'ar-MA', // rtl, digits 0–9

Pitfalls

Pitfall

Tag an Arabic book 'ar', not with LANG

A recipe's editions are en and es, but an Arabic sample is Arabic in both: `locale: LANG` would set it left to right, bind it on the left, number its pages 1 2 3 and caption its figures Figure or Figura. From postext 1.30 the tag is also the language the text is shaped in (measured, painted and embedded), so under an English or Spanish tag a face such as Markazi Text does not draw the Arabic forms of its guillemets and stops, and the lines break elsewhere. Write the tag yourself: 'ar' (Arabic-Indic digits, the Mashriq convention), a region such as 'ar-EG' or 'ar-SA', or 'ar-MA', 'ar-DZ' or 'ar-TN' for a Maghreb edition with European digits. A Latin page that only quotes Arabic keeps its own locale. Right-to-left text →

Pitfall

Arabic faces need their arabic file, through the arabic block

Fontsource serves Amiri, Noto Naskh Arabic or Scheherazade New as one file per subset, and the Arabic letters are in the arabic file. loadFonts fetches only latin (and latin-ext), so on screen the Arabic comes from a system face and measures wrong, and fontsourceProvider hands the PDF that latin file, which prints empty boxes. List the arabic kit block, call loadArabicFonts(FONTS, markdown) after loadFonts, with every weight the pages set in Arabic listed in FONTS, and give renderToPdf fontProvider: arabicPdfProvider. Arabic fonts →

  • The prayer times are typed in Arabic-Indic digits in the table's cells: locale changes only the numbers the engine writes, so a Maghreb edition retypes them.

Credits

Text
  • Two pages of an imaginary Arabic daily, الساحل, and its city, written in Arabic for the recipe · Postext Cookbook · original
Fonts
Aref Ruqaa (SIL OFL 1.1) · Noto Kufi Arabic (SIL OFL 1.1) · Noto Naskh Arabic (SIL OFL 1.1)
