In short

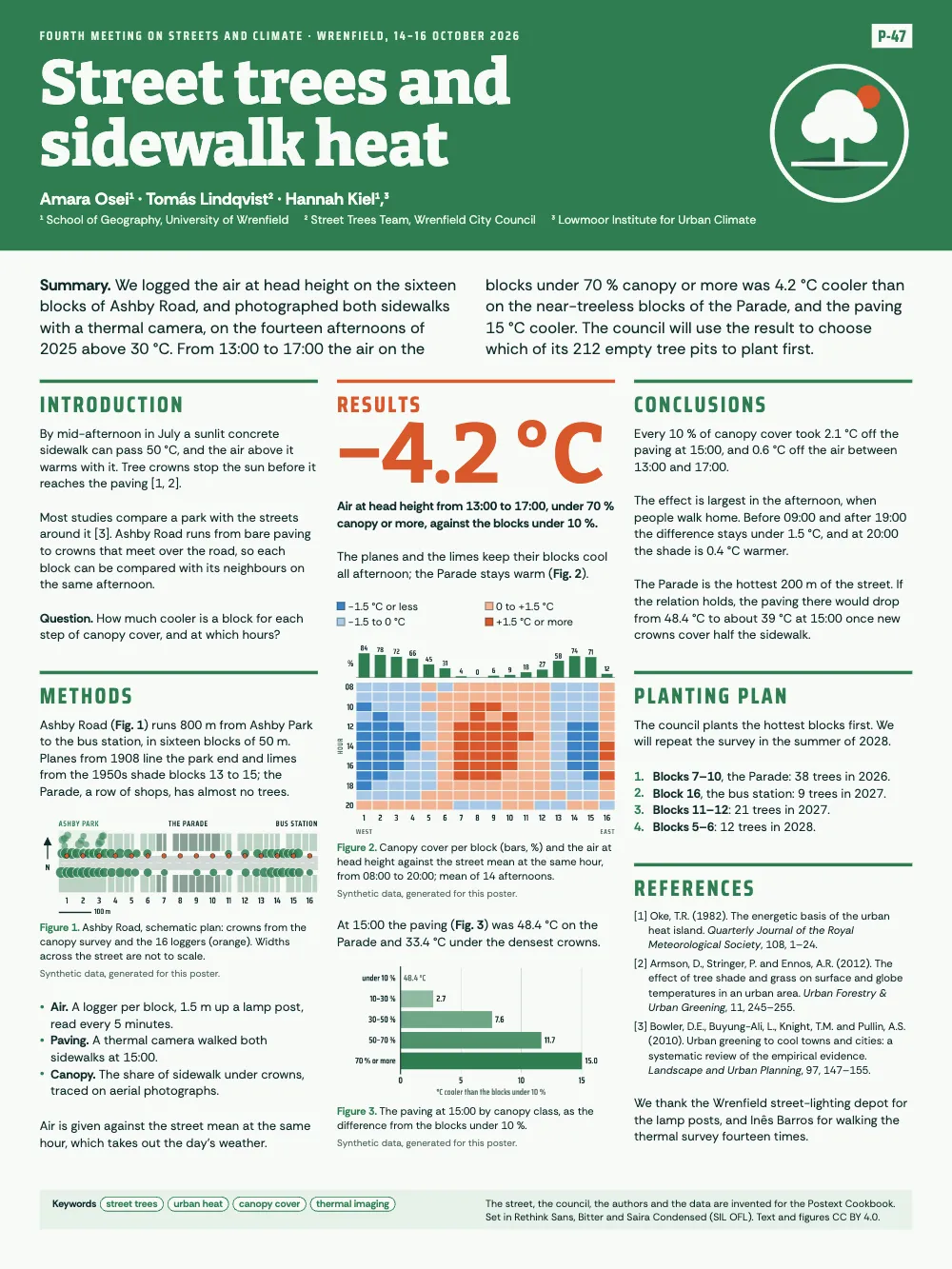

A large poster for a science conference, about street trees and summer heat. It shows how to arrange boxes of text and charts in columns on one very large page.

What you'll build

A conference poster for an invented study of street trees and sidewalk heat, set on one 600 × 800 mm page. A green band carries the meeting, the title in Bitter at 110 pt, the authors with their affiliation marks and the School of Geography's mark. Under a two-column summary, one :::columns group crosses both body columns and sets six panels in three columns, each a box under a 6 pt stripe. The middle column opens with −4.2 °C in orange at 150 pt, then a heat map of the air by block and hour, keyed with colour swatches, and a bar chart of the paving. A tinted strip of keyword chips sits on the bottom margin. The same file sets a Spanish edition, and the pen offers the page as a 1,701 × 2,268 px PNG.

This recipe answers

  • How do I set a box across both columns mid-page, such as a 3-up "in numbers" panel?
  • How do I put two columns inside a box (a text column beside a figure column)?
  • How do I add colour-key swatches to text, captions or table notes?

The short answer

script.js · lines 86–107in full code
// The body text runs in two columns and the panels in three: a :::columns group in the
// text, and span="page" lays it across both body columns, the gutter apart.
//   :::columns{count=3 breaks="3,4" span="page" marginBottom="0.75em"}
//                                             ← panel 3 opens column 2, panel 4 column 3
//   :::callout{type="panel" title="Introduction"}   ← each panel is a box in the group
//   …
//   :::                                       ← closes the panel; then the other panels
//   :::                                       ← closes the columns group
// marginBottom sets the space under the group: without it the group is followed by a
// line of the summary's paragraph spacing, 38 pt.
// A box in a group takes the width of its column. Its one device is a 6 pt stripe along
// the top.
const panel = { id: 'panel', backgroundEnabled: false,
  stripe: { enabled: true, side: 'top', width: pt(6), color: col('canopy') },
  padding: { top: mm(5), right: pt(0), bottom: pt(0), left: pt(0) },
  titleStyle: { fontFamily: 'Saira Condensed', fontSize: pt(40), fontWeight: 700,
    textTransform: 'uppercase', letterSpacing: pt(4), color: col('canopy'), gap: mm(4) },
  body: { fontSize: pt(22), lineHeight: pt(30) }, // the rest follows bodyText
  marginTop: mm(18) };
const results = { ...panel, id: 'results', // the finding: the same panel, striped in heat
  stripe: { ...panel.stripe, color: col('heat') },
  titleStyle: { ...panel.titleStyle, color: col('heat') } };

Three columns of panels in a group across the page

Ingredients

Type
Rethink Sans, Bitter, Saira Condensed (SIL OFL 1.1)
Assets
  • The plan of the street, the heat map, the bar chart and the School of Geography's mark, drawn in code from synthetic data in the poster's palette (Ignacio Ferro, CC BY 4.0)

Method

#1 · Lay the sheet out at 72 dpi

script.js · lines 38–48in full code
const SHEET = { width: 600, height: 800, margin: 25 }; // mm: a portrait board, 25 mm all round
const GAP = 12; // mm between the two body columns and between the three panel columns
// The summary's leading is the page's baseline grid: 56 lines fill the 750 mm between the
// margins, so a box floated to the foot of the page ends on the bottom margin.
const LEAD = (((SHEET.height - 2 * SHEET.margin) / 25.4) * 72) / 56; // 37.96 pt
const page = { width: mm(SHEET.width), height: mm(SHEET.height),
  // At 72 dpi a point is a pixel: the page is 1,701 × 2,268 px. The default 300 dpi would give
  // 7,087 × 9,449 px (268 MB of canvas) for the same line breaks.
  dpi: 72, backgroundColor: col('paper'),
  margins: { top: mm(SHEET.margin), bottom: mm(SHEET.margin), left: mm(SHEET.margin),
    right: mm(SHEET.margin) } }; // one sheet, nothing to mirror

At the default 300 dpi the poster breaks every line where it does at 72 dpi, but its page measures 7,087 × 9,449 px, or 268 MB of pixels once painted (page size presets). At 72 dpi a point is a pixel. The viewer paints its thumbnails with renderPageToCanvas and a scale, and renderPage gives the 1,701 × 2,268 px PNG that a meeting's online gallery asks for (rendering a page to a bitmap). The leading divides the 750 mm between the margins into 56 lines, so the keyword strip floated to the foot of the page ends on the bottom margin. At a round 38 pt only 55 lines fit, the last one 12.7 mm short of the margin; the keyword strip no longer fits under the panels and moves to a second page.

#2 · Draw the title band from the heading

script.js · lines 53–82in full code
const BAND = 158; // mm from the top edge to the foot of the green field
const type = (id, content, family, size, look, placement) => ({ kind: 'text', id, content,
  fontFamily: family, fontSize: pt(size), color: col('paper'), align: 'left',
  overflow: 'wrap', lineHeight: 1.2,
  ...look, placement });
const band = { enabled: true,
  // The field ends 133 mm under the top margin; eleven grid lines (147 mm) start the summary
  // 14 mm below it.
  minHeight: pt(11 * LEAD),
  slot: { elements: [
    { kind: 'box', id: 'field', style: { backgroundColor: col('canopy') },
      placement: { ...at('page', 'top-left'), size: { width: 'fill', height: mm(BAND) } } },
    type('meeting', '{attr.meeting}', 'Saira Condensed', 22, { fontWeight: 600,
      textTransform: 'uppercase', letterSpacing: pt(3.5), color: col('tint') },
    { ...at('page', 'top-left', SHEET.margin, 18), size: { width: mm(420) } }),
    type('title', '{titleText}', 'Bitter', 110, { fontWeight: 800, lineHeight: 1 },
      { ...at('#meeting', 'below', 0, 7), size: { width: mm(380) } }),
    type('authors', '{attr.authors}', 'Rethink Sans', 30, { fontWeight: 700 },
      { ...at('#title', 'below', 0, 7), size: { width: 'fill' } }),
    // The affiliation marks are the characters ¹ ² ³, typed in the heading's attributes.
    type('affiliations', '{attr.affiliations}', 'Rethink Sans', 21, { color: col('tint') },
      { ...at('#authors', 'below', 0, 2), size: { width: 'fill' } }),
    type('number', '{attr.poster}', 'Saira Condensed', 30, { fontWeight: 700,
      color: col('canopy'), box: { backgroundColor: col('paper'),
        padding: { top: mm(1.5), right: mm(4), bottom: mm(1), left: mm(4) } } },
    at('page', 'top-right', -SHEET.margin, 15)),
    // The School of Geography's mark, drawn in code.
    { kind: 'image', id: 'mark', resourceId: 'mark',
      placement: { ...at('page', 'top-right', -SHEET.margin, 38), size: { width: mm(92) } } },
  ] } };

The H1 carries the meeting, the poster number, the authors and the affiliations as attributes, and its design sets them over a page-anchored green box 158 mm deep (span and advanced design). The box ends 133 mm under the top margin. Without a minHeight the summary would start 0.9 mm under the green; a minHeight of eleven grid lines leaves 14 mm. The affiliation marks are the characters ¹ ² ³, the only superscript figures in the Latin-1 range.

#3 · Set the panels in a group across the page

script.js · lines 86–107in full code
// The body text runs in two columns and the panels in three: a :::columns group in the
// text, and span="page" lays it across both body columns, the gutter apart.
//   :::columns{count=3 breaks="3,4" span="page" marginBottom="0.75em"}
//                                             ← panel 3 opens column 2, panel 4 column 3
//   :::callout{type="panel" title="Introduction"}   ← each panel is a box in the group
//   …
//   :::                                       ← closes the panel; then the other panels
//   :::                                       ← closes the columns group
// marginBottom sets the space under the group: without it the group is followed by a
// line of the summary's paragraph spacing, 38 pt.
// A box in a group takes the width of its column. Its one device is a 6 pt stripe along
// the top.
const panel = { id: 'panel', backgroundEnabled: false,
  stripe: { enabled: true, side: 'top', width: pt(6), color: col('canopy') },
  padding: { top: mm(5), right: pt(0), bottom: pt(0), left: pt(0) },
  titleStyle: { fontFamily: 'Saira Condensed', fontSize: pt(40), fontWeight: 700,
    textTransform: 'uppercase', letterSpacing: pt(4), color: col('canopy'), gap: mm(4) },
  body: { fontSize: pt(22), lineHeight: pt(30) }, // the rest follows bodyText
  marginTop: mm(18) };
const results = { ...panel, id: 'results', // the finding: the same panel, striped in heat
  stripe: { ...panel.stripe, color: col('heat') },
  titleStyle: { ...panel.titleStyle, color: col('heat') } };

The body runs in two columns and the panels in three, so the grid is a :::columns{count=3} group fenced straight into the text, and span="page" sets it across both body columns, under the summary, with the page's gutter between its columns (:::columns). Left to itself, a group in the text is followed by a line of paragraph spacing, 38 pt here, and the keyword strip would move to a second page; marginBottom="0.75em" on the fence takes the place of that line (postext 1.28), and the strip fits at the foot of the page. Each panel is a callout in the group: it takes its own style, the column's 175 mm width and 18 mm of marginTop under the panel above it (the :::callout container). breaks="3,4" sends the third panel, Results, to the head of the middle column and the fourth, Conclusions, to the head of the last. Without it the group balances and cuts at the panel nearest each third of the stack. With this copy the cuts fall at the same two panels; the attribute keeps them there when the copy changes.

#4 · Keep each figure in its panel

script.js · lines 156–163in full code
// "Figure 1", not "Figure 1.1": the poster has no chapters.
const figureType = { ...defaultResourceTypes(LANG)[0], numberingTemplate: '{n}' };
const resourceTypes = [figureType];
const figure = (id, [width, height], caption, altText) => ({ id, typeId: figureType.id,
  kind: 'svg', svg: { fileId: `${id}.svg`, width: width * 10, height: height * 10 },
  placement: { position: 'here' }, // stays in its panel, where ::resource puts it; else floats
  caption, altText, note: t({ en: 'Synthetic data, generated for this poster.',
    es: 'Datos sintéticos, generados para este póster.' }), createdAt: 0, updatedAt: 0 });

A figure placed 'here' stays in the panel where ::resource sets it; with the default placement the three drawings leave their panels and the poster runs to a second page. numberingTemplate: '{n}' numbers them 1, 2, 3, where the default {h1}.{n} prints Figure 1.1 under a title that is an H1 (resource types). The note under each caption says the data are synthetic.

#5 · Share the heat map's colours with its key

script.js · lines 15–34in full code
const palette = {
  ink: '#102a2c', // text: a green-black
  paper: '#f7faf7', // the sheet, and type on the band
  canopy: '#2e7d4f', // the band, the stripes and titles of five panels, the tree crowns
  tint: '#e6f2ea', // the keyword strip, the park on the plan, lines of type on the band
  rule: '#bcd2c4', // buildings on the plan, the chart's grid
  muted: '#587068', // the notes under the figures, the axis titles inside them
  // The key of Figure 2, the air against the street mean at the same hour. The heat map's
  // cells and the :swatch runs of its key read the same four entries.
  cool: '#3b82c4', // −1.5 °C or less
  mist: '#a9c9e6', // −1.5 to 0 °C
  blush: '#f2b492', // 0 to +1.5 °C
  heat: '#d9572b', // +1.5 °C or more; also −4.2 °C, the Results panel, the loggers, the sun
};
// Every colour is linked to its palette entry by id.
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = [ // defaults link to 'main-color': point it at the canopy green
  ...Object.entries(palette).map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } })),
  { id: 'main-color', name: 'canopy (defaults)', value: { hex: palette.canopy, model: 'hex' } },
];

The heat map's cells and the four :swatch{color="…"} runs of its key name the same palette entries, so a new value for cool repaints the map and the key together (inline formatting). The key is a second :::columns group, two entries a column, inside the Results panel.

#6 · Set the headline figure in a paragraph style

script.js · lines 111–128in full code
const paragraphStyles = [
  // Paragraph styles apply inside boxes. The figure is written **bold**: that sets it in
  // Bitter 700 and in the style's boldColor.
  // containerSpacing 'add': the group ends on the style's own space, with no line of
  // paragraph spacing under it. −4.2 °C sits on the line that explains it, and a :::space
  // sets the gap under the references.
  { id: 'stat', fontFamily: 'Bitter', fontSize: pt(150), lineHeight: pt(130),
    boldColor: col('heat'), containerSpacing: 'add' },
  { id: 'refs', fontSize: pt(19), lineHeight: pt(26), hangingIndent: mm(9), spaceBetween: pt(8),
    containerSpacing: 'add' },
  { id: 'key', fontSize: pt(19), lineHeight: pt(28) }, // the key of Figure 2
];
const chipStyles = [{ id: 'keyword', background: col('paper'), borderColor: col('canopy'),
  borderWidth: pt(1.5), borderRadius: em(1), paddingX: em(0.55), paddingY: em(0.14),
  color: col('canopy'), bold: true, gap: em(0.35) }];
const strip = { id: 'strip', background: col('tint'), // one device: a tint
  padding: { top: mm(4), right: mm(8), bottom: mm(4), left: mm(8) }, columnGap: mm(GAP),
  body: { fontSize: pt(18), lineHeight: pt(24) } };

Paragraph styles apply inside boxes, so −4.2 °C is a :::paragraphs{style="stat"} block in Bitter at 150 pt inside the Results panel (paragraph styles). The figure is written in bold, so it prints in Bitter 700 and in the style's boldColor, the orange of the panel. A second style gives the references a 9 mm hanging indent. The keyword strip is a tinted box with placement="bottom", floated to the foot of the page under the grid.

The whole recipe

Sandbox
// ═══ Postext Cookbook · Nº 059 · Research poster on one big page ══════════════════
// https://postext.dev/en/cookbook/research-poster
// Code: MIT · Text and data: original, synthetic (CC BY 4.0) · Figures: generated in code
// Fonts: Rethink Sans, Bitter, Saira Condensed (SIL OFL 1.1) · Needs postext ≥ 1.28.0
import {
  buildDocumentWithFonts, renderPage, renderPageToCanvas, registerResourceImage,
  defaultResourceTypes, inlineSvgFonts,
} from 'https://esm.sh/postext';

const LANG = 'en'; // @lang: the language of the sample document ('en' | 'es')
const RECIPE = 'research-poster';

// ─── 1 · Design ─────────────────────────────────────────────────────────────
// #region palette: six colours for the poster, four for the heat map's key
const palette = {
  ink: '#102a2c', // text: a green-black
  paper: '#f7faf7', // the sheet, and type on the band
  canopy: '#2e7d4f', // the band, the stripes and titles of five panels, the tree crowns
  tint: '#e6f2ea', // the keyword strip, the park on the plan, lines of type on the band
  rule: '#bcd2c4', // buildings on the plan, the chart's grid
  muted: '#587068', // the notes under the figures, the axis titles inside them
  // The key of Figure 2, the air against the street mean at the same hour. The heat map's
  // cells and the :swatch runs of its key read the same four entries.
  cool: '#3b82c4', // −1.5 °C or less
  mist: '#a9c9e6', // −1.5 to 0 °C
  blush: '#f2b492', // 0 to +1.5 °C
  heat: '#d9572b', // +1.5 °C or more; also −4.2 °C, the Results panel, the loggers, the sun
};
// Every colour is linked to its palette entry by id.
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = [ // defaults link to 'main-color': point it at the canopy green
  ...Object.entries(palette).map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } })),
  { id: 'main-color', name: 'canopy (defaults)', value: { hex: palette.canopy, model: 'hex' } },
];
// #endregion

// #region sheet: one 600 × 800 mm page, laid out at 72 dpi
const SHEET = { width: 600, height: 800, margin: 25 }; // mm: a portrait board, 25 mm all round
const GAP = 12; // mm between the two body columns and between the three panel columns
// The summary's leading is the page's baseline grid: 56 lines fill the 750 mm between the
// margins, so a box floated to the foot of the page ends on the bottom margin.
const LEAD = (((SHEET.height - 2 * SHEET.margin) / 25.4) * 72) / 56; // 37.96 pt
const page = { width: mm(SHEET.width), height: mm(SHEET.height),
  // At 72 dpi a point is a pixel: the page is 1,701 × 2,268 px. The default 300 dpi would give
  // 7,087 × 9,449 px (268 MB of canvas) for the same line breaks.
  dpi: 72, backgroundColor: col('paper'),
  margins: { top: mm(SHEET.margin), bottom: mm(SHEET.margin), left: mm(SHEET.margin),
    right: mm(SHEET.margin) } }; // one sheet, nothing to mirror

The composed script.js runs as it is: paste it into any page’s module script, or open the recipe on CodePen. Recipe folder on GitHub ↗ (opens in a new tab)

Variations

#Export the e-poster at 150 dpi

A meeting that asks for a larger file gets a 3,543 × 4,724 px PNG with the same line breaks.

-  dpi: 72, backgroundColor: col('paper'),
+  dpi: 150, backgroundColor: col('paper'),

Pitfalls

  • Rethink Sans draws a single figure in parentheses, such as the issue number in 11(3), as a circled figure on the canvas, so the references give the volume and the pages only.
  • A page-span box that ends the document moves to a new page unless two body lines of room are left under it. So the keyword strip is floated with placement="bottom", which sets it on the bottom margin, in the 50 mm left under the grid.
  • containerSpacing: 'add' on the styles stat and refs ends their :::paragraphs groups on the style's own space, which keeps −4.2 °C on the line that explains it; every other group of the poster follows the document's rule (since postext 1.28; before it the rule could only be set for the whole document, with bodyText.paragraphContainerSpacing). Under the last reference that space is the style's spaceBetween, 2.8 mm, so a :::space{lines=0.75} before the acknowledgement opens 10.8 mm, near the 10.6 mm between the other paragraphs of a panel. Without it, under the document's 'collapse', a group is followed by a line of the panel's paragraph spacing: the acknowledgement needs no :::space, but the line it adds under −4.2 °C pushes the keyword strip to a second page.

Credits

Text
Original prose, CC BY 4.0
Images
  • The plan of the street, the heat map, the bar chart and the School of Geography's mark, drawn in code from synthetic data in the poster's palette · Ignacio Ferro · CC BY 4.0
Fonts
Rethink Sans (SIL OFL 1.1) · Bitter (SIL OFL 1.1) · Saira Condensed (SIL OFL 1.1)
Sandbox
