Recipe number 89

Cookbook · Chapter 5 · Book structure

A history essay with Chicago notes

A four-page history essay whose [@key, 87] citations become Chicago notes at the foot of the page: full the first time, short after that, with a bibliography.

On this page
Output
Canvas · PDF
Postext
Tested with Postext 1.65.0
Needs ≥ 1.25.0 · postext-pdf ≥ 1.25.0
Licence
Updated 11 Oct 2026
Code MIT · Text CC BY 4.0
  • Trim 156 × 234 mm
  • 1 column
  • Crimson Pro 11/14
  • IBM Plex Sans Condensed
  • 4 pages
  • Level
  • Postext 1.57.1
  • Laid out in 607 ms
  • 131 lines of code

In short

An essay on how British towns came to keep London time. Each source the author cites becomes a numbered note at the foot of the page, and the list of works comes at the end.

What you'll build

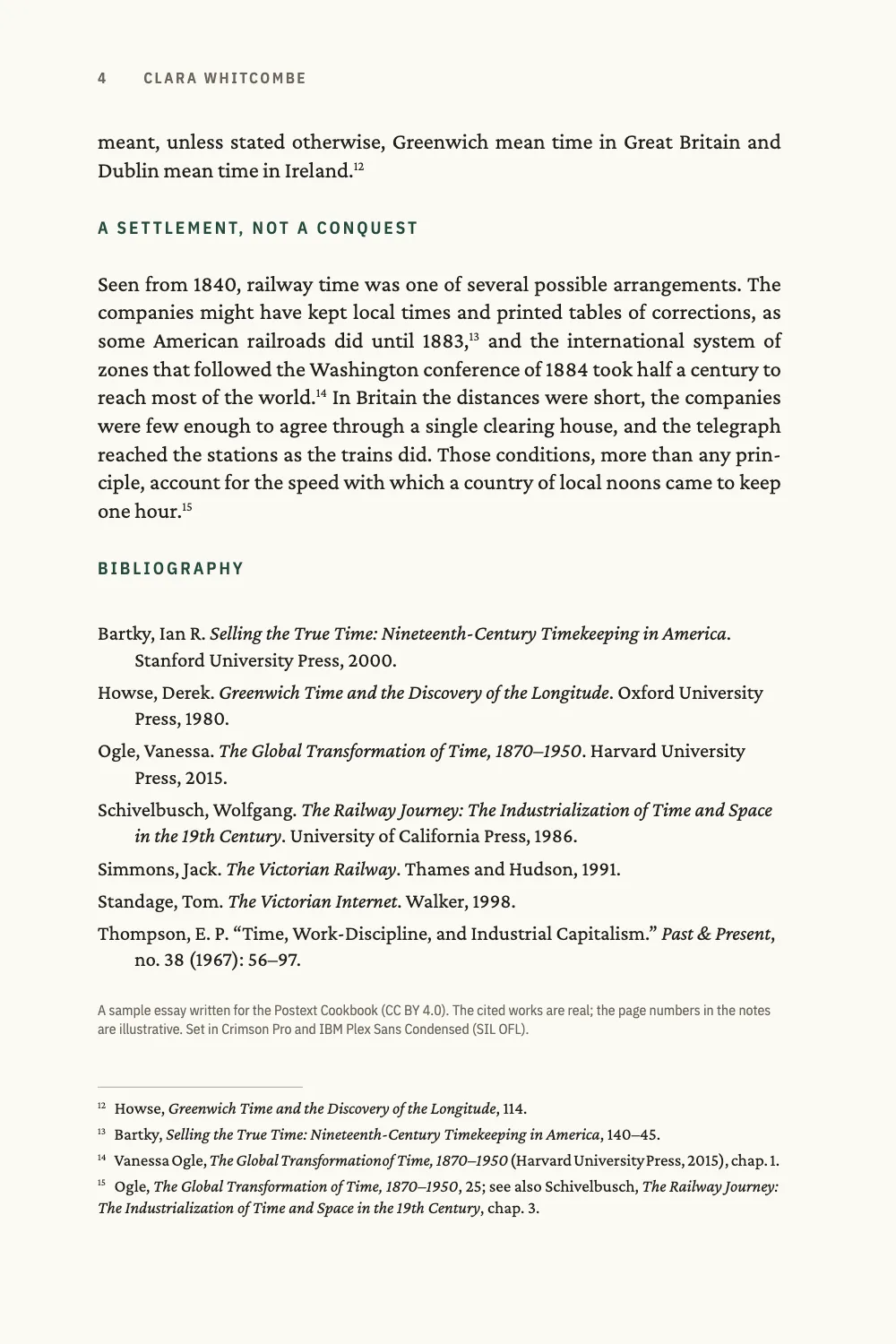

An offprint from a journal’s history-of-technology series: an essay of about 1,100 words on how British towns gave up their own noon for London’s between 1840 and 1880. The page is 156 × 234 mm, mirrored, in Crimson Pro at 11/14 pt, with a railway-green band over the top half of the first page. The author writes every source as a key, [@howse1980, 87], and Postext sets each one as a numbered note at the foot of the page in Chicago notes-and-bibliography style. The first note for a work gives author, title and publisher; every later one gives the short form. The author’s own discursive notes take their numbers from the same sequence, and the bibliography closes the essay.

This recipe answers

  • How do I set citations as footnotes, Chicago style, with short forms for later citations?
  • How do I cite works and build the bibliography in APA, IEEE or another citation style?

The short answer

script.js · lines 32–49in full code
// The text cites with [@howse1980, 87]; a note style turns every citation into a
// footnote. The first note for a work gives it in full, later ones in the short form
// (author, short title, page), and the bibliography lists the works by author.
registerCitationEngine(createCiteprocEngine({ styles: STYLES, locales: LOCALES }));
const citations = {
  style: 'chicago-notes-bibliography', // CMOS 18th edition, notes and bibliography
  notes: 'footnote', // each citation in a note at the foot of the page
  link: true, // a note's citation jumps to its bibliography entry
  bibliography: { fontSize: em(0.92), lineHeight: pt(13), hangingIndent: em(1.8),
    entrySpacing: pt(3) },
};
// The citation notes share the numbering and the look of the author's own [^notes].
const footnotes = {
  placement: 'column', numbering: 'chapter',
  fontSize: pt(8.5), lineHeight: pt(10.75), spaceBetween: pt(2),
  textAlign: 'left', // ragged: the gap after a note's number stays the same in every note
  separator: { width: 0.3, lineWidth: pt(0.5), color: col('rule') },
};

Chicago notes and bibliography, one note per citation

Ingredients

Type
Crimson Pro, IBM Plex Sans Condensed (SIL OFL 1.1)
Assets
None: every picture is drawn in code

Method

#1 · A note for every citation

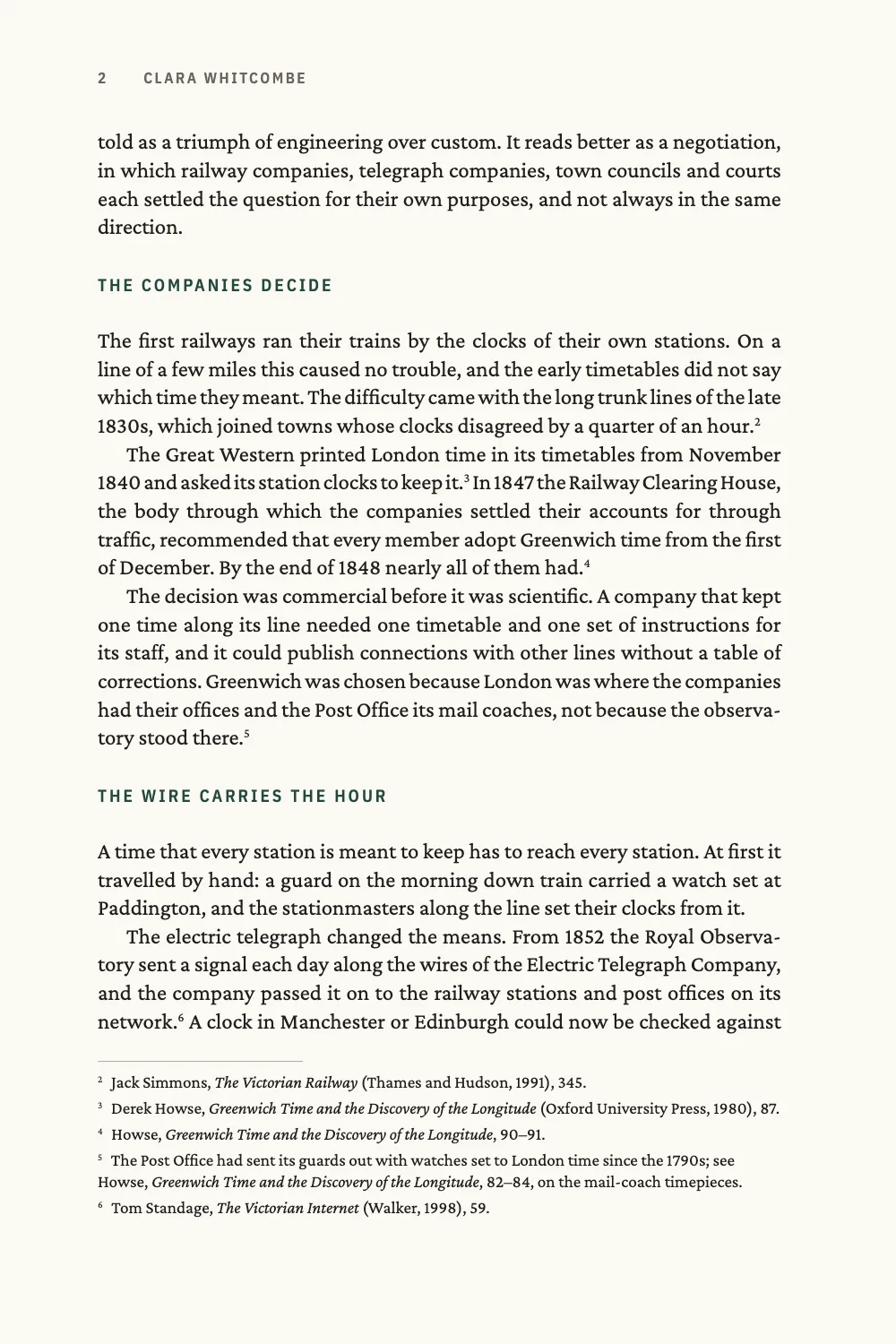

The code is the short answer above. chicago-notes-bibliography is a note style, so a citation in the text leaves a superscript number and its words go to a footnote numbered with the author’s own [^notes]; notes: 'footnote' says so explicitly. citeproc-js tracks which works it has already cited, so note 3 reads Derek Howse, Greenwich Time and the Discovery of the Longitude (Oxford University Press, 1980), 87 and note 4, citing the same book again, reads Howse, Greenwich Time and the Discovery of the Longitude, 90–91. The bundled style is the 18th edition of the Chicago Manual, which drops Ibid. and repeats the short form, so notes 11 and 12 print the short form twice.

#2 · Notes the author writes cite too

A citation inside a [^note] stays in that note and is set inline, in full if it is the work’s first appearance: note 1 is the author’s sentence followed by Schivelbusch’s full reference. Every citation ends with the style’s full stop, so a note that closes on a citation needs no full stop of its own in the Markdown.

#3 · Prefixes, suffixes and locators

[see @simmons1991, 346–47; and @bartky2000, chap. 9] puts see before the first work, separates the two with a semicolon and keeps each work’s locator. A bare number is a page; chap. and cap. name a chapter in either language. Text after the locator is a suffix: [@howse1980, 82–84, on the mail-coach timepieces] prints the phrase after the pages.

#4 · The opener sits in a band

script.js · lines 53–74in full code
const BAND = 122; // mm from the trim's top
const opener = {
  enabled: true,
  minHeight: mm(BAND - MARGIN.top + 9), // the text starts 9 mm under the band
  slot: { elements: [
    { kind: 'box', id: 'band', style: { backgroundColor: col('green') },
      placement: { ...at('page', 'top-left'), size: { width: 'fill', height: mm(BAND) } } },
    { kind: 'text', id: 'kicker', content: '{attr.kicker}', fontFamily: LABEL, fontWeight: 600,
      fontSize: pt(7.5), letterSpacing: pt(1.4), textTransform: 'uppercase', color: col('tint'),
      align: 'left', placement: at('container', 'top-left', 0, 4) },
    { kind: 'text', id: 'years', content: '{attr.years}', fontFamily: TEXT, fontWeight: 300,
      fontSize: pt(54), lineHeight: 1, color: col('tint'), align: 'left',
      placement: at('container', 'top-left', -1, 16) },
    { kind: 'text', id: 'title', content: '{titleText}', fontFamily: TEXT, fontWeight: 600,
      fontSize: pt(25), lineHeight: 1.08, color: col('paper'), align: 'left', overflow: 'wrap',
      placement: { ...at('container', 'top-left', 0, 47),
        size: { width: mm(112), height: 'auto' } } },
    { kind: 'text', id: 'byline', content: '{attr.byline}', fontFamily: LABEL, fontWeight: 600,
      fontSize: pt(9), letterSpacing: pt(0.6), color: col('tint'), align: 'left',
      placement: at('container', 'top-left', 0, 92) },
  ] },
};

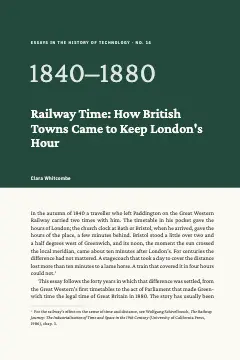

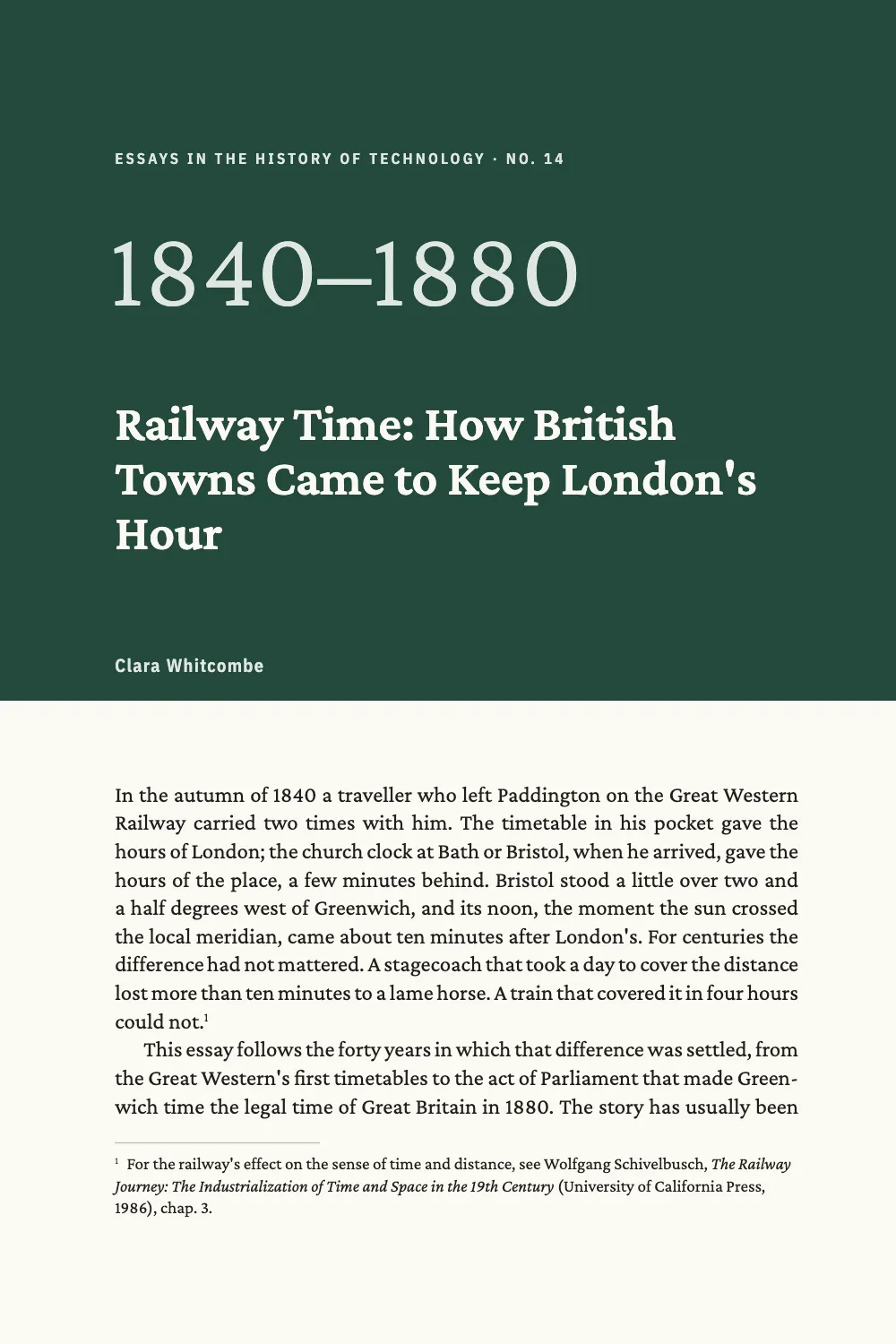

The band runs 122 mm down from the trim and the text starts 9 mm below it. The dates come from a heading attribute, years="1840–1880", set in Crimson Pro Light at 54 pt, so the card shows a figure as large as a title; the byline attribute also feeds the running head on the versos.

script.js · lines 16–23in full code
const palette = {
  ink: '#211d1a', green: '#24493d', tint: '#dfe8e2', rule: '#b7b0a4', muted: '#6a645b',
  paper: '#fbf9f4',
};
// col() links a colour to its palette entry; the hex is the value the entry holds today.
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = Object.entries({ ...palette, 'main-color': palette.green })
  .map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));

The whole recipe

Sandbox
// ═══ Postext Cookbook · Nº 089 · A history essay with Chicago notes ═══════════════
// https://postext.dev/en/cookbook/history-essay-chicago-notes
// Code: MIT · Text: original (CC BY 4.0) · Pictures: none
// Fonts: Crimson Pro, IBM Plex Sans Condensed (SIL OFL 1.1) · Needs postext ≥ 1.25.0
import {
  buildDocumentWithFonts, renderPageToCanvas, registerCitationEngine,
} from 'https://esm.sh/postext';
import { renderToPdf, decompressWoff2 } from 'https://esm.sh/postext-pdf';
import { createCiteprocEngine, STYLES, LOCALES } from 'https://esm.sh/postext-citeproc';

const LANG = 'en'; // @lang: the language of the sample document ('en' | 'es')
const RECIPE = 'history-essay-chicago-notes';

// ─── 1 · Design ─────────────────────────────────────────────────────────────
// #region palette: a railway green for the opener band, ink and warm paper for the rest
const palette = {
  ink: '#211d1a', green: '#24493d', tint: '#dfe8e2', rule: '#b7b0a4', muted: '#6a645b',
  paper: '#fbf9f4',
};
// col() links a colour to its palette entry; the hex is the value the entry holds today.
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = Object.entries({ ...palette, 'main-color': palette.green })
  .map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));
// #endregion
const TEXT = 'Crimson Pro', LABEL = 'IBM Plex Sans Condensed';
const TRIM = { width: 156, height: 234 }; // a journal offprint, trimmed like a trade book
const MARGIN = { top: 22, bottom: 22, inner: 20, outer: 17 };
const LEAD = 14; // pt
const at = (to, edge, x = 0, y = 0) => ({ anchor: { to, edge }, offset: { x: mm(x), y: mm(y) } });

// #region answer: Chicago notes and bibliography, one note per citation
// The text cites with [@howse1980, 87]; a note style turns every citation into a
// footnote. The first note for a work gives it in full, later ones in the short form
// (author, short title, page), and the bibliography lists the works by author.
registerCitationEngine(createCiteprocEngine({ styles: STYLES, locales: LOCALES }));
const citations = {
  style: 'chicago-notes-bibliography', // CMOS 18th edition, notes and bibliography
  notes: 'footnote', // each citation in a note at the foot of the page
  link: true, // a note's citation jumps to its bibliography entry
  bibliography: { fontSize: em(0.92), lineHeight: pt(13), hangingIndent: em(1.8),
    entrySpacing: pt(3) },
};
// The citation notes share the numbering and the look of the author's own [^notes].
const footnotes = {
  placement: 'column', numbering: 'chapter',
  fontSize: pt(8.5), lineHeight: pt(10.75), spaceBetween: pt(2),
  textAlign: 'left', // ragged: the gap after a note's number stays the same in every note
  separator: { width: 0.3, lineWidth: pt(0.5), color: col('rule') },

The composed script.js runs as it is: paste it into any page’s module script, or open the recipe on CodePen. Recipe folder on GitHub ↗ (opens in a new tab)

Variations

#Put the notes at the end

Some journals collect the notes after the essay; the citations keep their full and short forms.

-  placement: 'column', numbering: 'chapter',
+  placement: 'chapterEnd', numbering: 'chapter',

#Write Ibid. again

The 17th edition of the Chicago style prints Ibid. for a note that repeats the previous work. Paste that style’s .csl file, from the Zotero style repository, into a string and use it as a custom style.

-  style: 'chicago-notes-bibliography', // CMOS 18th edition, notes and bibliography
+  style: 'custom', customStyle: CHICAGO_17TH_CSL, // the XML of the .csl file

Pitfalls

  • Do not end a note with a full stop after a citation: the style already closes the citation with one, and Postext does not merge the two, so the note would end in two full stops.
  • In a note style, @howse1980 without brackets leaves only the note number in the sentence, As ¹ says, with no author’s name. Write the name yourself and cite in brackets: As Howse says,[@howse1980].
