One text in four citation styles

// ═══ Postext Cookbook · Nº 093 · One text in four citation styles ════════════════
// https://postext.dev/en/cookbook/one-text-four-citation-styles
// Code: MIT · Text: original (CC BY 4.0) · Pictures: none
// Fonts: Source Serif 4, Source Sans 3 (SIL OFL 1.1) · Needs postext ≥ 1.12.0
import {
  buildDocument, renderPageToCanvas, clearMeasurementCache, registerCitationEngine,
} from 'https://esm.sh/postext';
import { createCiteprocEngine, STYLES, LOCALES } from 'https://esm.sh/postext-citeproc';

const LANG = 'en'; // @lang: the language of the sample document ('en' | 'es')
const RECIPE = 'one-text-four-citation-styles';

// ─── 1 · Design ─────────────────────────────────────────────────────────────
// #region palette: one ink, and a colour for each style's band
const palette = {
  ink: '#1d1b19', muted: '#66605a', rule: '#cfc8bf', paper: '#ffffff',
  apa: '#2f5d8a', chicago: '#8c2f2b', ieee: '#24476b', iso: '#3c6b4f', // the four bands
};
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
// Each document points main-color at its own band, so any default left follows it.
const colorPalette = (band) => Object.entries({ ...palette, 'main-color': palette[band] })
  .map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));
// #endregion
const [SERIF, SANS] = ['Source Serif 4', 'Source Sans 3'];
const LEAD = 14; // pt

// #region answer: the style is one setting; everything else stays the same
// Citations are written once, Pandoc's way: [@key], [@a; @b], [-@key] without the author,
// @key [p. 17] inside the sentence. citeproc-js writes them, and the list, in the style named.
registerCitationEngine(createCiteprocEngine({ styles: STYLES, locales: LOCALES }));
const SHOWN = [ // the same text, built once per entry

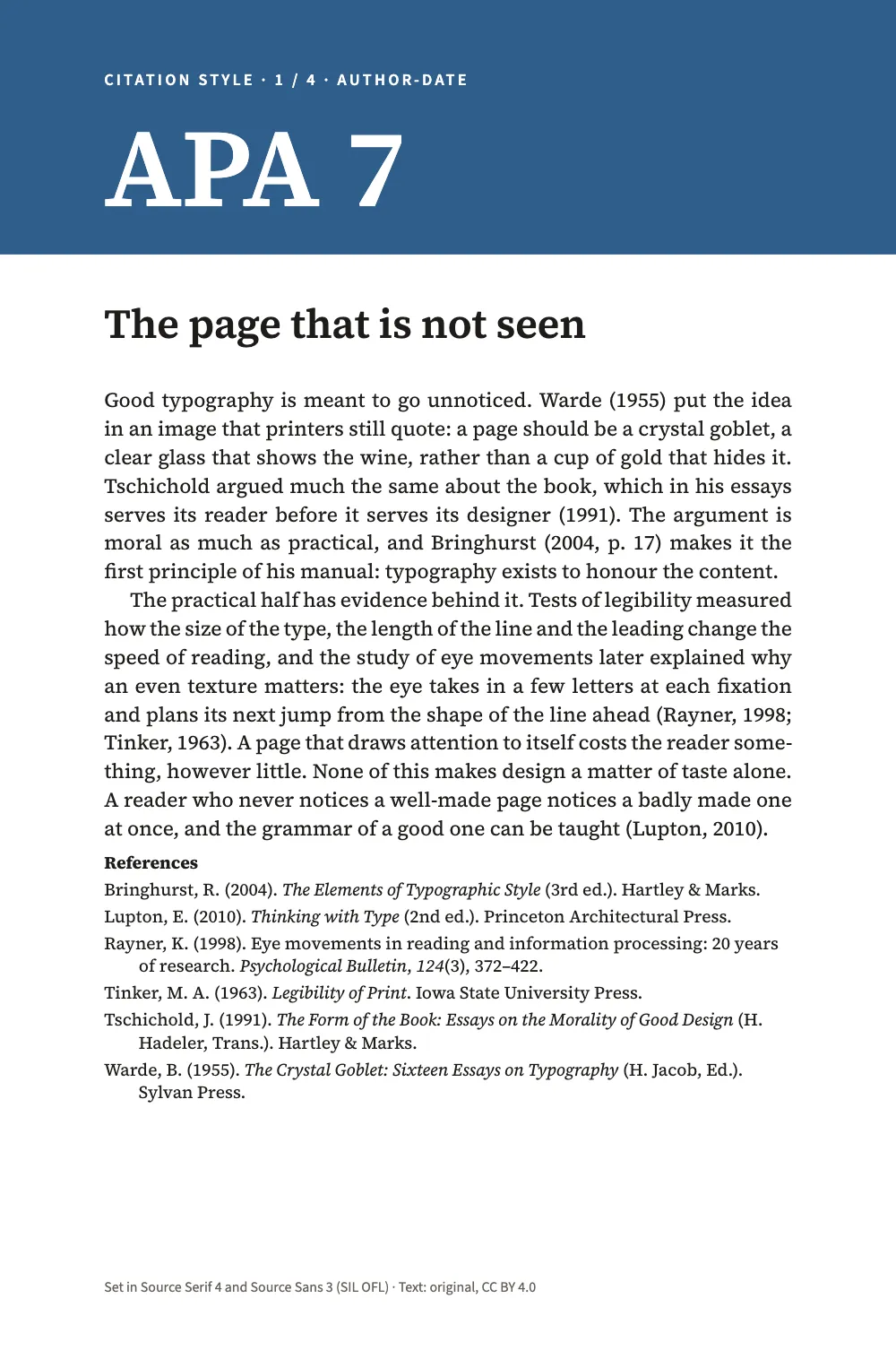

  { style: 'apa', band: 'apa', name: 'APA 7', system: t({ en: 'author-date', es: 'autor-año' }) },

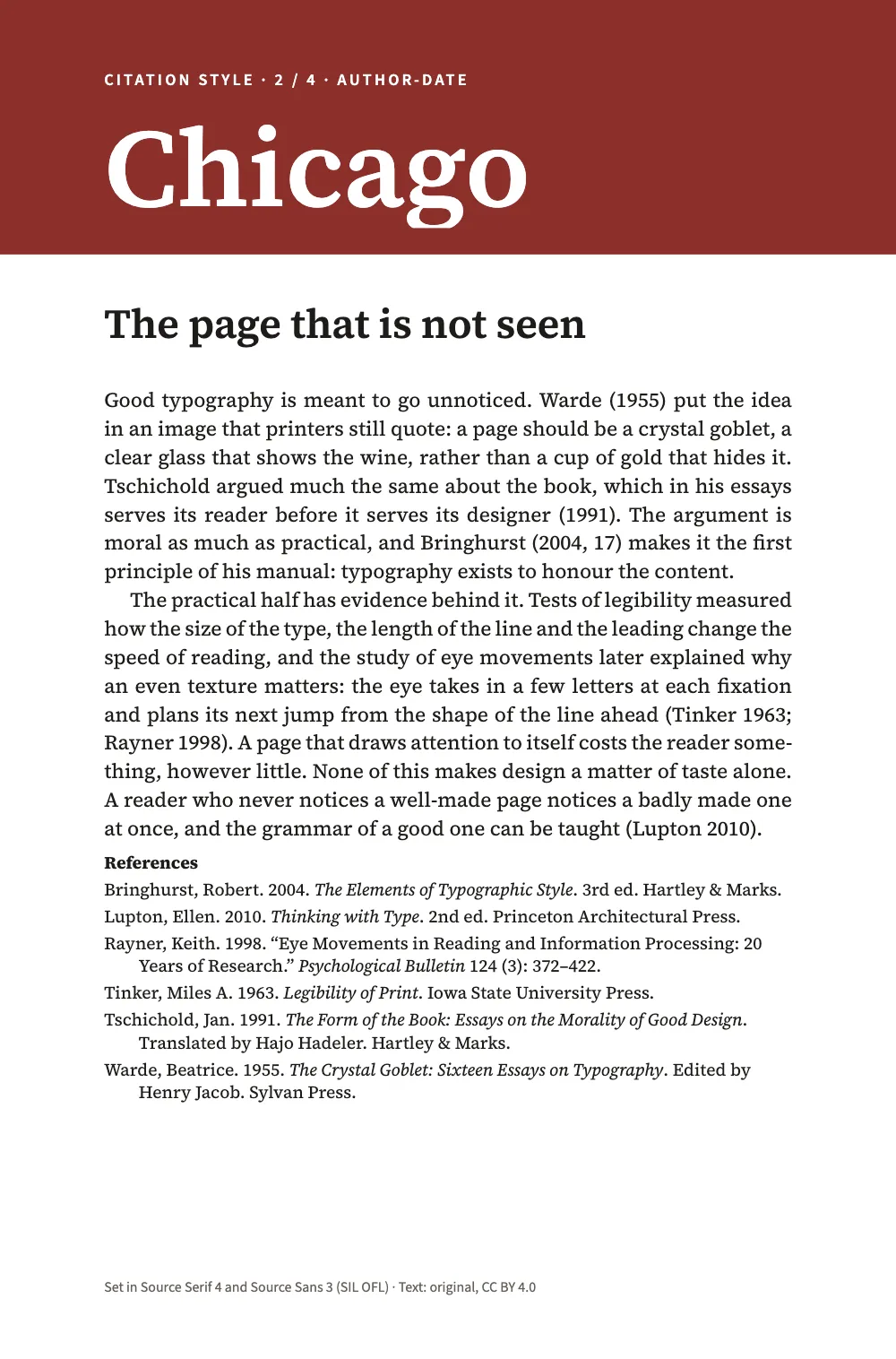

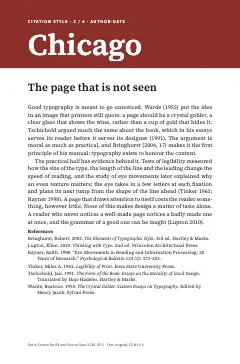

  { style: 'chicago-author-date', band: 'chicago', name: 'Chicago',
    system: t({ en: 'author-date', es: 'autor-año' }) },

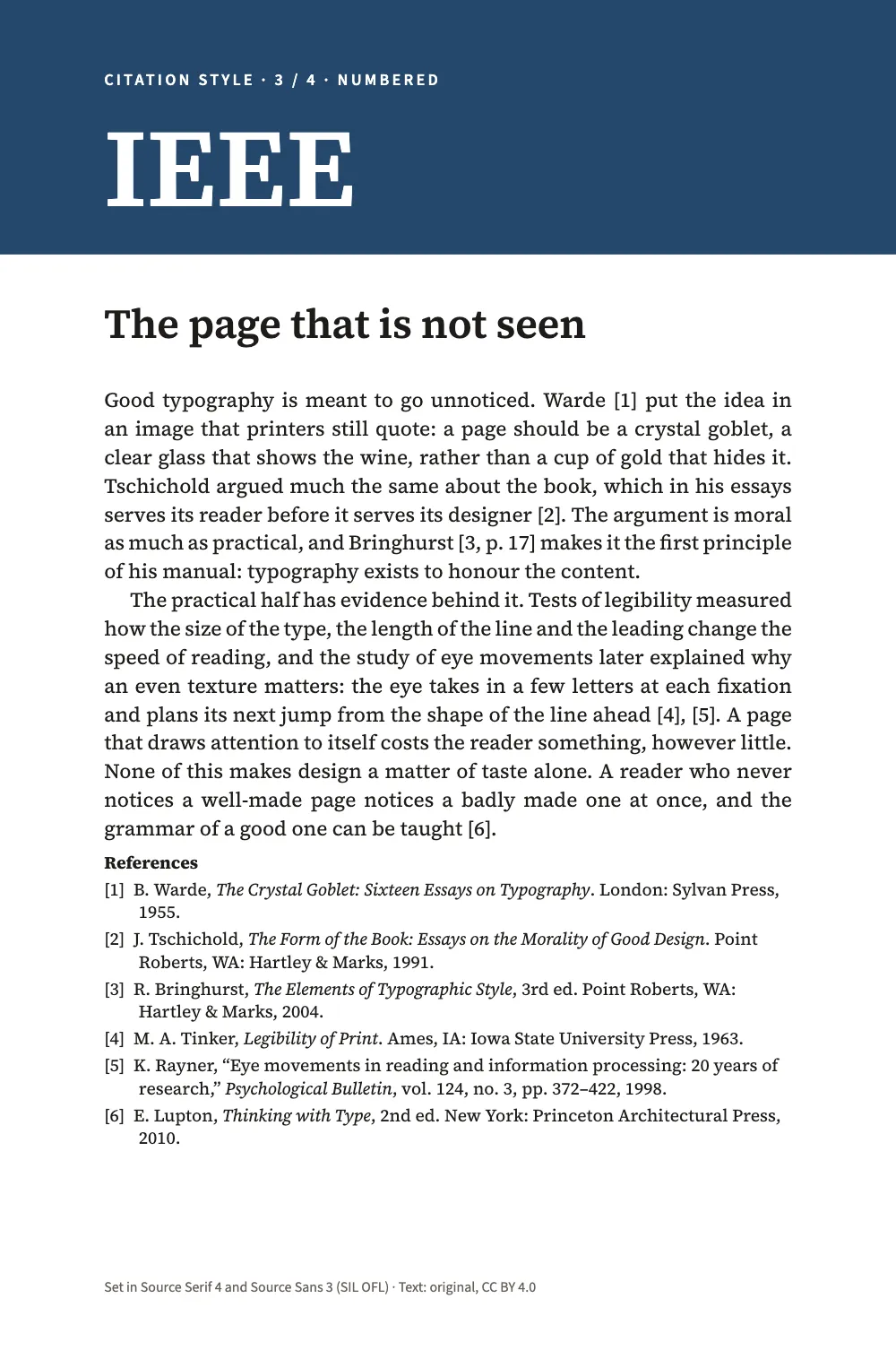

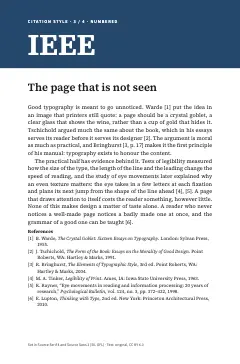

  { style: 'ieee', band: 'ieee', name: 'IEEE', system: t({ en: 'numbered', es: 'numérico' }) },

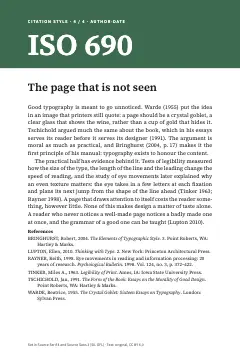

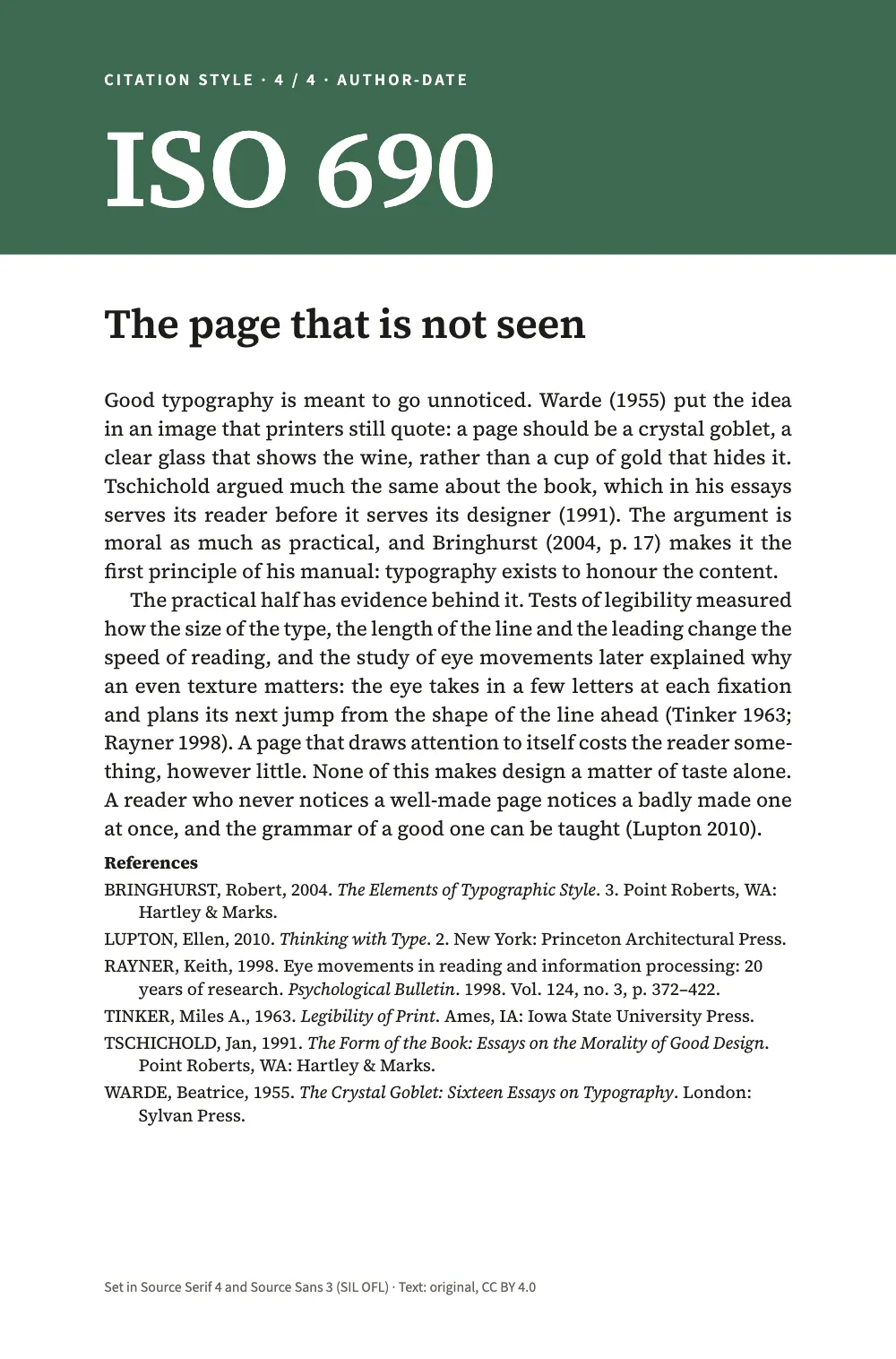

  { style: t({ en: 'iso690-author-date-en', es: 'iso690-author-date-es' }), band: 'iso',
    name: 'ISO 690', system: t({ en: 'author-date', es: 'autor-año' }) },
];
const citations = (style) => ({
  style, // 'apa' → '(Warde, 1955)'; 'ieee' → '[1]'; the list is sorted and set to match
  link: true,
  bibliography: { fontSize: em(0.85), lineHeight: pt(11.2), hangingIndent: mm(6),
    entrySpacing: pt(2), labelWidth: mm(6), doi: 'hide' },
});
// #endregion

// #region band: the style's name, large, in a band of its colour
const opener = (s, i) => ({
  enabled: true,
  minHeight: mm(41), // from the top margin to under the title, 63 mm from the trim
  slot: { elements: [
    { kind: 'box', id: 'band', style: { backgroundColor: col(s.band) },
      placement: { anchor: { to: 'page', edge: 'top-left' },
        size: { width: 'fill', height: mm(44) } } },
    { kind: 'text', id: 'kicker', content: `${t({ en: 'Citation style', es: 'Estilo de cita' })}`
      + ` · ${i + 1} / ${SHOWN.length} · ${s.system}`, fontFamily: SANS, fontSize: pt(8),
    fontWeight: 600, letterSpacing: pt(1.4), textTransform: 'uppercase', color: col('paper'),
    align: 'left',
    placement: { anchor: { to: 'page', edge: 'top-left' }, offset: { x: mm(18), y: mm(12) } } },
    { kind: 'text', id: 'name', content: s.name, fontFamily: SERIF, fontSize: pt(54),
      fontWeight: 600, lineHeight: 1, color: col('paper'), align: 'left', overflow: 'clip',
      placement: { anchor: { to: '#kicker', edge: 'below' }, offset: { x: mm(0), y: mm(5) },
        size: { width: mm(119), height: 'auto' } } },
    { kind: 'text', id: 'title', content: '{titleText}', fontFamily: SERIF, fontSize: pt(20),
      fontWeight: 600, lineHeight: 1.15, color: col('ink'), align: 'left', overflow: 'wrap',
      placement: { anchor: { to: 'page', edge: 'top-left' }, offset: { x: mm(18), y: mm(52) },
        size: { width: mm(119), height: 'auto' } } },
  ] },
});
// #endregion

let at = 0; // the entry of SHOWN being built
const config = () => ({ // a factory: the engine caches resolved configs per object
  locale: t({ en: 'en-us', es: 'es' }),
  colorPalette: colorPalette(SHOWN[at].band),
  citations: citations(SHOWN[at].style),
  page: { sizePreset: 'custom', width: mm(155), height: mm(235), dpi: 150,
    margins: { top: mm(22), bottom: mm(20), left: mm(18), right: mm(18) } },
  layout: { layoutType: 'single' },
  bodyText: {
    fontFamily: SERIF, fontSize: pt(10), lineHeight: pt(LEAD), color: col('ink'),
    boldColor: col('ink'), italicColor: col('ink'), referenceColor: col('ink'),
    textAlign: 'justify', firstLineIndent: mm(4.5), indentAfterHeading: false,
    hyphenation: { enabled: true }, optimalLineBreaking: true,
    avoidWidows: true, avoidOrphans: true, avoidRunts: true,
  },
  headings: { fontFamily: SERIF, color: col('ink'), levels: [
    { level: 1, breakBefore: { enabled: true, parity: 'any' }, // gotcha: headings-drop-h1-break
      advancedDesign: opener(SHOWN[at], at) },
  ] },
  header: { elements: [] },
  footer: { elements: [
    { kind: 'text', id: 'colophon', content: t({
      en: 'Set in Source Serif 4 and Source Sans 3 (SIL OFL) · Text: original, CC BY 4.0',
      es: 'Compuesto en Source Serif 4 y Source Sans 3 (SIL OFL) · Texto: original, CC BY 4.0' }),
    fontFamily: SANS, fontSize: pt(7), color: col('muted'),
    placement: { anchor: { to: 'page', edge: 'bottom-left' }, offset: { x: mm(18), y: mm(-11) } } },
  ] },
});

// ─── 2 · Content ────────────────────────────────────────────────────────────
const markdown = String.raw`---
Markdown sample · 33 lines · content.en.md
title: "The invisible page"
author: "Postext Cookbook"
---

# The page that is not seen

Good typography is meant to go unnoticed. @warde1955 put the idea in an image that printers still quote: a page should be a crystal goblet, a clear glass that shows the wine, rather than a cup of gold that hides it. Tschichold argued much the same about the book, which in his essays serves its reader before it serves its designer [-@tschichold1991]. The argument is moral as much as practical, and @bringhurst2004 [p. 17] makes it the first principle of his manual: typography exists to honour the content.

The practical half has evidence behind it. Tests of legibility measured how the size of the type, the length of the line and the leading change the speed of reading, and the study of eye movements later explained why an even texture matters: the eye takes in a few letters at each fixation and plans its next jump from the shape of the line ahead [@tinker1963; @rayner1998]. A page that draws attention to itself costs the reader something, however little. None of this makes design a matter of taste alone. A reader who never notices a well-made page notices a badly made one at once, and the grammar of a good one can be taught [@lupton2010].

:::references{format=bibtex}
@book{warde1955,
  author = {Warde, Beatrice}, title = {The Crystal Goblet: Sixteen Essays on Typography},
  editor = {Jacob, Henry}, publisher = {Sylvan Press}, address = {London}, year = 1955}
@book{tschichold1991,
  author = {Tschichold, Jan}, title = {The Form of the Book: Essays on the Morality of Good Design},
  translator = {Hadeler, Hajo}, publisher = {Hartley \& Marks}, address = {Point Roberts, WA},
  year = 1991}
@book{bringhurst2004,
  author = {Bringhurst, Robert}, title = {The Elements of Typographic Style}, edition = {3},
  publisher = {Hartley \& Marks}, address = {Point Roberts, WA}, year = 2004}
@book{tinker1963,
  author = {Tinker, Miles A.}, title = {Legibility of Print},
  publisher = {Iowa State University Press}, address = {Ames, IA}, year = 1963}
@article{rayner1998,
  author = {Rayner, Keith},
  title = {Eye movements in reading and information processing: 20 years of research},
  journal = {Psychological Bulletin}, volume = 124, number = 3, pages = {372--422}, year = 1998,
  doi = {10.1037/0033-2909.124.3.372}}
@book{lupton2010,
  author = {Lupton, Ellen}, title = {Thinking with Type}, edition = {2},
  publisher = {Princeton Architectural Press}, address = {New York}, year = 2010}
:::
`;

// ─── 3 · Fonts ──────────────────────────────────────────────────────────────
const FONTS = {
  'Source Serif 4': ['400', '400i', '600', '600i', '700', '700i'], // 700: the list's title
  'Source Sans 3': ['400', '600'],
};

// ─── 4 · Build & show ───────────────────────────────────────────────────────
await loadFonts(FONTS, markdown);
// #region build: one text, four documents, shown as two spreads
// The style is set for the whole document, so each style is a build of its own.
const docs = [];
for (at = 0; at < SHOWN.length; at++) {
  // pageIndexOffset makes each page the next one of a book, so the desk pairs them:
  // APA beside Chicago, IEEE beside ISO 690.
  const content = { markdown, continuation: { pageIndexOffset: at + 1 } };
  docs.push(await buildWithFonts(() => buildDocument(content, config()), markdown));
}
// #endregion
showPages(docs, { title: t({ en: 'One text, four styles', es: 'Un texto, cuatro estilos' }) });
