Receta número 67

Recetario · Capítulo 7 · Figuras e imágenes

Hoja de atlas: mapas numerados y una carta girada

Mapas con numeración propia y el pie sobre una barra azul, una leyenda de muestras en los colores de los mapas y una carta náutica girada en la página 3.

  • Formato 230 × 300 mm
  • 2 columnas, medianil de 6 mm
  • Alegreya Sans 9,5/13,5
  • Alegreya Sans SC
  • Marcellus
  • 4 páginas
  • Nivel
  • Postext 1.57.1
  • Compuesto en 61 ms
  • 243 líneas de código

En pocas palabras

Cuatro páginas de un atlas de unas islas inventadas. Enseña a numerar los mapas por separado y a girar un mapa grande para que ocupe toda la página.

Lo que vas a componer

La primera hoja de un atlas de las islas Solan, un archipiélago inventado y dibujado en código a partir de un campo de alturas. La página 1 se abre con una banda azul oscuro, el nombre del atlas a 56 pt y una rosa de los vientos, y el mapa 1, el relieve del grupo, ocupa el pie de la página. El norte de la isla principal y el plano de su puerto encabezan las dos columnas de la página 2. En la página 3, la carta va girada un cuarto de vuelta para que su cuadrícula de 8 km llene la página. La página 4 recoge el nomenclátor, diecisiete lugares en discos rojos con su cuadro de la carta, y abajo, el pie de imprenta. Cada mapa lleva el pie encima, sobre una barra azul, y la leyenda del mapa 1 es una línea de muestras con sus colores.

Esta receta responde a

  • ¿Cómo añado una figura con pie numerado y la cito en el texto («véase la fig. 3.2»)?
  • ¿Cómo decido dónde va una figura: en la cabeza de la página, a lo ancho de las dos columnas, justo aquí o al margen?
  • ¿Cómo añado muestras de color como leyenda en el texto, los pies o las notas de tabla?

La respuesta corta

script.js · líneas 34–52en el código completo
// Every caption stands above its drawing or table, in the label face. Maps count 1, 2, 3…
// through the atlas as a type of their own and set their caption on a bar in the band colour.
const captionStyle = { fontFamily: LABEL, fontSize: pt(9), labelColor: col('band'),
  position: 'above', gap: mm(1.6), note: { fontSize: pt(7.8), color: col('muted') } };
const MAP_WORD = t({ en: 'Map', es: 'Mapa' });
const mapType = { id: 'map', name: MAP_WORD, shortLabel: MAP_WORD, captionPrefix: MAP_WORD,
  numberingTemplate: '{n}', resetOn: 'never', counterFormat: 'decimal',
  captionStyle: { backgroundEnabled: true, background: col('band'), color: col('paper'),
    labelColor: col('paper'), padding: mm(1.4) } }; // the bar only; the rest is captionStyle's
// Each map floats from its first :ref to the first slot its placement allows.
const PLACEMENT = {
  relief: { position: 'bottom', span: 'page' }, // the foot of the page that cites it
  north: { position: 'top' }, // the head of the next free column
  harbour: { position: 'top' },
  chart: { rotate: 'ccw' }, // turned a quarter, top to the left, on a page of its own
};
// Drawing sizes in mm. Turned, the chart is laid out along 247.6 mm, the text area's 53 grid
// lines less one for the float gap; the bar and the note leave 182.2 mm of the 196 mm measure.
const MAP = { relief: [196, 136], north: [95, 88], harbour: [95, 88], chart: [247.6, 182.2] };

Ingredientes

Tipografía
Marcellus, Alegreya Sans, Alegreya Sans SC (SIL OFL 1.1)
Recursos
Ninguno: todas las imágenes se dibujan en código

Elaboración

#1 · Una paleta para la página y para los mapas

script.js · líneas 15–26en el código completo
const palette = {
  ink: '#23282b', paper: '#fbfaf6', // a blue-black on a warm white
  band: '#1f4a5c', // the accent: opener band, caption bars, table head, references
  road: '#b2432f', // the second colour: roads, lights and the place numbers
  muted: '#626a6d', rule: '#c8c2b4', // running heads and notes; hairlines
  deep: '#8fb9c6', sea: '#cfe3e8', // the maps' water: over and under 20 m
  land: '#efe6cf', hill1: '#d9c9a3', hill2: '#bfa97a', forest: '#7f9b6a', // and their land
};
// col(id) links a colour to its palette entry; the drawings read the same hex from `palette`.
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = Object.entries({ ...palette, 'main-color': palette.band }) // the defaults' id
  .map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));

Las seis tintas de los mapas son claves del mismo objeto que los colores de la página, así que colorPalette las incluye como entradas de la paleta y los dibujos toman de palette[id] los rellenos de su SVG. El blanco del papel tiene un contraste de 9,2:1 sobre band, el azul de la apertura, de las barras de los pies y de la fila de cabecera de la tabla. road, el único rojo, se reserva para carreteras, faros y números de lugar, con un contraste de 5,4:1 sobre el papel. main-color toma el hex de band, y los valores por defecto enlazan con ese identificador los títulos, las barras de los pies y las viñetas de las listas, así que cualquiera de ellos que la configuración no fije sale en el azul del atlas.

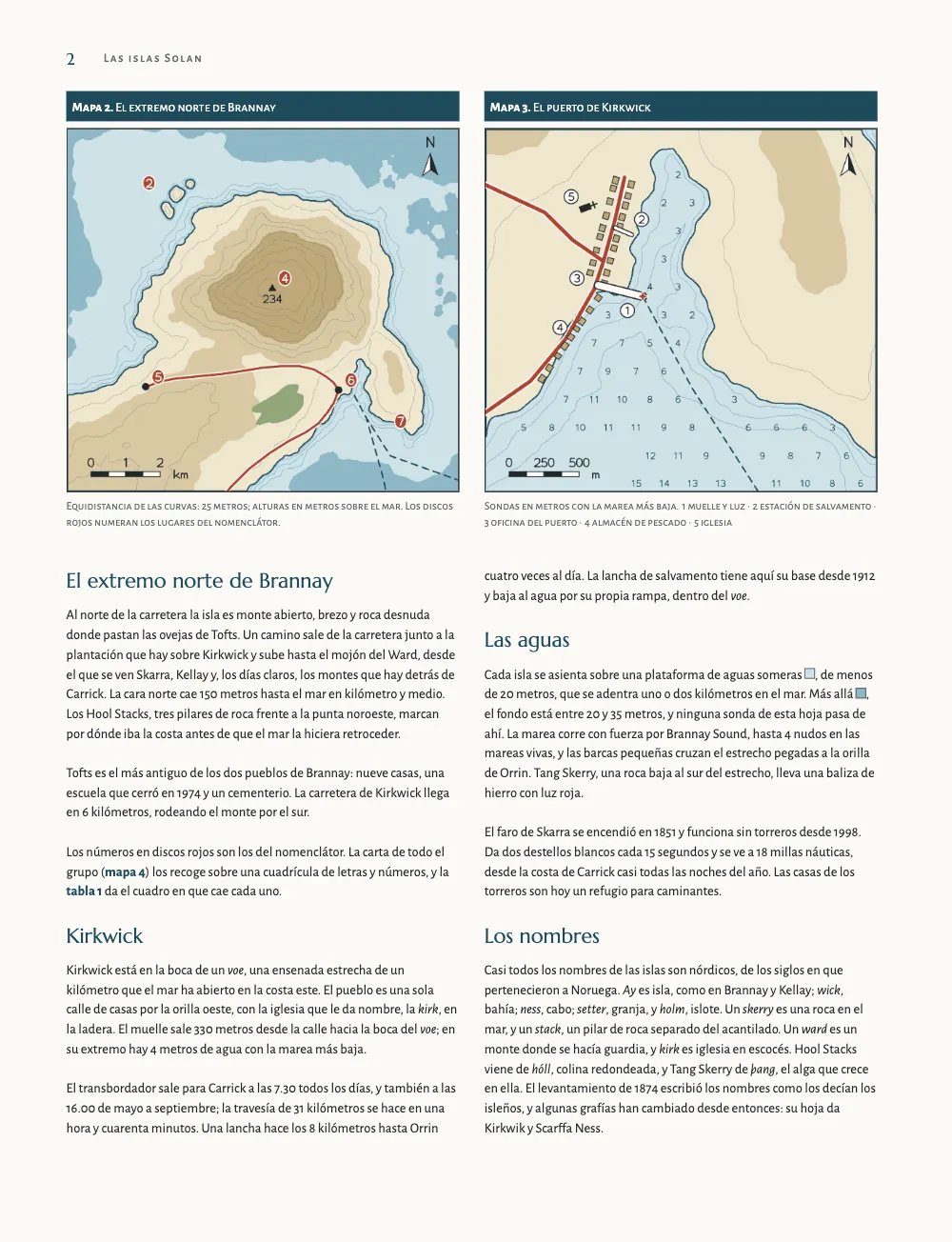

#2 · Adónde va cada mapa

El código es la respuesta corta, más arriba. El mapa 1 es un flotante bottom porque un flotante top a todo el ancho nunca cae en la página que lo cita. Los mapas 2 y 3 son flotantes top de columna citados en la página 1, así que encabezan las dos columnas de la página 2 (Colocación). rotate: 'ccw' lleva la parte de arriba de la carta al borde izquierdo y le deja la página 3 para ella sola. Girado, el dibujo mide 247,6 mm a lo largo de la página, las 53 líneas de la rejilla base de la caja menos una para el espacio del flotante, y 182,2 mm a lo ancho, lo que queda de la medida de 196 mm tras restar la barra del pie y la nota. Un dibujo más alto se reduciría y dejaría papel en blanco en la cabeza de la página.

#3 · Una leyenda con los mismos identificadores

script.js · líneas 56–67en el código completo
// The bands the maps are filled with, lowest first. Art and key share each palette id, so one hex
// changes both; the unit is spelled out once, since the small caps print an m as an M.
const RELIEF = [
  { id: 'deep', en: 'sea over 20', es: 'mar de más de 20' },
  { id: 'sea', from: -20, en: 'sea under 20', es: 'de menos de 20' },
  { id: 'land', from: 0, en: 'land to 50', es: 'tierra hasta 50' },
  { id: 'hill1', from: 50, en: '50–120', es: '50–120' },
  { id: 'hill2', from: 120, en: 'over 120', es: 'más de 120' },
  { id: 'forest', en: 'woodland', es: 'bosque' },
];
const legend = t({ en: 'In metres: ', es: 'En metros: ' }) // a thin space more after each swatch
  + RELIEF.map((band) => `:swatch{color="${band.id}"} \u2009${t(band)}`).join(' · ');

RELIEF enumera las franjas con su identificador de paleta y la altura en que empieza cada una. El dibujo rellena cada franja con palette[id] y la leyenda bajo el mapa 1 escribe un :swatch con el mismo identificador, así que un hex nuevo en la paleta cambia a la vez el dibujo y la leyenda. La leyenda da la unidad una sola vez y con todas sus letras, porque la nota va en Alegreya Sans SC, que imprime una m minúscula como una M versalita. En la página 2, el texto pone las mismas muestras junto a las dos profundidades del agua.

#4 · Los mapas son recursos, y su cita los numera y los coloca

script.js · líneas 615–667en el código completo
// A plan's key: a bare chip keeps each number on the line of its name, and the dot after it.
const key = (names) => names.map((name, i) => `:chip[${i + 1} ${name}${names[i + 1] ? ' ·' : ''}]`
  + '{style="key"}').join(' ');
const TEXTS = t({ // caption, the key under the drawing, and the alt text of each map
  en: {
    relief: ['The islands: relief and roads', `${legend} · roads in red, ferries dashed`,
      'Relief map of Brannay, Orrin, Kellay and Skarra in sand and ochre on blue water, with '
      + 'red roads.'],
    north: ['The north end of Brannay', 'Contour interval 25 metres; heights in metres above the '
      + 'sea. The red discs number the places of the gazetteer.', 'The Ward of Brannay, 234 m, in '
      + 'contours, with the Hool Stacks off its north-west point and the road round it to Tofts.'],
    harbour: ['Kirkwick harbour', 'Soundings in metres at the lowest tide. '
      + key(['ferry pier and light', 'lifeboat station', 'harbour office', 'fish store', 'kirk']),
      'Plan of Kirkwick: one street of houses on a narrow inlet, a pier into its mouth, depths '
      + 'from 2 to 15 m.'],

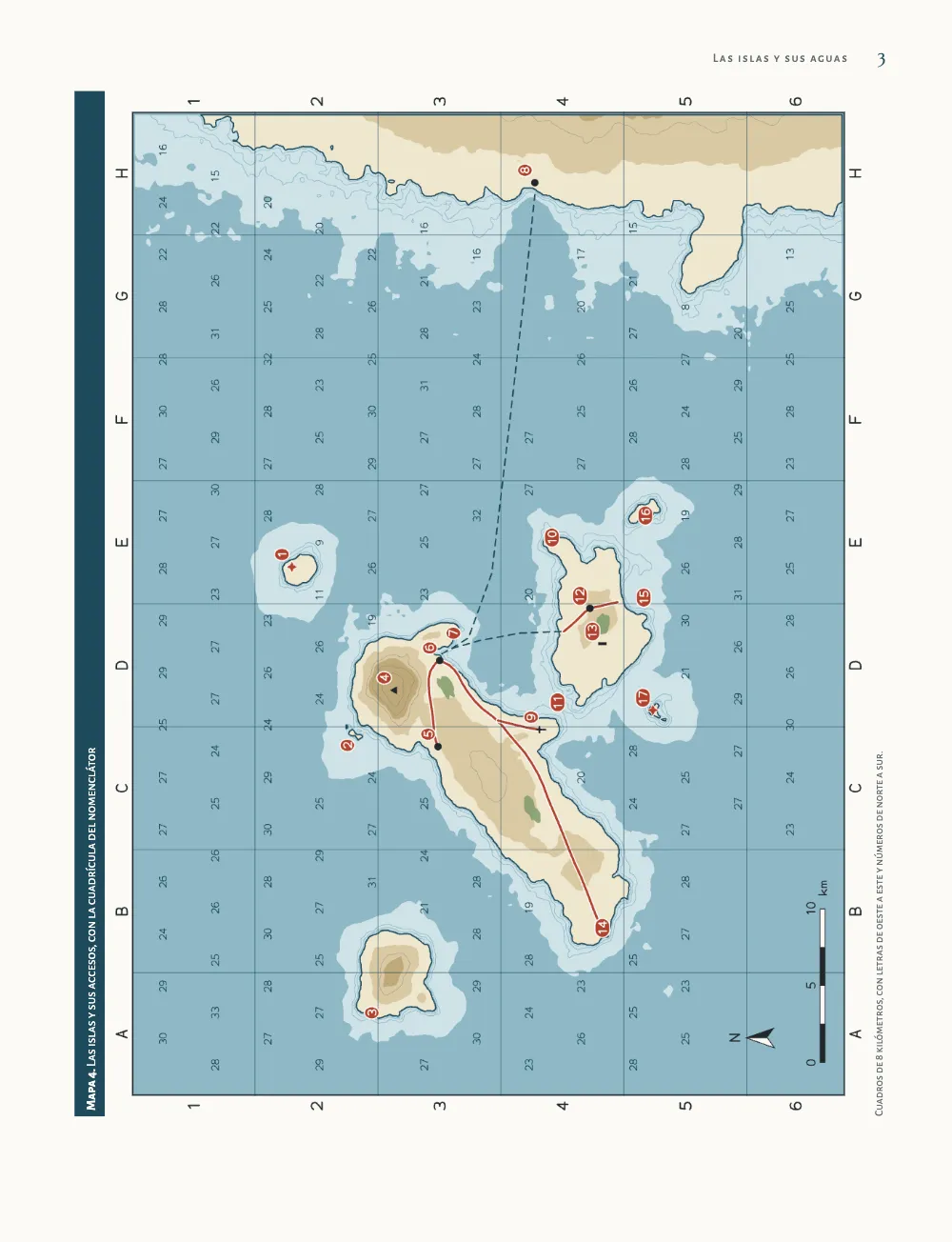

    chart: ['The islands and their approaches, with the gazetteer’s grid', 'Squares of 8 '
      + 'kilometres, lettered west to east and numbered north to south.', 'Chart of the group '
      + 'and the mainland coast on a lettered grid, with the seventeen places in red discs.'],
    table: ['Gazetteer of the numbered places', 'Squares are those of :ref{id="chart"}.'],
  },
  es: {
    relief: ['Las islas: relieve y carreteras', `${legend} · carreteras en rojo, `
      + 'transbordadores a trazos', 'Relieve de Brannay, Orrin, Kellay y Skarra en tintas de '
      + 'arena y ocre sobre agua azul, con las carreteras en rojo.'],
    north: ['El extremo norte de Brannay', 'Equidistancia de las curvas: 25 metros; alturas en '
      + 'metros sobre el mar. Los discos rojos numeran los lugares del nomenclátor.', 'El Ward '
      + 'of Brannay, de 234 m, en curvas de nivel, con los Hool Stacks frente a su punta noroeste '
      + 'y la carretera de Tofts.'],
    harbour: ['El puerto de Kirkwick', 'Sondas en metros con la marea más baja. '
      + key(['muelle y luz', 'estación de salvamento', 'oficina del puerto', 'almacén de pescado',
        'iglesia']), 'Plano de Kirkwick: una calle de casas junto a una ensenada estrecha, un '
      + 'muelle en su boca y fondos de 2 a 15 m.'],
    chart: ['Las islas y sus accesos, con la cuadrícula del nomenclátor', 'Cuadros de 8 '
      + 'kilómetros, con letras de oeste a este y números de norte a sur.', 'Carta del grupo y de '
      + 'la costa de tierra firme en cuadros, con los diecisiete lugares en discos rojos.'],
    table: ['Nomenclátor de los lugares numerados',
      'Los cuadros son los del :ref{id="chart" case="lower"}.'],
  },
});
const svgResource = (id, [w, h], more) => ({ id, typeId: 'map', kind: 'svg', createdAt: 0,
  updatedAt: 0, svg: { fileId: `${id}.svg`, width: w * 10, height: h * 10 }, ...more });
const resources = [
  ...Object.keys(MAP).map((id) => svgResource(id, MAP[id], { placement: PLACEMENT[id],
    caption: TEXTS[id][0], note: TEXTS[id][1], altText: TEXTS[id][2] })),
  svgResource('rose', [ROSE, ROSE], { altText: t({ en: 'Compass rose',
    es: 'Rosa de los vientos' }) }),
  { id: 'gazetteer', typeId: 'table', kind: 'table', createdAt: 0, updatedAt: 0,
    caption: TEXTS.table[0], note: TEXTS.table[1], placement: { position: 'top', span: 'page' },
    table: { model: gazetteer() } },
];
const drawings = { relief: reliefMap, north: northMap, harbour: harbourMap, chart: chartMap };
for (const [id, draw] of Object.entries(drawings)) await loadSvg(`${id}.svg`, draw(MAP[id]));
await loadSvg('rose.svg', rose(ROSE)); // drawn by the opener, never cited, so never numbered

Un recurso recibe su número en la primera cita del texto, y :ref{id="north" case="lower"} imprime la etiqueta corta del tipo y ese número en minúscula, «mapa 2», tanto en el texto como en una nota. La carta y el nomenclátor se citan por primera vez en la página 2, por ese orden, así que la carta ocupa la página 3, y el nomenclátor, la cabeza de la página 4. La rosa de los vientos es un recurso del mismo tipo, pero solo la dibuja la apertura y el texto no la cita nunca, así que los mapas siguen numerados del 1 al 4. Cada entrada de la clave del puerto es un solo chip sin fondo, borde ni relleno, de modo que el número, el nombre y el punto que va detrás quedan en la misma línea.

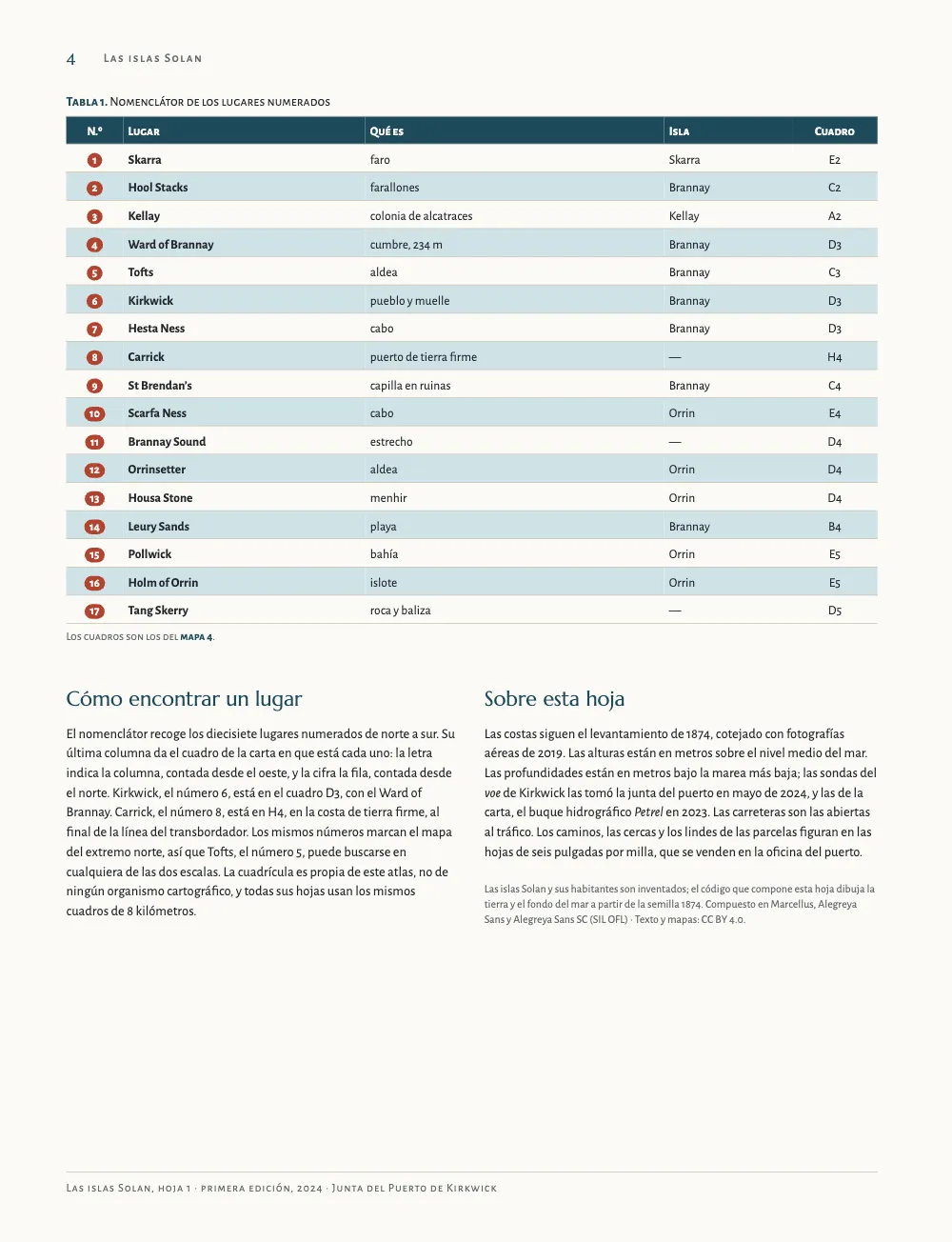

#5 · Números que comparten los mapas y el nomenclátor

script.js · líneas 119–153en el código completo
const CHART = { y0: -5, square: 8 }; // Map 4's grid: 8 km squares from its top-left corner
const PLACES = [ // name, what it is (en, es), island, x and y in km on the sheet, map mark
  ['Skarra', ['lighthouse', 'faro'], 'Skarra', 34.4, 5.4, 'light'],
  ['Hool Stacks', ['sea stacks', 'farallones'], 'Brannay', 22.8, 9],
  ['Kellay', ['gannet colony', 'colonia de alcatraces'], 'Kellay', 5.4, 10.6],
  ['Ward of Brannay', ['summit, 234 m', 'cumbre, 234 m'], 'Brannay', 26.38, 12.04, 'summit'],
  ['Hesta Ness', ['headland', 'cabo'], 'Brannay', 30.1, 15.9],
  ['Tofts', ['hamlet', 'aldea'], 'Brannay', 22.7, 14.9, 'village'],
  ['Kirkwick', ['village and ferry pier', 'pueblo y muelle'], 'Brannay', 28.3, 15, 'village'],
  ['St Brendan’s', ['ruined chapel', 'capilla en ruinas'], 'Brannay', 23.8, 21.6, 'chapel'],
  ['Brannay Sound', ['strait', 'estrecho'], '—', 25.6, 22.7],
  ['Scarfa Ness', ['headland', 'cabo'], 'Orrin', 36.3, 22.3],
  ['Carrick', ['mainland port', 'puerto de tierra firme'], '—', 59.4, 21.2, 'village'],
  ['Orrinsetter', ['hamlet', 'aldea'], 'Orrin', 31.7, 24.8, 'village'],
  ['Housa Stone', ['standing stone', 'menhir'], 'Orrin', 29.4, 25.6, 'stone'],
  ['Leury Sands', ['beach', 'playa'], 'Brannay', 10.9, 25.6],
  ['Holm of Orrin', ['islet', 'islote'], 'Orrin', 37.74, 28.4],
  ['Pollwick', ['bay', 'bahía'], 'Orrin', 32.4, 28.3],
  ['Tang Skerry', ['rock and beacon', 'roca y baliza'], '—', 25.08, 28.88, 'light'],
].map(([name, [en, es], island, x, y, mark]) => ({ name, kind: t({ en, es }), island, x, y, mark }))
  .sort((a, b) => a.y - b.y).map((place, i) => ({ ...place, no: i + 1 }));
const square = ({ x, y }) => 'ABCDEFGH'[Math.floor(x / CHART.square)]
  + (Math.floor((y - CHART.y0) / CHART.square) + 1); // the square the place falls in
function gazetteer() {
  const heads = t({ en: ['No.', 'Place', 'What it is', 'Island', 'Square'],
    es: ['N.º', 'Lugar', 'Qué es', 'Isla', 'Cuadro'] });
  const cells = (row, isHeader = false) => row.map((content) => ({ content, isHeader }));
  let m = { headerRowCount: 1, columnWidths: [8, 34, 42, 18, 12], rows: [cells(heads, true),
    ...PLACES.map((p) => cells([`:chip[${p.no}]{style="no"}`, `**${p.name}**`, p.kind, p.island,
      square(p)]))] };
  for (let row = 0; row < m.rows.length; row++) {
    for (const c of [0, 4]) m = setAlignment(m, { row, col: c }, 'center');
  }
  return m; // the zebra rows are the table style's: tableStyle.bodyAlternateBackground
}

PLACES va ordenada de norte a sur y numerada en ese orden; los mapas imprimen esos números en discos rojos, y la tabla, en chips rojos. square() calcula el cuadro de la carta con las mismas coordenadas en kilómetros que sitúan cada marca en los mapas, así que Kirkwick, el número 6, cae en D3 tanto en la carta como en la tabla. El azul pálido de una fila de cada dos lo pone el estilo de tabla: bodyAlternateBackgroundEnabled, con bodyAlternateBackground enlazado a sea.

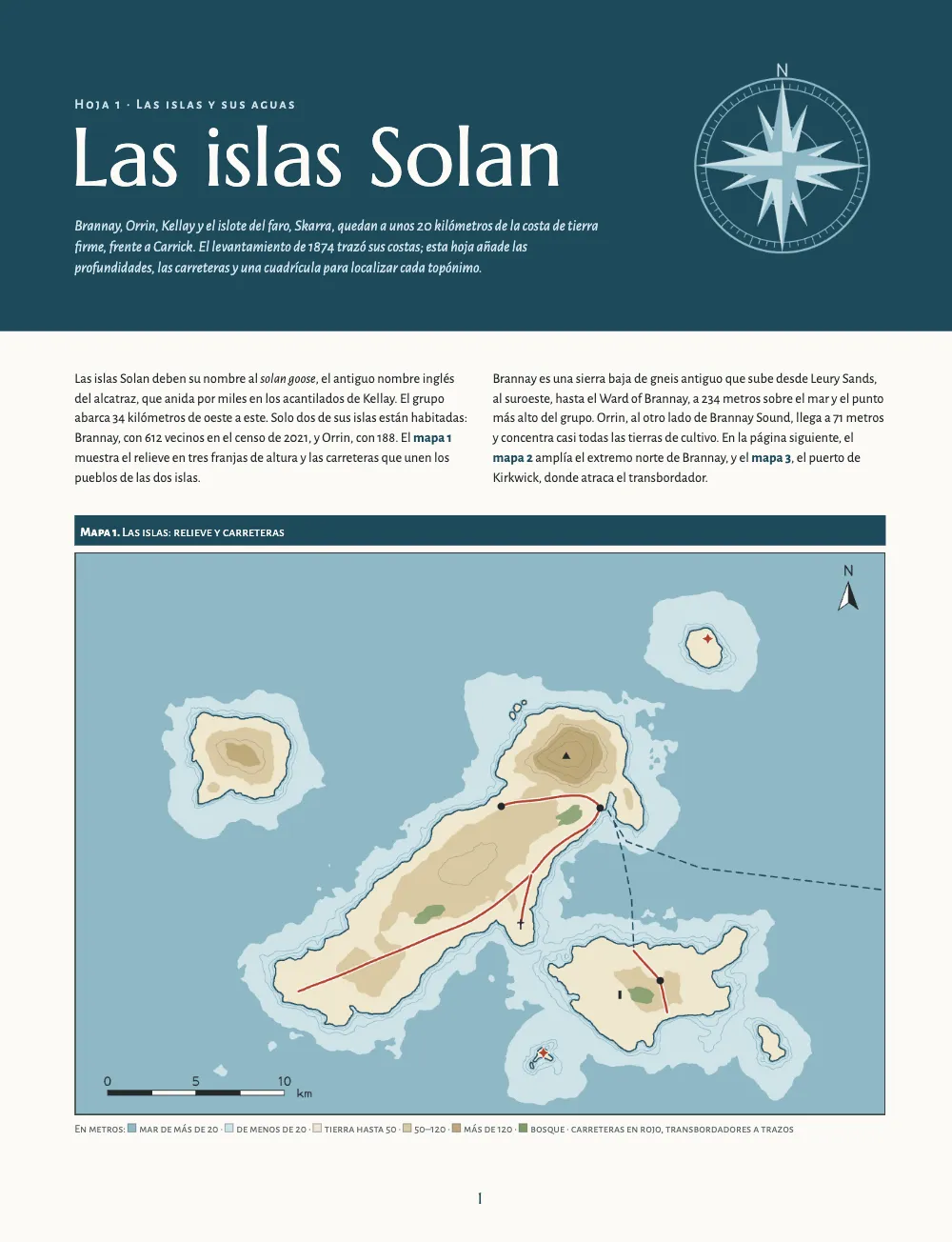

#6 · El nombre del atlas en una banda de su propio azul

script.js · líneas 71–94en el código completo
const BAND = 80; // mm from the trim to the foot of the band
const AIR = 7; // mm at least between the band and the first line of text
const ROSE = 50; // mm across the compass rose
const pin = (to, edge, x, y, size) => ({ anchor: { to, edge }, offset: { x: mm(x), y: mm(y) },
  ...(size && { size }) }); // to: 'page', 'bleed' or '#id' of an element listed before
const text = (id, content, family, size, color, placement, extra) => ({ kind: 'text', id,
  content, fontFamily: family, fontSize: pt(size), color: col(color), align: 'left',
  overflow: 'wrap', placement, ...extra }); // a long running head wraps too, never '…'
const opener = { enabled: true,
  // The band reserves down to its foot; minHeight adds AIR, in whole grid lines.
  minHeight: pt(LEAD * Math.ceil((BAND + AIR - PAGE.top) / (LEAD * PT))),
  slot: { elements: [ // array order is paint order
    { kind: 'box', id: 'band', style: { backgroundColor: col('band') },
      placement: pin('bleed', 'top-left', 0, 0, { height: mm(BAND) }) }, // no width: edge to edge
    { kind: 'image', id: 'rose', resourceId: 'rose', // page 1 is a recto: the fore-edge is right
      placement: pin('page', 'top-right', -PAGE.outer, (BAND - ROSE) / 2, { width: mm(ROSE),
        height: mm(ROSE) }) },
    text('kicker', '{attr.sheet} · {titleText}', LABEL, 9.5, 'sea', pin('page', 'top-left',
      PAGE.inner, 23), { fontWeight: 500, letterSpacing: pt(1.4) }),
    text('title', '{title}', DISPLAY, 56, 'paper', pin('#kicker', 'below', -1, 2),
      { lineHeight: 1 }),
    text('lead', '{attr.lead}', TEXT, 10.5, 'sea', pin('#title', 'below', 1, 3,
      { width: mm(128) }), { italic: true, lineHeight: 1.35 }),
  ] } }; // hook-up: headings.levels[0] = { span: 'page', breakBefore, advancedDesign: opener }

La banda es una caja anclada a 'bleed' y sin anchura, así que va de borde a borde. El título grande es {title}, el nombre del atlas en el frontmatter, y el título de la hoja pasa al antetítulo, detrás de su número. Por sí sola, la banda reserva espacio hasta su pie, y el texto empezaría 3,9 mm por debajo; minHeight amplía la reserva a 14 líneas de la rejilla base bajo el margen superior, y el texto empieza a 8,7 mm de la banda.

La receta completa

Sandbox
// ═══ Postext Cookbook · Nº 067 · Atlas sheet: numbered maps and a rotated overview ═════
// https://postext.dev/en/cookbook/atlas-map-sheet
// Code: MIT · Text: original (CC BY 4.0) · Maps: generated in code from seed 1874 (CC BY 4.0)
// Fonts: Marcellus, Alegreya Sans, Alegreya Sans SC (SIL OFL 1.1) · Needs postext ≥ 1.34.0
import {
  buildDocumentWithFonts, renderPageToCanvas, registerResourceImage, defaultResourceTypes,
  setAlignment,
} from 'https://esm.sh/postext';

const LANG = 'es'; // @lang: the language of the sample document ('en' | 'es')
const RECIPE = 'atlas-map-sheet';

// ─── 1 · Design ─────────────────────────────────────────────────────────────
// #region palette: the page's colours and the maps' tints, one object for both
const palette = {
  ink: '#23282b', paper: '#fbfaf6', // a blue-black on a warm white
  band: '#1f4a5c', // the accent: opener band, caption bars, table head, references
  road: '#b2432f', // the second colour: roads, lights and the place numbers
  muted: '#626a6d', rule: '#c8c2b4', // running heads and notes; hairlines
  deep: '#8fb9c6', sea: '#cfe3e8', // the maps' water: over and under 20 m
  land: '#efe6cf', hill1: '#d9c9a3', hill2: '#bfa97a', forest: '#7f9b6a', // and their land
};
// col(id) links a colour to its palette entry; the drawings read the same hex from `palette`.
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = Object.entries({ ...palette, 'main-color': palette.band }) // the defaults' id
  .map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));
// #endregion
const [TEXT, DISPLAY, LABEL] = ['Alegreya Sans', 'Marcellus', 'Alegreya Sans SC'];
const PAGE = { w: 230, h: 300, top: 22, bottom: 22, inner: 18, outer: 16 }; // mm, mirrored
const LEAD = 13.5; // pt: the body's leading and baseline grid
const PT = 25.4 / 72; // mm in a point

// #region answer: a Map type captioned on a bar above the drawing, and where each map goes
// Every caption stands above its drawing or table, in the label face. Maps count 1, 2, 3…
// through the atlas as a type of their own and set their caption on a bar in the band colour.
const captionStyle = { fontFamily: LABEL, fontSize: pt(9), labelColor: col('band'),
  position: 'above', gap: mm(1.6), note: { fontSize: pt(7.8), color: col('muted') } };
const MAP_WORD = t({ en: 'Map', es: 'Mapa' });
const mapType = { id: 'map', name: MAP_WORD, shortLabel: MAP_WORD, captionPrefix: MAP_WORD,
  numberingTemplate: '{n}', resetOn: 'never', counterFormat: 'decimal',
  captionStyle: { backgroundEnabled: true, background: col('band'), color: col('paper'),
    labelColor: col('paper'), padding: mm(1.4) } }; // the bar only; the rest is captionStyle's
// Each map floats from its first :ref to the first slot its placement allows.
const PLACEMENT = {
  relief: { position: 'bottom', span: 'page' }, // the foot of the page that cites it
  north: { position: 'top' }, // the head of the next free column
  harbour: { position: 'top' },
  chart: { rotate: 'ccw' }, // turned a quarter, top to the left, on a page of its own

El script.js compuesto funciona tal cual: pégalo como script de módulo en cualquier página o abre la receta en CodePen. Carpeta de la receta en GitHub ↗ (se abre en una nueva pestaña)

Variantes

#Gira la carta al otro lado

Girada en el sentido de las agujas del reloj, la carta tiene la parte de arriba y la barra del pie en el corte exterior de la página 3, y el lector tiene que girar el libro en sentido contrario al habitual, el que sigue 'ccw'.

-  chart: { rotate: 'ccw' }, // turned a quarter, top to the left, on a page of its own
+  chart: { rotate: 'cw' }, // turned a quarter, top to the right, on a page of its own

#Gira una tabla

Una tabla gira con el mismo ajuste y, cuando es demasiado ancha para una página, sigue girada en la siguiente bajo la fila de cabecera repetida: mira el almanaque del huerto.

#Pon un mapa al margen

En una maqueta de columna y media, la columna exterior puede reservarse para las figuras y sus pies, sin texto: mira el libro de texto con columna al margen.

Errores frecuentes

Error frecuente

Un flotante 'top' va a la página siguiente a su cita salvo que pueda encabezar la página que lo cita

Por defecto un flotante nunca va por encima de su propia referencia, así que un flotante 'top' a todo el ancho citado en la página N abre la página N+1. Con placement.citingPage: true en el recurso o en el defaultPlacement de su tipo (o layout.floatsAtCitingPage para todo el libro, desde postext 1.25) encabeza en cambio la página N, y el texto de encima de la referencia baja bajo él, cuando cabe dentro de layout.maxTopFraction y la línea que lo cita sigue en esa página. Nunca encabeza la primera página de un capítulo ni una página tras un salto forzado: allí sigue abriendo la página siguiente, y 'auto' o 'bottom' pueden ocupar el pie de la página que lo cita. Colocación de figuras →

Créditos

Texto
Texto original, CC BY 4.0
Fuentes
Marcellus (SIL OFL 1.1) · Alegreya Sans (SIL OFL 1.1) · Alegreya Sans SC (SIL OFL 1.1)
Sandbox
