باختصار
برنامج من ست صفحات لموسم الخريف في نادٍ سينمائي يعرض أربعة أفلام قصيرة. في صفحة كل فيلم صورة عليها رمز يمسحه الهاتف لمشاهدة الفيلم، وفي ملف PDF يكفي النقر على الصورة.
ما الذي ستنضده
برنامج الخريف لنادي Lumen السينمائي، كتيّب بقياس 165 × 235 مم على ورق كريمي: غلاف عليه شريط بلون الشاشة السوداء وعنوان الموسم بخط Big Shoulders Display، ثم صفحة لكل فيلم من أربعة أفلام مفتوحة أنتجتها مؤسسة Blender. تبدأ صفحة كل فيلم بعنوان تمهيدي أحمر للعرض، ثم العنوان بحروف كبيرة ضيقة وسطر بأسماء صانعيه، وتحتها بطاقة عنوان بعرض النص كله، 125 مم. في ركن البطاقة العلوي الأيسر علامة تشغيل حمراء، وفي ركنها السفلي الأيمن رمز QR بطول 20 مم. العضو الذي فاته يوم جمعة يوجّه هاتفه إلى الرمز فيُفتح الفيلم على YouTube؛ وفي ملف PDF تكون البطاقة كلها رابطًا. والعنوان المختصر تحت كل بطاقة موجود للهاتف الذي لا يقرأ الرمز.
تجيب هذه الوصفة عن
- كيف أضع فيديو في كتاب مطبوع بحيث يستطيع القارئ فتحه من الصفحة؟
الجواب المختصر
const videoStyle = {
// The mark sits top left and the code bottom right, so they never meet on a 70 mm poster.
playMark: { shape: 'rounded', position: 'top-left', size: mm(8), inset: mm(4),
color: col('paper'), background: col('accent'), backgroundOpacity: 1 },
// https://youtu.be/<id> is 28 characters: 29 modules at level Q, and a quiet zone of 2 a side
// makes modules of 0.61 mm on a 20 mm plate, twice what a phone camera needs.
qr: { position: 'bottom-right', size: mm(20), inset: mm(3), errorCorrection: 'Q',
quietZone: 2, color: col('ink'), background: col('paper'), radius: mm(1.2) },
linkPoster: true, // the PDF draws a link over each poster
};
const film = (f) => ({
id: f.id, typeId: 'video', kind: 'video', createdAt: 0, updatedAt: 0,
caption: `${f.title}. ${t(f.about)}.`, altText: t(f.alt),
note: `${f.licence} · ${f.address}`, // for a phone that does not read the code
placement: { position: 'here' }, // set where ::resource puts it, under the opener
video: {
// The short address printed under the picture, expanded to the one the QR code holds.
source: 'youtube', url: videoWatchUrl(parseVideoUrl(f.address)), // https://youtu.be/<id>
// Any picture can be the poster: here a title card drawn below, at its pixel size.
poster: { fileId: `${f.id}.png`, format: 'png', width: CARD.w, height: CARD.h },
},
});
// "Film 1" instead of "Video 1.1": one count for the season, not per chapter.
const [FILM, FILMS_NAME] = [t({ en: 'Film', es: 'Película' }), t({ en: 'Films', es: 'Películas' })];
const filmType = (type) => ({ ...type, name: FILM, namePlural: FILMS_NAME, shortLabel: FILM,
captionPrefix: FILM, numberingTemplate: '{n}', resetOn: 'never' });
المكونات
- الميزات
- الفيديو بوصفه موردًاأغلفة الفيديو: علامة التشغيل ورمز QRالأشكال والجداول بوصفها مواردأنواع موارد مخصّصةتعليقات مرقّمةاستشهادات تضع الأشكالأشكال في هذا الموضع بالضبطنمط التعليقسطور المصدر والحقوق«شكل» و«جدول» بلغتكأنماط العناوينسمات العنوانصفحات افتتاح مصمَّمةالنصوص والخطوط والمربعات في تصاميم الصفحةلون الورقلوحة ألوان دلاليةالتصدير إلى PDF
- تستخدم أيضًا
- الترويسات بحسب دور الصفحةأنماط الفقراتالخطوط المضمَّنة في PDFترويسات لكل قسمفصول بلا أرقام
- الخطوط
- Literata, Big Shoulders Display, Barlow Semi Condensed (SIL OFL 1.1)
- الأصول
- Title card for Elephants Dream, drawn in code. The film, © 2006 Blender Foundation and Netherlands Media Art Institute, CC BY 2.5, is linked from the page, not reproduced (Ignacio Ferro, أصلي)
- Title card for Big Buck Bunny, drawn in code. The film, © 2008 Blender Foundation, CC BY 3.0, is linked from the page, not reproduced (Ignacio Ferro, أصلي)
- Title card for Tears of Steel, drawn in code. The film, © 2012 Blender Foundation, CC BY 3.0, is linked from the page, not reproduced (Ignacio Ferro, أصلي)
- Title card for Spring, drawn in code. The film, © 2019 Blender Foundation (Blender Studio), CC BY 4.0, is linked from the page, not reproduced (Ignacio Ferro, أصلي)
طريقة التحضير
#1 · كل فيلم مورد فيديو
الشيفرة في الجواب المختصر أعلاه. يوضع مورد الفيديو ويُعلَّق عليه ويُرقَّم كما يُصنع بالشكل، ويعرضه المطبوع غلافًا فوقه عنصران. تذهب علامة التشغيل والرمز إلى ركنين متقابلين كي لا يتلامسا، والغلاف بارتفاع 70 مم يتسع لهما. طول ضلع الرمز 20 مم مع منطقة هادئة من وحدتين: https://youtu.be/ مع معرّف من أحد عشر حرفًا يعطي 29 وحدة في المستوى Q، فتقيس الوحدة 0.61 مم، أي نحو ضعف ما تحتاجه كاميرا الهاتف. المستوى Q أعلى مستوى يحتفظ بالوحدات التسع والعشرين عند هذا الطول (والمحرّك يرفع M إليه من تلقاء نفسه)؛ أما H فيحتاج 33 وحدة ويصغّر الوحدة إلى 0.54 مم. النوع المدمج video كان سيطبع Video 1.1؛ وبعد تسميته Film وعدّه بـ{n} في المستند كله، يرقّم عروض الموسم الأربعة من Film 1 إلى Film 4، وتطبع إحالات الغلاف الكلمات نفسها.
#2 · اكتب العنوان المختصر ودع المحرّك يكمله
const FILMS = [

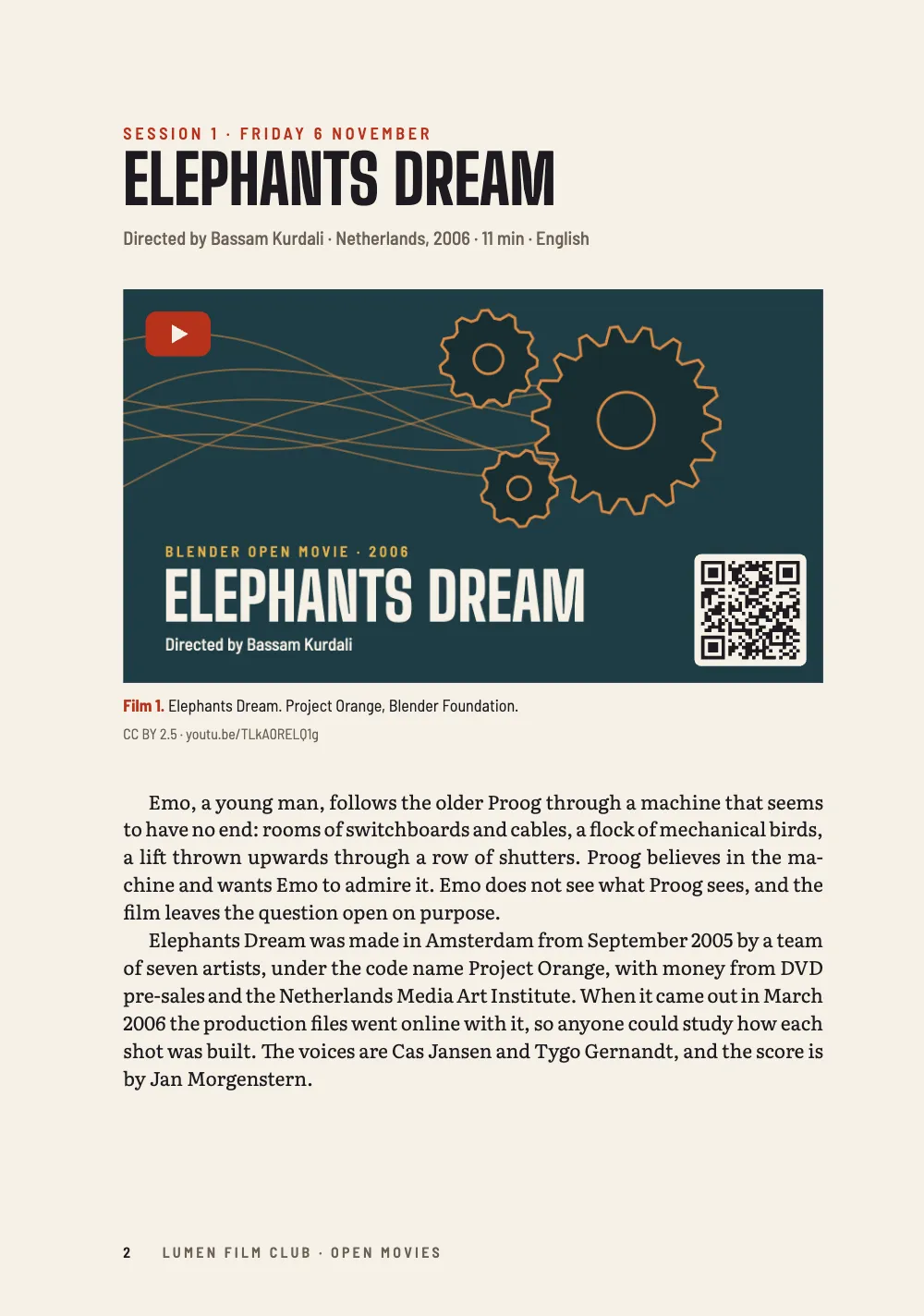

{ id: 'elephants-dream', address: 'youtu.be/TLkA0RELQ1g', title: 'Elephants Dream', year: 2006,
director: 'Bassam Kurdali', licence: 'CC BY 2.5', colour: 'orange', motif: 'gears',
about: { en: 'Project Orange, Blender Foundation', es: 'Proyecto Orange, Blender Foundation' },
alt: { en: 'Title card for Elephants Dream: copper gears and cables on deep teal.',
es: 'Cartela de Elephants Dream: engranajes y cables de cobre sobre verde azulado.' } },

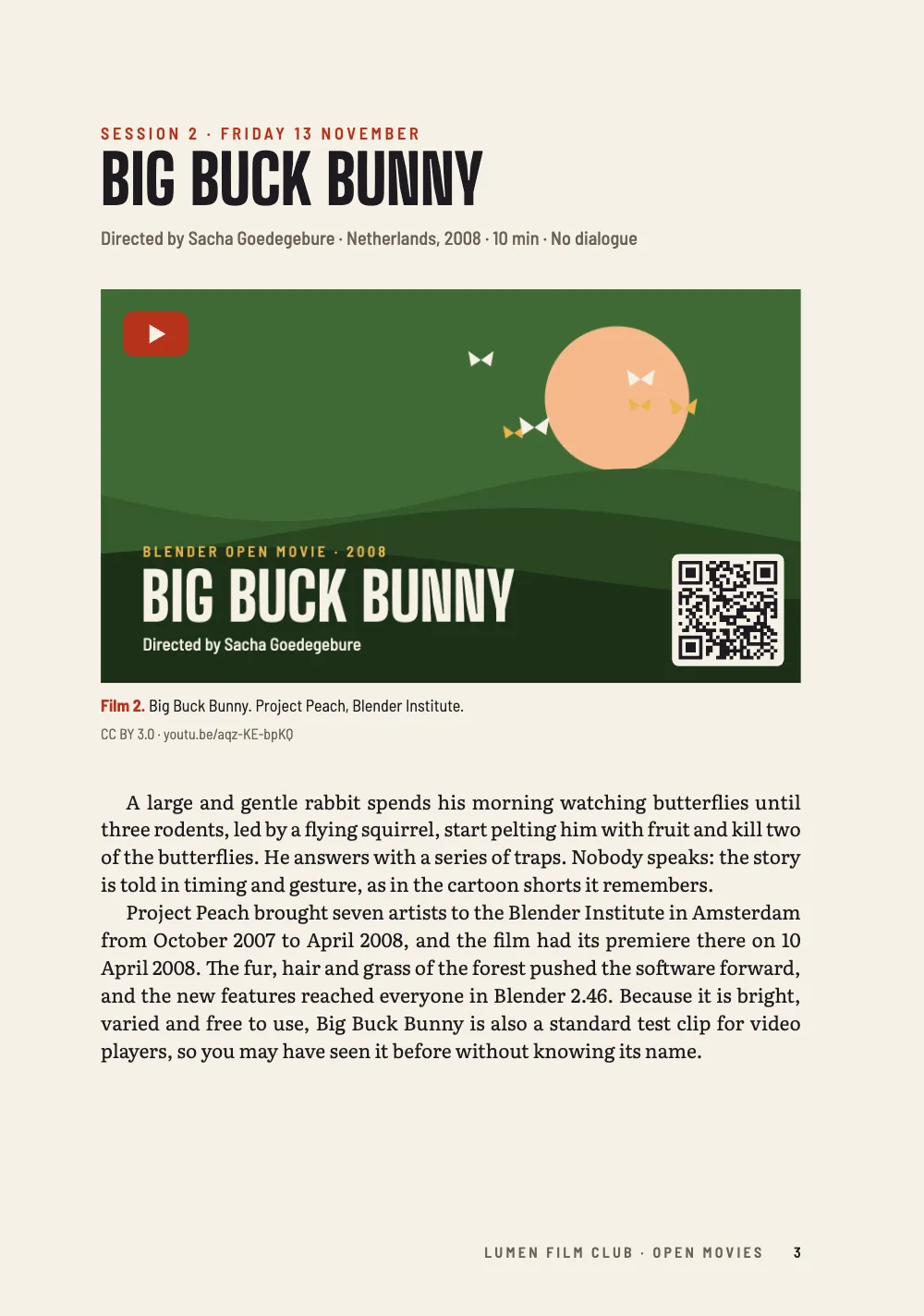

{ id: 'big-buck-bunny', address: 'youtu.be/aqz-KE-bpKQ', title: 'Big Buck Bunny', year: 2008,
director: 'Sacha Goedegebure', licence: 'CC BY 3.0', colour: 'peach', motif: 'meadow',
about: { en: 'Project Peach, Blender Institute', es: 'Proyecto Peach, Blender Institute' },
alt: { en: 'Title card for Big Buck Bunny: a peach sun over green hills and butterflies.',
es: 'Cartela de Big Buck Bunny: un sol melocotón sobre colinas verdes y mariposas.' } },

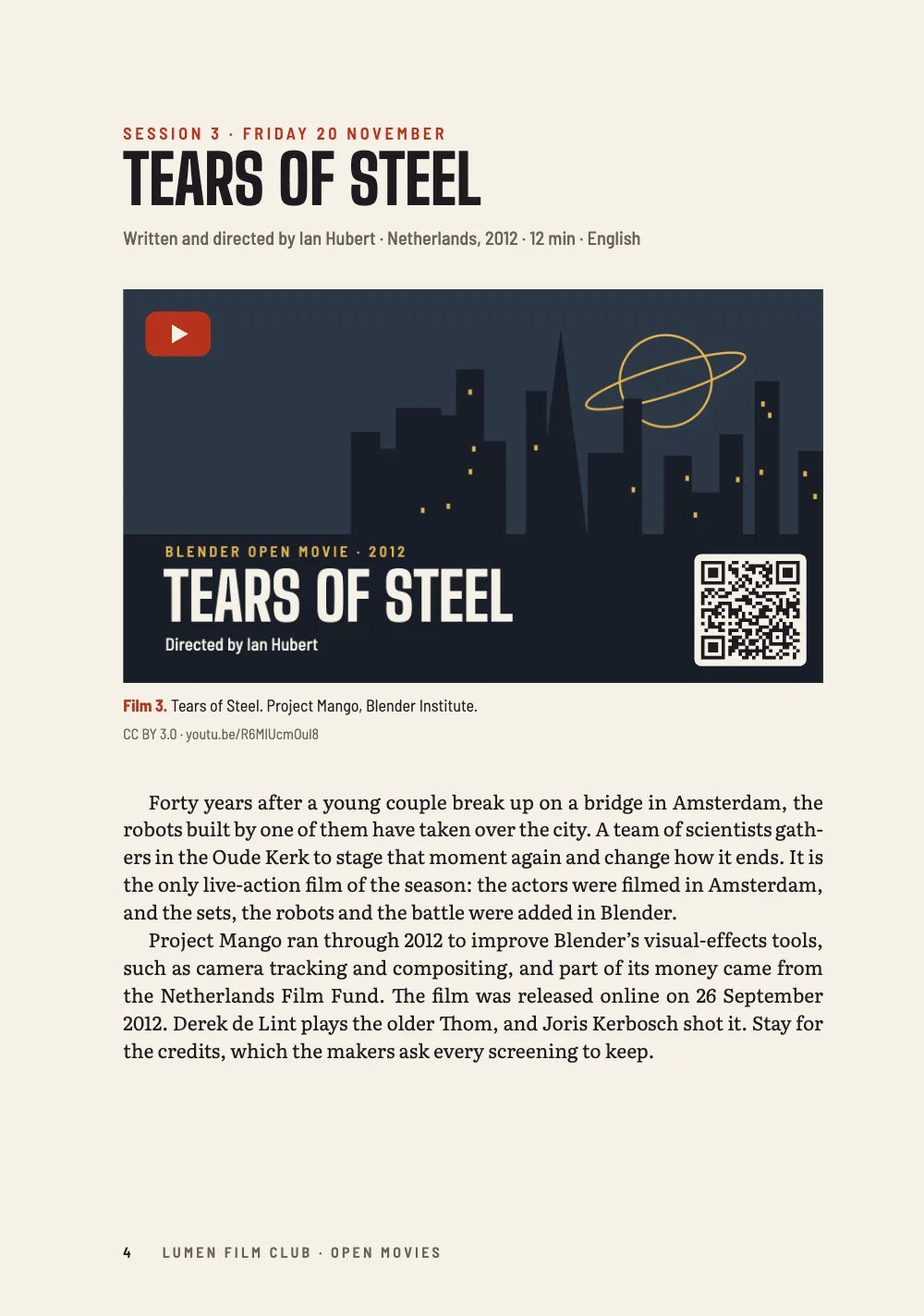

{ id: 'tears-of-steel', address: 'youtu.be/R6MlUcmOul8', title: 'Tears of Steel', year: 2012,
director: 'Ian Hubert', licence: 'CC BY 3.0', colour: 'mango', motif: 'city',
about: { en: 'Project Mango, Blender Institute', es: 'Proyecto Mango, Blender Institute' },
alt: { en: 'Title card for Tears of Steel: a skyline with a church spire under a ringed moon.',
es: 'Cartela de Tears of Steel: un perfil urbano con una aguja de iglesia bajo una luna.' } },

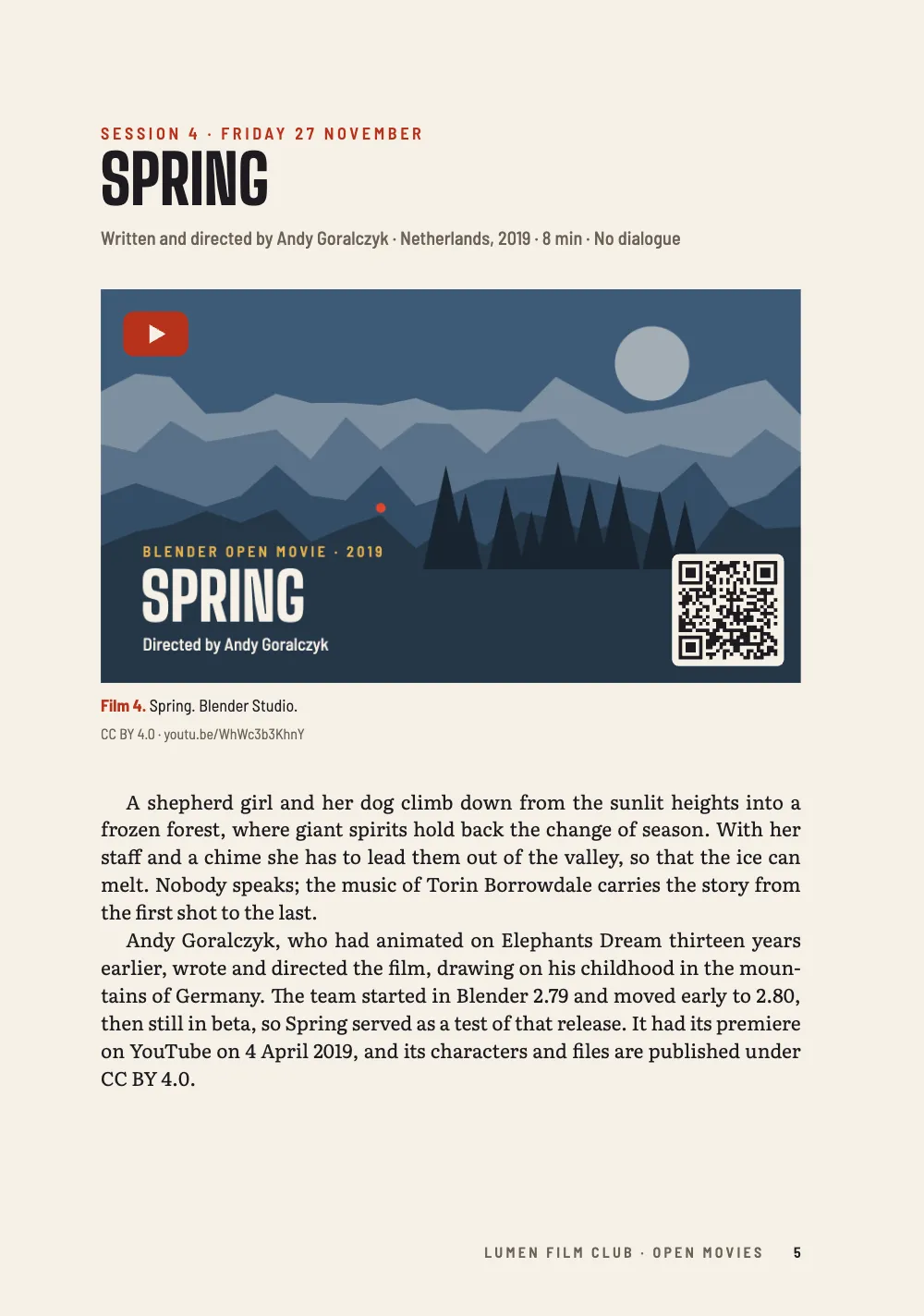

{ id: 'spring', address: 'youtu.be/WhWc3b3KhnY', title: 'Spring', year: 2019,
director: 'Andy Goralczyk', licence: 'CC BY 4.0', colour: 'spring', motif: 'ridges',
about: { en: 'Blender Studio', es: 'Blender Studio' },
alt: { en: 'Title card for Spring: misty ridges, dark firs and one red light.',
es: 'Cartela de Spring: crestas en la niebla, abetos oscuros y una luz roja.' } },
];
العنوان في كل مدخل هو المطبوع تحت البطاقة، youtu.be/TLkA0RELQ1g، ويستطيع القارئ أن يكتبه بيده. تقرأ parseVideoUrl أي صيغة لعنوان على YouTube أو Vimeo، وتكتب videoWatchUrl العنوان القياسي مما قُرئ: فيكون في رمز QR ورابط PDF كليهما https://youtu.be/<id>. وإذا ترك خطأ مطبعي معرّفًا غير صالح، أعادت parseVideoUrl القيمة undefined وتوقّف السكربت قبل التنضيد، فلا يصل رابط معطوب إلى المطبعة.
#3 · ارسم بطاقة عنوان لتكون الغلاف
// The 2D canvas paints the motifs and sets the type in the faces the page has loaded.
// Seeded, so every run draws the same cards.
function mulberry32(seed) {
return () => {
seed = (seed + 0x6d2b79f5) | 0;
let r = Math.imul(seed ^ (seed >>> 15), 1 | seed);
r = (r + Math.imul(r ^ (r >>> 7), 61 | r)) ^ r;
return ((r ^ (r >>> 14)) >>> 0) / 4294967296;
};
}
const mix = (a, b, k) => `#${[1, 3, 5].map((i) => Math.round(parseInt(a.slice(i, i + 2), 16)
* (1 - k) + parseInt(b.slice(i, i + 2), 16) * k).toString(16).padStart(2, '0')).join('')}`;
const MOTIFS = {
gears(g, rand, bg) { // a machine without end: three gears and the cables between them
const copper = '#d98a45';
g.lineWidth = 4;
for (let i = 0; i < 7; i++) {
g.strokeStyle = `${copper}88`;
g.beginPath();
g.moveTo(0, 90 + rand() * 380);
g.bezierCurveTo(300 + rand() * 300, rand() * 500, 600 + rand() * 200, 100 + rand() * 400,
1000 + rand() * 300, 120 + rand() * 300);
g.stroke();
}
for (const [x, y, r, teeth] of [[1150, 300, 215, 18], [835, 160, 112, 11], [905, 455, 88, 9]]) {
g.beginPath();
for (let k = 0; k <= teeth * 4; k++) {
const a = (k / (teeth * 4)) * Math.PI * 2;
const rr = k % 4 < 2 ? r : r * 0.84;
g.lineTo(x + rr * Math.cos(a), y + rr * Math.sin(a));
}
g.fillStyle = mix(bg, '#000000', 0.25);
g.fill();
g.lineWidth = 6;
g.strokeStyle = copper;
g.stroke();
g.beginPath();
g.arc(x, y, r * 0.3, 0, Math.PI * 2);
g.stroke();
}
},
meadow(g, rand, bg) { // a peach sun, three hills, butterflies
g.fillStyle = '#f5b98a';
g.beginPath();
g.arc(1180, 250, 165, 0, Math.PI * 2);
g.fill();
for (let i = 0; i < 6; i++) { // butterflies: two pairs of wings each
const [x, y, s] = [760 + rand() * 640, 90 + rand() * 300, 14 + rand() * 12];
g.fillStyle = i % 2 ? '#f6f1e7' : '#e9b44c';
for (const side of [-1, 1]) {
g.beginPath();
g.moveTo(x, y);
g.lineTo(x + side * s * 1.4, y - s);
g.lineTo(x + side * s * 1.1, y + s * 0.7);
g.fill();
}
}
[[470, 0.15], [560, 0.35], [650, 0.55]].forEach(([base, dark], layer) => {
g.fillStyle = mix(bg, '#000000', dark);
g.beginPath();
g.moveTo(0, CARD.h);
for (let x = 0; x <= CARD.w; x += 20) {
g.lineTo(x, base + 60 * Math.sin(x / (260 + layer * 90) + layer * 2));
}
g.lineTo(CARD.w, CARD.h);
g.fill();
});
},
city(g, rand, bg) { // a skyline, one church spire, a ringed moon
g.strokeStyle = '#e9b44c';
g.lineWidth = 5;
g.beginPath();
g.arc(1240, 210, 105, 0, Math.PI * 2);
g.stroke();
g.beginPath();
g.ellipse(1240, 210, 190, 34, -0.3, 0, Math.PI * 2);
g.stroke();
const shade = mix(bg, '#000000', 0.45);
for (let x = 520; x < CARD.w; x += 46 + rand() * 60) {
const [w, h] = [40 + rand() * 70, 90 + rand() * 300];
g.fillStyle = shade;
g.fillRect(x, 560 - h, w, CARD.h);
g.fillStyle = '#e9b44c';
for (let wy = 580 - h; wy < 540; wy += 26) {
if (rand() < 0.18) g.fillRect(x + 8 + rand() * (w - 22), wy, 8, 12);
}
}
g.fillStyle = shade; // the Oude Kerk's spire stands over the rest
g.beginPath();
g.moveTo(940, 560);
g.lineTo(1000, 90);
g.lineTo(1060, 560);
g.fill();
g.fillRect(0, 560, CARD.w, CARD.h);
},
ridges(g, rand, bg) { // misty ridges, dark firs and one red light
g.fillStyle = mix(bg, '#f6f1e7', 0.55);
g.beginPath();
g.arc(1260, 170, 85, 0, Math.PI * 2);
g.fill();
[[300, 0.35], [400, 0.15], [500, -0.15], [600, -0.4]].forEach(([base, k]) => {
g.fillStyle = k > 0 ? mix(bg, '#f6f1e7', k) : mix(bg, '#000000', -k);
g.beginPath();
g.moveTo(0, CARD.h);
for (let x = 0; x <= CARD.w; x += 80) g.lineTo(x, base - rand() * 110);
g.lineTo(CARD.w, CARD.h);
g.fill();
});
g.fillStyle = mix(bg, '#000000', 0.6);
for (let i = 0; i < 9; i++) {
const [x, h] = [920 + i * 58 + rand() * 30, 130 + rand() * 120];
g.beginPath();
g.moveTo(x - h * 0.22, 640);
g.lineTo(x, 640 - h);
g.lineTo(x + h * 0.22, 640);
g.fill();
}
g.fillStyle = '#e0452c';
g.beginPath();
g.arc(640, 500, 11, 0, Math.PI * 2);
g.fill();
},
};
async function titleCard(f) {
const canvas = Object.assign(document.createElement('canvas'), { width: CARD.w, height: CARD.h });
const g = canvas.getContext('2d');
const bg = palette[f.colour];
g.fillStyle = bg;
g.fillRect(0, 0, CARD.w, CARD.h);
MOTIFS[f.motif](g, mulberry32(f.year), bg);
// Lower left, clear of the play mark (top left) and the QR plate (bottom right).
g.fillStyle = '#e9b44c';
g.font = `600 34px "${LABEL}"`;
g.letterSpacing = '7px';
g.fillText(`${t({ en: 'Blender open movie', es: 'Película abierta de Blender' })} · ${f.year}`
.toUpperCase(), 96, 612);
g.letterSpacing = '0px';
g.fillStyle = '#f6f1e7';
let size = 154;
do g.font = `800 ${size -= 4}px "${DISPLAY}"`;
while (g.measureText(f.title.toUpperCase()).width > 1080);
g.fillText(f.title.toUpperCase(), 92, 760);
g.font = `500 40px "${LABEL}"`;
g.fillText(`${t({ en: 'Directed by', es: 'Dirigida por' })} ${f.director}`, 96, 826);
const blob = await new Promise((done) => canvas.toBlob(done, 'image/png'));
await loadImage(`${f.id}.png`, URL.createObjectURL(blob)); // the canvas and the PDF
}
في أغلب المشاريع يكون الغلاف لقطة من الفيلم: يجلبها Sandbox حين تكتب العنوان، وفي الشيفرة تسرد youtubePosterUrls(id) الصور المصغرة على YouTube من الأكبر (1280 × 720) إلى الأصغر. لقطات المنصات تابعة للأفلام وتراخيصها، ويمكن لبرنامج مطبوع أن يستعمل بطاقات عنوان خاصة به، لذلك رُسمت هنا لكل فيلم بطاقة على canvas بلونه وزخرفته وعنوانه وسنته ومخرجه. تترك البطاقة الركن العلوي الأيسر والركن السفلي الأيمن خاليين للعلامة والرمز. تُرسم كل بطاقة على canvas، وتنضّد نصها بخطوط الكتيّب التي حمّلتها الصفحة. مقاس كل بطاقة 1600 × 900 بكسل، أي نسبة الأفلام 16:9، وتصرّح video.poster بهذا المقاس: فتُطبع بدقة 325 نقطة في البوصة على عرض 125 مم. والفيديو الذي لا غلاف له يُطبع مستطيلًا داكنًا بنسبة 16:9 عليه العلامة والرمز نفساهما، ويصدر التنضيد تحذيرًا.

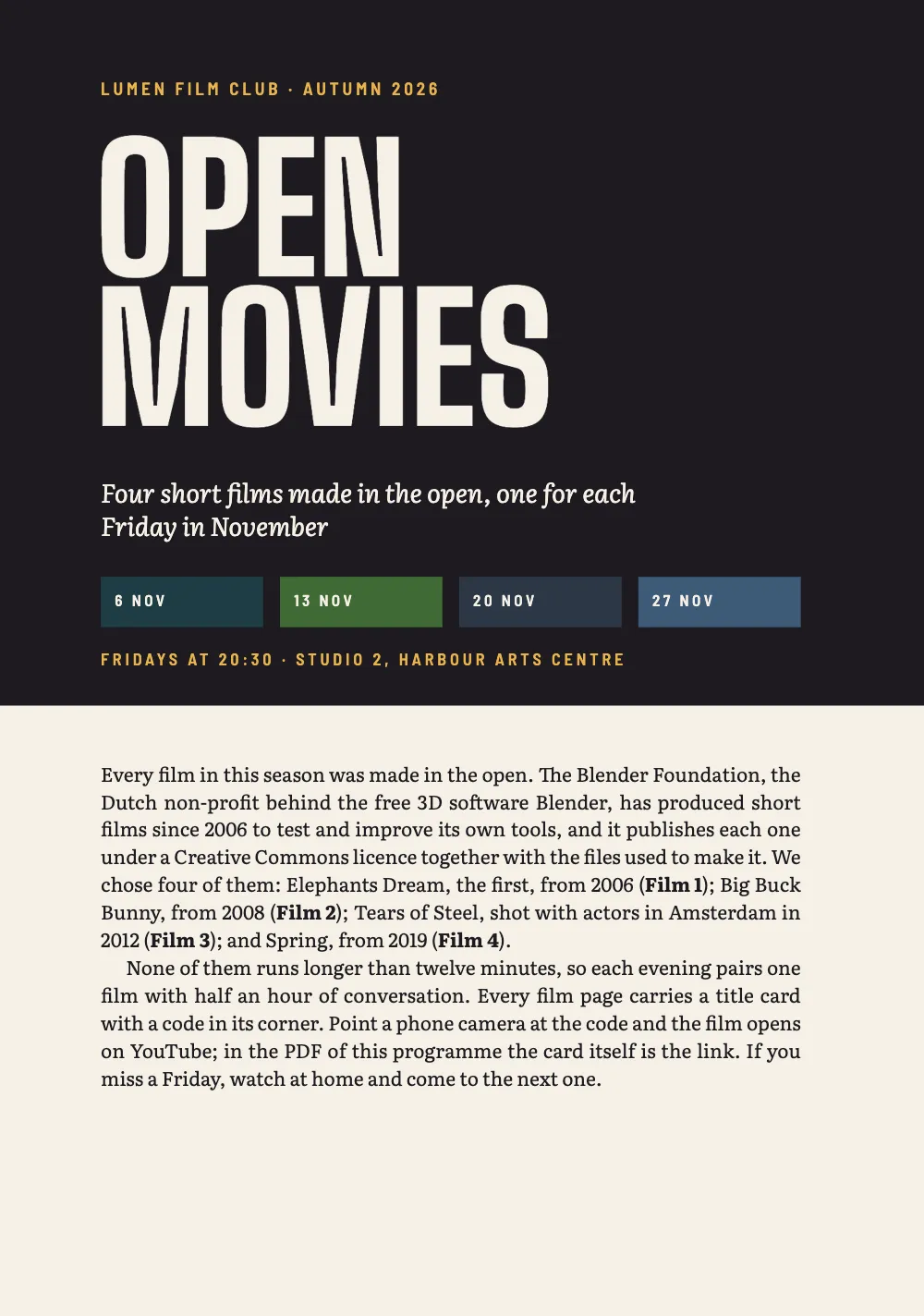

#4 · ضع الغلاف تحت صفحة الافتتاح
const text = (id, content, fontFamily, size, color, placement, more = {}) => ({ kind: 'text',
id, content, fontFamily, fontSize: pt(size), color: col(color), align: 'left',
overflow: 'wrap', placement, ...more }); // a foot wraps too, where the default is '…'
const at = (to, edge, x, y, width) => ({ anchor: { to, edge }, offset: { x: mm(x), y: mm(y) },
...(width && { size: { width: mm(width), height: 'auto' } }) });
const caps = (s) => ({ fontWeight: 600, textTransform: 'uppercase', letterSpacing: pt(s * 0.2) });
const BAND = 126; // mm: the cover's screen-black band, from the trim's top edge
const MEASURE = TRIM.w - INNER - OUTER;
const CHIP = (MEASURE - 9) / 4; // four chips in the films' colours, 3 mm apart
const coverStyle = () => ({
id: 'cover', numbered: false, footer: { elements: [] }, // no folio on the cover
marginBottom: pt(LEAD), // a line of paper between the band and the text
advancedDesign: { enabled: true, minHeight: mm(BAND - TOP), slot: { elements: [
{ kind: 'box', id: 'band', style: { backgroundColor: col('ink') },
placement: { ...at('page', 'top-left', 0, 0), size: { width: 'fill', height: mm(BAND) } } },
text('kicker', '{attr.kicker}', LABEL, 9, 'gold', at('page', 'top-left', INNER, 14), caps(9)),
text('title', '{titleText}', DISPLAY, 88, 'paper', at('page', 'top-left', INNER - 1, 28,
MEASURE), { fontWeight: 800, textTransform: 'uppercase', lineHeight: 0.86 }),
text('standfirst', '{attr.standfirst}', TEXT, 13, 'paper',
at('page', 'top-left', INNER, 85, 104), { italic: true, lineHeight: 1.3 }),
...FILMS.flatMap((f, i) => [
{ kind: 'box', id: `chip-${i}`, style: { backgroundColor: col(f.colour) },
placement: { ...at('page', 'top-left', INNER + i * (CHIP + 3), 103),
size: { width: mm(CHIP), height: mm(9) } } },
text(`chip-label-${i}`, t({ en: `${6 + 7 * i} Nov`, es: `${6 + 7 * i} nov` }), LABEL, 8,
'paper', at('page', 'top-left', INNER + i * (CHIP + 3) + 2.5, 105.6), caps(8)),
]),
text('dates', '{attr.dates}', LABEL, 8.5, 'gold', at('page', 'top-left', INNER, 116), caps(9)),
] } },
});
const opener = () => ({ enabled: true, minHeight: mm(22), slot: { elements: [
text('kicker', '{attr.kicker}', LABEL, 8.5, 'accent', at('container', 'top-left', 0, 0),
caps(8.5)),
text('title', '{titleText}', DISPLAY, 34, 'ink', at('#kicker', 'below', 0, 1.5, MEASURE),
{ fontWeight: 800, textTransform: 'uppercase', lineHeight: 1 }),
text('credits', '{attr.credits}', LABEL, 9.5, 'muted', at('#title', 'below', 0, 1.5, MEASURE),
{ fontWeight: 500 }),
] } });
const foot = (id, content, parity, edge, x, more = {}) => text(id, content, LABEL, 7.5, 'muted',
at('page', edge, x, TRIM.h - 13), { ...caps(7.5), parity, pages: 'all', ...more });
const footer = { elements: [ // folios at the outer foot, the programme's name beside them
foot('verso-folio', '{pageNumber}', 'even', 'top-left', OUTER, { color: col('ink') }),
foot('verso-title', '{title}', 'even', 'top-left', OUTER + 7),
foot('recto-title', '{title}', 'odd', 'top-right', -(OUTER + 7), { align: 'right' }),
foot('recto-folio', '{pageNumber}', 'odd', 'top-right', -OUTER,
{ color: col('ink'), align: 'right' }),
] };
كل فيلم عنوان من المستوى الأول، يرصّ تصميمُ افتتاحه العنوانَ التمهيدي للعرض والعنوانَ وسطرَ الصانعين، والثلاثة مأخوذة من سمات العنوان. ويضع ::resource الغلاف تحته مباشرة بـposition: 'here'، فتتبع صفحات الأفلام كلها الترتيب نفسه. والغلاف الأمامي نمط عنوان، شريطه وعنوانه وقطعه عناصر تصميم؛ وتأخذ القطع الأربع ألوان الأفلام من لوحة الألوان، كما تفعل البطاقات.
#5 · لوحة ألوان واحدة للصفحات والبطاقات
const palette = {
ink: '#1d1b20', paper: '#f6f1e7', // text and the cover band; the page
accent: '#b8321c', gold: '#e9b44c', muted: '#6b6157', // kickers; the band's accent; credits
orange: '#1f3d44', peach: '#3f6b35', mango: '#2c3746', spring: '#3d5a78', // the title cards
};
// A linked colour carries its hex too, so designs and defaults read the same value.
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = [
...Object.entries(palette).map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } })),
// The engine's defaults link to 'main-color': point it at the accent, so nothing prints blue.
{ id: 'main-color', name: 'accent (defaults)', value: { hex: palette.accent, model: 'hex' } },
];
الحبر والأحمر والكريمي ألوان الكتيّب؛ وألوان الأفلام الأربعة (بأسماء مشاريع Blender Orange وPeach وMango، ومعها Spring) تلوّن قطع الغلاف والبطاقات. وعلامة التشغيل بأحمر العناوين التمهيدية نفسه، ولوحة رمز QR بلون الصفحة الكريمي ووحداتها بالحبر: رمز داكن على لوحة فاتحة، وهو التباين الذي تتوقعه كل برامج قراءة الرموز.
الوصفة كاملة
// ═══ Postext Cookbook · Nº 131 · Film club programme with video QR codes ═════════
// https://postext.dev/en/cookbook/film-club-video-qr
// Code: MIT · Text and title cards: original (CC BY 4.0) · Films: Blender Foundation (CC BY)
// Fonts: Literata, Big Shoulders Display, Barlow Semi Condensed (SIL OFL) · Needs postext ≥ 1.28.0
import {
buildDocumentWithFonts, prepareFonts, renderPageToCanvas, registerResourceImage,
defaultResourceTypes, parseVideoUrl, videoWatchUrl,
} from 'https://esm.sh/postext';
import { renderToPdf, decompressWoff2 } from 'https://esm.sh/postext-pdf';
const LANG = 'en'; // @lang: the language of the sample document ('en' | 'es')
const RECIPE = 'film-club-video-qr';
// ─── 1 · Design ─────────────────────────────────────────────────────────────
// #region palette: a screen-black ink, one red, and a colour for each film
const palette = {
ink: '#1d1b20', paper: '#f6f1e7', // text and the cover band; the page
accent: '#b8321c', gold: '#e9b44c', muted: '#6b6157', // kickers; the band's accent; credits
orange: '#1f3d44', peach: '#3f6b35', mango: '#2c3746', spring: '#3d5a78', // the title cards
};
// A linked colour carries its hex too, so designs and defaults read the same value.
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = [
...Object.entries(palette).map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } })),
// The engine's defaults link to 'main-color': point it at the accent, so nothing prints blue.
{ id: 'main-color', name: 'accent (defaults)', value: { hex: palette.accent, model: 'hex' } },
];
// #endregion
const [TEXT, DISPLAY, LABEL] = ['Literata', 'Big Shoulders Display', 'Barlow Semi Condensed'];
const TRIM = { w: 165, h: 235 }; // mm: a programme booklet, a little larger than A5
const [TOP, INNER, OUTER, LEAD] = [22, 18, 22, 14]; // margins in mm (a 125 mm measure); leading, pt
const CARD = { w: 1600, h: 900 }; // px: the title cards, 16:9 like the films, 325 dpi at 125 mm
// #region answer: a video resource per film, printed as its poster with a play mark and a QR code
const videoStyle = {
// The mark sits top left and the code bottom right, so they never meet on a 70 mm poster.
playMark: { shape: 'rounded', position: 'top-left', size: mm(8), inset: mm(4),
color: col('paper'), background: col('accent'), backgroundOpacity: 1 },
// https://youtu.be/<id> is 28 characters: 29 modules at level Q, and a quiet zone of 2 a side
// makes modules of 0.61 mm on a 20 mm plate, twice what a phone camera needs.
qr: { position: 'bottom-right', size: mm(20), inset: mm(3), errorCorrection: 'Q',
quietZone: 2, color: col('ink'), background: col('paper'), radius: mm(1.2) },
linkPoster: true, // the PDF draws a link over each poster
};
const film = (f) => ({
id: f.id, typeId: 'video', kind: 'video', createdAt: 0, updatedAt: 0,
caption: `${f.title}. ${t(f.about)}.`, altText: t(f.alt),
note: `${f.licence} · ${f.address}`, // for a phone that does not read the code
يعمل ملف script.js المجمّع كما هو: الصقه في سكربت الوحدة (module) لأي صفحة، أو افتح الوصفة على CodePen. مجلد الوصفة على GitHub ↗ (يفتح في تبويب جديد)
تنويعات
#اطبع لقطة الفيلم نفسه
اجلب أكبر صورة مصغرة على YouTube بدل رسم بطاقة، إن سمح ترخيص الفيلم والاستضافة التي تستعملها بذلك، وصرّح بمقاس اللقطة.
-for (const f of FILMS) await titleCard(f); // after the fonts: the cards set type too
+for (const f of FILMS) { // 1280 × 720, maxresdefault.jpg, the first of youtubePosterUrls
+ await loadImage(`${f.id}.png`, youtubePosterUrls(parseVideoUrl(f.address).id)[0]);
+}#شغّل الأفلام في نسخة HTML
تضع renderToHtml لكل فيديو مشغّل YouTube المعزَّز الخصوصية، ويعرض EPUB الغلاف مرتبطًا بالفيلم؛ ومع videoStyle.html: 'poster' تظهر البطاقة المطبوعة على الشاشة أيضًا. انظر مقاطع الفيديو ونمط الفيديو.
#ضع علامة تشغيل أكبر في الوسط
علامة في وسط البطاقة تُعرف مشغّلًا من آخر القاعة؛ والبطاقات تترك شريطها الأوسط بلا نص، فلا تغطي العلامة إلا الزخرفة.
- playMark: { shape: 'rounded', position: 'top-left', size: mm(8), inset: mm(4),
+ playMark: { shape: 'rounded', position: 'center', size: mm(14), inset: mm(4),أخطاء شائعة
خطأ شائع
الصور النقطية تأخذ مقاس طباعتها من دقتها: صرّح بالدقة لا ببكسلات محسوبة للطباعة
الصورة النقطية بلا دقة تُوضع ببكسل لكل بكسل تخطيط بدقة dpi المستند، فصورة من 2400 px عرضها 406 mm في صفحة 150 dpi. صرّح ببكسلات الملف الحقيقية وأعطِ الصورة دقتها (bitmap.resolution: 300)، أو اضبط layout.bitmapResolution لكل الصور النقطية: قيمة ppi، أو 'file' لقراءة الدقة التي يذكرها الملف. يظل العمود يحدّ الصورة. الأشكال والجداول بوصفها موارد →
خطأ شائع
::resource{id="…"} لا يقبل إلا علامتي الاقتباس المزدوجتين
لا يُتعرَّف على التضمين الكتلي إلا بالصيغة ::resource{id="…"} بعلامتي اقتباس مزدوجتين؛ وأي صيغة أخرى تبقى في النص سطرًا ظاهرًا. أشكال في هذا الموضع بالضبط →
تحذير الإخراج · videoWithoutPoster
فيديو بلا غلاف
السبب. مورد فيديو يستعمله النص ليس له `video.poster`، فيظهر في المطبوع مربع داكن بنسبة الفيديو مع علامة التشغيل ورمز QR.
الحل. حدّد للفيديو صورة غلاف: لقطة منه أو صورة خاصة بك (`{ fileId, format, width, height }`)، وسجّل صورتها النقطية كأي صورة.
- يحدّ المحرّك الرمزَ بـ 45 % من الضلع الأقصر للغلاف، والعلامةَ بـ 40 %. في غلاف صغير يصغر الرمز ذو 20 مم وتصغر وحداته معه: رمز بطول 20 مم يحتاج غلافًا لا يقل ارتفاعه عن 45 مم.
- يغطي العنصران اللذان لهما الموضع نفسه أحدهما الآخر. ضع العلامة والرمز في ركنين مختلفين، وارسم الغلاف وهذان الركنان خاليان.
الحقوق
- الوصفة
- Ignacio Ferro
- النص
- نص أصلي, CC BY 4.0
- الصور
- Title card for Elephants Dream, drawn in code. The film, © 2006 Blender Foundation and Netherlands Media Art Institute, CC BY 2.5, is linked from the page, not reproduced · Ignacio Ferro · أصلي
- Title card for Big Buck Bunny, drawn in code. The film, © 2008 Blender Foundation, CC BY 3.0, is linked from the page, not reproduced · Ignacio Ferro · أصلي
- Title card for Tears of Steel, drawn in code. The film, © 2012 Blender Foundation, CC BY 3.0, is linked from the page, not reproduced · Ignacio Ferro · أصلي
- Title card for Spring, drawn in code. The film, © 2019 Blender Foundation (Blender Studio), CC BY 4.0, is linked from the page, not reproduced · Ignacio Ferro · أصلي
- الخطوط
- Literata (SIL OFL 1.1) · Big Shoulders Display (SIL OFL 1.1) · Barlow Semi Condensed (SIL OFL 1.1)
- الشيفرة
- MIT، مثل Postext
حرّر هذا الشرح ↗ (يفتح في تبويب جديد)مجلد الوصفة على GitHub ↗ (يفتح في تبويب جديد)
