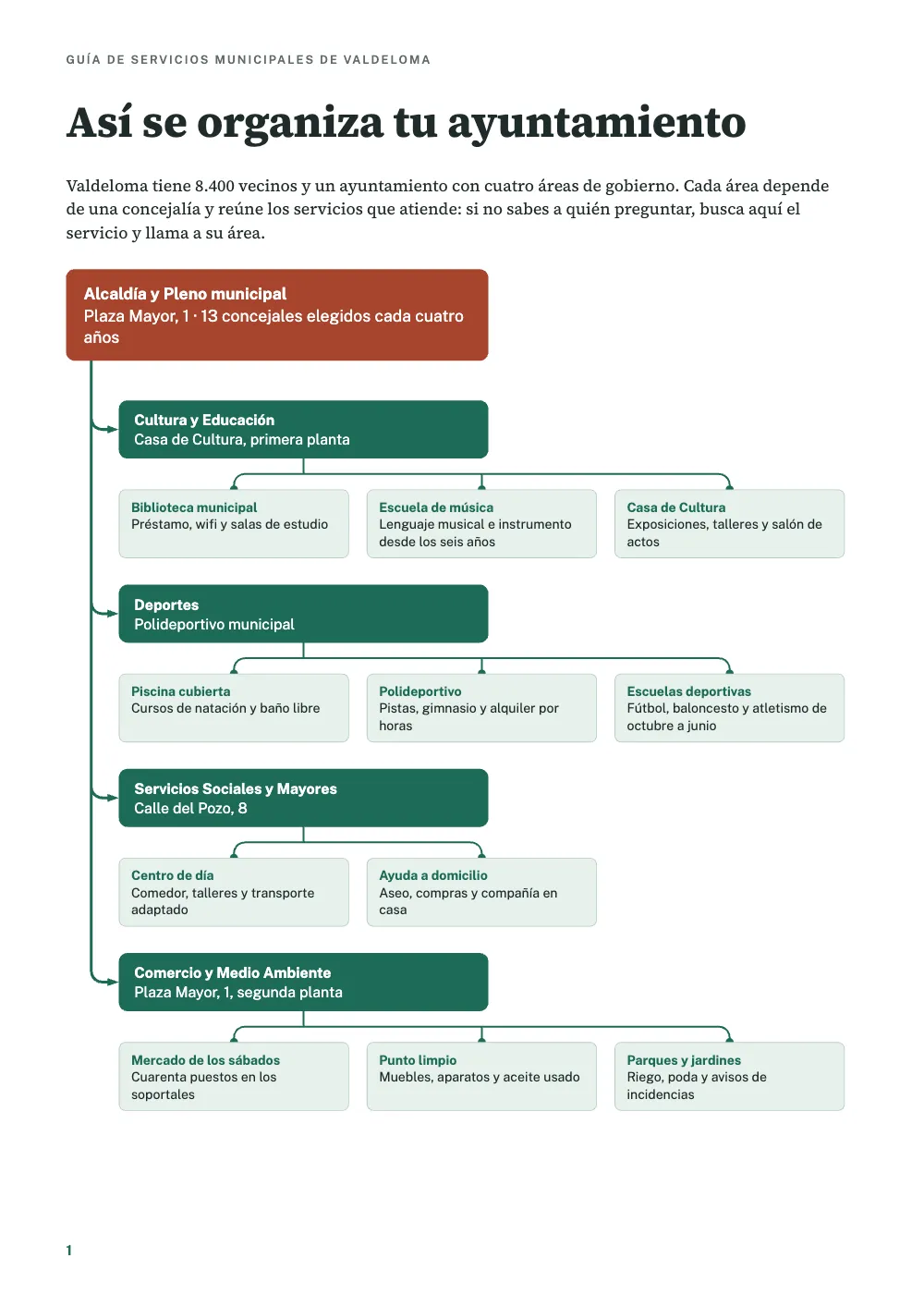

Un organigrama y una rejilla de fotos hechos con módulos

// The page template draws the head of the chart and a group that takes the page's modules;
// the module draws one area: its box, a grid of its services and the lines between them.
const area = {
  id: 'area', role: 'module',
  frames: [
    { name: 'concejalia', style: 'area', width: mm(84), placement: at('container', 'top-left') },
    { name: 'servicio', style: 'servicio' }, // repeated: one per :::frame{slot="servicio"}
  ],
  groups: [{ name: 'servicios', kind: 'grid', columns: 3, columnGap: mm(4), rowGap: mm(4),
    repeat: { frames: ['servicio'] }, // rowAlign 'stretch': a row's boxes are one height
    placement: { ...at('#concejalia', 'below', 0, 7), size: { width: 'fill', height: 'fill' } } }],
  decoration: { elements: [
    // From the area down to each of its services: a tree with a bar over the row.
    line({ id: 'rama', routing: 'tree', from: { to: '#concejalia', side: 'bottom' },
      to: { to: '#servicio[*]', side: 'top' }, endCap: 'dot', capSize: mm(1.8) }),
    // From the mayor's box, a frame of the page, to this area: the spine and its branch.
    line({ id: 'tronco', routing: 'elbow', width: pt(1.8),
      from: { to: '#alcaldia', side: 'bottom', at: 0.06 }, to: { to: '#concejalia', side: 'left' },
      endCap: 'arrow', capSize: mm(2.6) }),
  ] },
};
const chart = {
  id: 'organigrama',
  frames: [
    { name: 'titulo', takes: 'h1', width: mm(W), placement: at('container', 'top-left') },
    { name: 'entradilla', flow: true, width: mm(W) },
    { name: 'alcaldia', style: 'alcaldia', width: mm(96) },
  ],
  groups: [{ name: 'cabeza', kind: 'stack', gap: mm(6),
    frames: ['titulo', 'entradilla', 'alcaldia'] },
    { name: 'areas', modules: true, gap: mm(6), placement: { ...at('#alcaldia', 'below', SPINE, 9),
      size: { width: mm(W - SPINE), height: 'fill' } } }],
};

const gallery = {
  id: 'galeria', role: 'module',
  frames: [

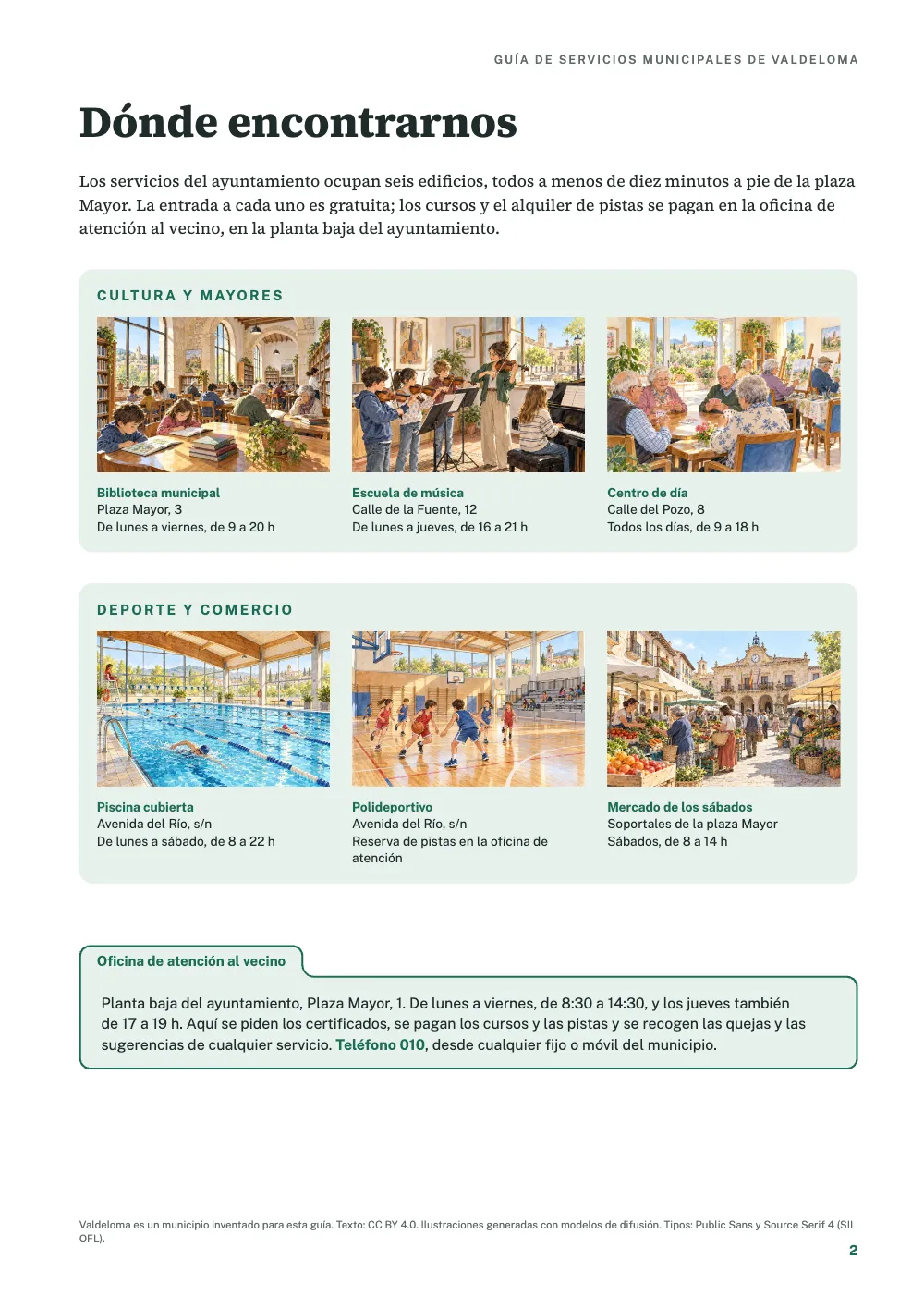

    { name: 'cabecera', takes: 'h2', placement: at('container', 'top-left', 4, 4) },
    { name: 'foto', style: 'marco' }, // the photo of a card
    { name: 'pie', style: 'ficha', placement: at('#foto', 'below', 0, 2.5) }, // and its words
  ],
  groups: [{ name: 'fotos', kind: 'grid', columns: 3, columnGap: mm(5), rowGap: mm(6),
    rowAlign: 'start', repeat: { frames: ['foto', 'pie'] },
    placement: { ...at('#cabecera', 'below', 0, 3), size: { width: mm(W - 8), height: 'fill' } } }],
  // The module's own ground: a tint as large as the module, whatever its rows.
  decoration: { elements: [{ kind: 'box', id: 'suelo', decorative: true,
    placement: { ...at('container', 'top-left'), size: { width: 'fill', height: 'fill' } },
    style: { backgroundColor: col('tint'), borderRadius: mm(3) } }] },
};
// A notice box as a module of its own: one frame whose tab grows out of the box (joined).
const notice = { id: 'aviso', role: 'module', frames: [{ name: 'texto', style: 'aviso',
  placement: at('container', 'top-left', 0, 7) }] };
const places = {
  id: 'centros',
  frames: [
    { name: 'titulo', takes: 'h1', width: mm(W), placement: at('container', 'top-left') },
    { name: 'entradilla', flow: true, width: mm(W) },
    { name: 'colofon', style: 'colofon', optional: true, width: mm(W),
      placement: at('container', 'bottom-left', 0, 8) },
  ],
  groups: [{ name: 'cabeza', kind: 'stack', gap: mm(5), frames: ['titulo', 'entradilla'] },
    { name: 'galerias', modules: true, gap: mm(7), placement: { ...at('#entradilla', 'below', 0, 7),
      size: { width: mm(W), height: 'fill' } } }],
};

const ART = {
  biblioteca: t({ es: 'La sala de lectura de la biblioteca, con estanterías de madera y vecinos '
      + 'de todas las edades leyendo en mesas largas.',
    en: 'The library reading room, with wooden shelves and neighbours of every age reading at '
      + 'long tables.' }),
  musica: t({ es: 'Un aula de la escuela de música: niños con violines, una profesora y una niña '
      + 'al piano.',
    en: 'A room of the music school: children with violins, a teacher and a girl at the piano.' }),
  'centro-mayores': t({ es: 'El centro de día: mayores jugando a las cartas y pintando junto a '
      + 'una puerta al jardín.',
    en: 'The day centre: older people playing cards and painting beside a door to the garden.' }),
  piscina: t({ es: 'La piscina cubierta bajo un techo de madera, con nadadores en las calles y un '
      + 'socorrista.',
    en: 'The covered pool under a timber roof, with swimmers in the lanes and a lifeguard.' }),
  polideportivo: t({ es: 'La pista del polideportivo, con niños jugando al baloncesto y gradas a '
      + 'un lado.',
    en: 'The sports hall court, with children playing basketball and stands along one side.' }),
  mercado: t({ es: 'El mercado de los sábados en los soportales de la plaza, con el ayuntamiento '
      + 'al fondo.',
    en: 'The Saturday market under the arcades of the square, with the town hall behind.' }),
};
const resources = await Promise.all(Object.entries(ART).map(async ([id, altText]) => {
  const fileId = `${id}-900.jpg`;
  await loadImage(fileId, asset(fileId));
  return { id, typeId: 'foto', kind: 'bitmap', caption: '', altText, createdAt: 0, updatedAt: 0,
    bitmap: { fileId, format: 'jpeg', width: 900, height: 600, resolution: 400 } };
}));

const palette = {
  ink: '#1f2b2a', // text
  green: '#1d6b57', // the lines of the chart, the areas' boxes, the headings
  mayor: '#a8452e', // the box at the head of the chart
  tint: '#e6f1ec', // the services' boxes and the galleries' ground
  rule: '#b9cbc3', // the hairline round a service
  muted: '#5c6b67', // running heads and the colophon
  paper: '#ffffff',
};
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = [
  ...Object.entries(palette).map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } })),
  { id: 'main-color', name: 'green (defaults)', value: { hex: palette.green, model: 'hex' } },
];
