Chinês vertical com citações em notas dentro da linha

// ═══ Postext Cookbook · Nº 091 · Vertical Chinese with citations in inline notes ══════
// https://postext.dev/en/cookbook/vertical-book-with-jiazhu-citations
// Code: MIT · Text: original (CC BY 4.0) · Pictures: none
// Fonts: Noto Serif SC, Noto Sans SC, LXGW WenKai TC (SIL OFL 1.1) · Needs postext ≥ 1.12.0
import {
  buildDocument, renderPageToCanvas, clearMeasurementCache, registerCitationEngine,
  loadVerticalAlternates,
} from 'https://esm.sh/postext';
import { renderToPdf, decompressWoff2 } from 'https://esm.sh/postext-pdf';
import { createCiteprocEngine, STYLES, LOCALES } from 'https://esm.sh/postext-citeproc';

const LANG = 'en'; // @lang: the language of the frame; the chapter is Chinese in both editions
const RECIPE = 'vertical-book-with-jiazhu-citations';

// ─── 1 · Design ─────────────────────────────────────────────────────────────
// #region palette: black ink, one vermilion for the opener's rules, the paper of the page
const palette = {
  ink: '#22201c', vermilion: '#a8352a', muted: '#6d665d', paper: '#fbf8f1',
};
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = Object.entries({ ...palette, 'main-color': palette.vermilion })
  .map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));
// #endregion
const [SONG, HEI, KAI] = ['Noto Serif SC', 'Noto Sans SC', 'LXGW WenKai TC']; // 宋, 黑, 楷
const [BODY, LEAD] = [10.5, 19]; // pt: 五號 on a column pitch of 1.8 em
const cols = (n) => pt(n * LEAD); // n columns across the page

// #region answer: a note style set as 夾注, two half-size rows inside the column
// The GB/T 7714 note style turns each citation into a note. notes: 'warichu' sets the note
// in the column where the citation stands, in two rows at half the text size, the right
// row read first; a note longer than what is left of the column goes on in the next one.
// The list at the chapter's end comes from :::bibliography{scope=chapter}, numbered in
// the order the works are cited. Latin words turn sideways in the notes and in the list.
registerCitationEngine(createCiteprocEngine({ styles: STYLES, locales: LOCALES }));
const citations = {
  style: 'china-national-standard-gb-t-7714-2015-note',
  notes: 'warichu', // 夾注; 'footnote' sets the same notes at the foot of the page
  bibliography: { fontSize: em(0.9), entrySpacing: pt(0) },
};
const cjk = {
  grid: { enabled: true, charsPerLine: 36, linesPerPage: 15 },
  warichu: { fontSize: em(0.5), color: col('ink') }, // no brackets: the half size sets it off
};
// #endregion

// #region opener: 第三章 and the title in two ruled columns, the text after a blank one
// In the flow frame x runs down the column and y across the page, right to left, so a
// 'horizontal' rule is a vertical line on the sheet: three of them rule the two columns.
const [TITLE, PITCH] = [15, 1.6 * LEAD]; // pt: the title's size and its column pitch
const rule = (n) => ({ kind: 'rule', id: `rule-${n}`, direction: 'horizontal',
  thickness: pt(n === 1 ? 0.4 : 0.8), color: col('vermilion'),
  placement: { anchor: { to: 'container', edge: 'top-left' },
    offset: { y: pt(LEAD + n * PITCH) }, size: { width: 'fill' } } });
// A line of PITCH in column n (0, 1), its characters centred between two rules.
const title = (id, content, n, family, size, weight) => ({ kind: 'text', id, content,
  fontFamily: family, fontWeight: weight, fontSize: pt(size), lineHeight: PITCH / size,
  color: col('ink'), letterSpacing: pt(size * 0.25), align: 'left',
  placement: { anchor: { to: 'container', edge: 'top-left' },
    offset: { x: pt(2 * BODY), y: pt(LEAD + n * PITCH) } } }); // two characters down

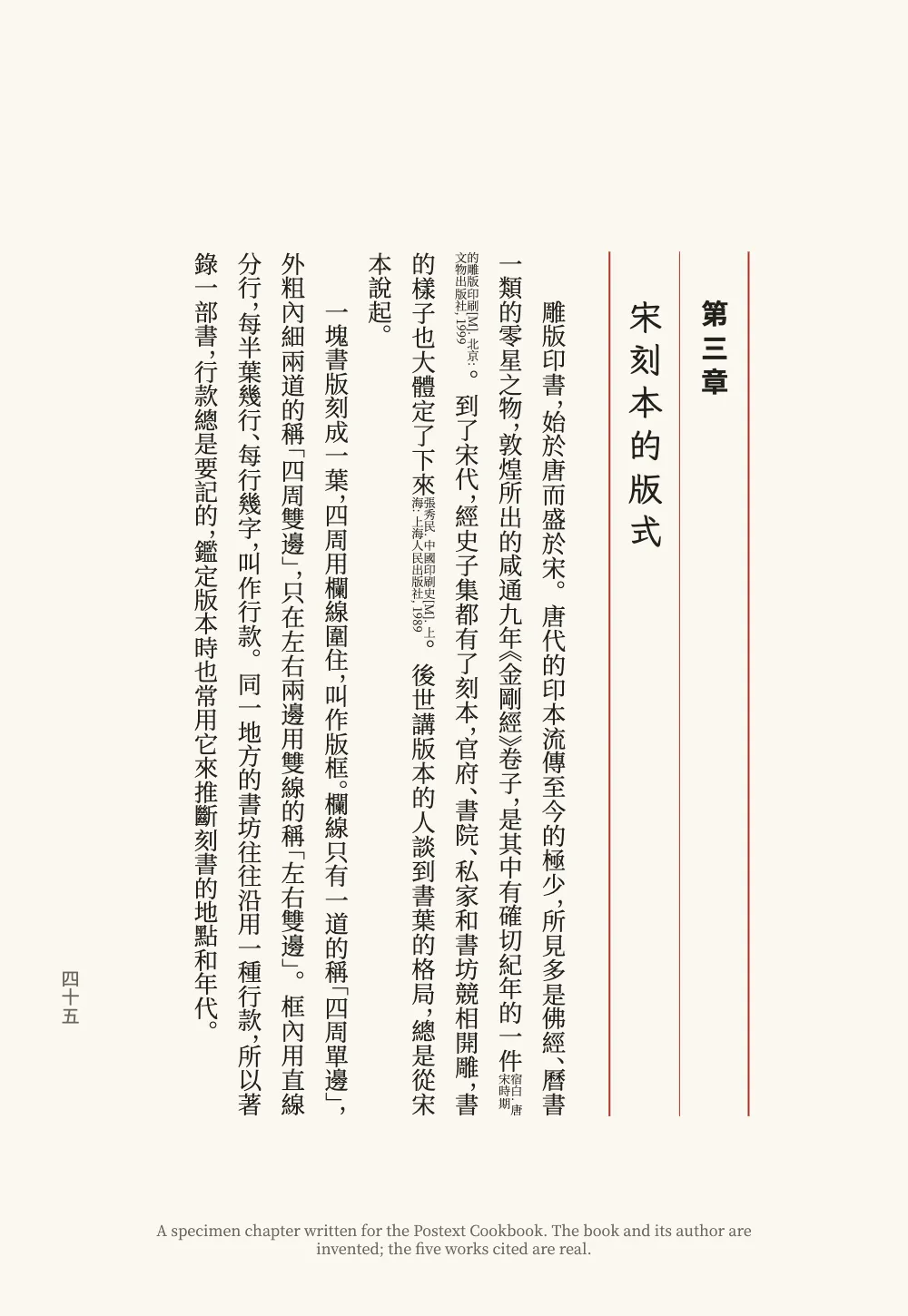

const opener = { enabled: true, minHeight: cols(5), slot: { elements: [
  rule(0), rule(1), rule(2),
  title('number', '{number}', 0, HEI, 12, 700), // 第三章 in the first column, in 黑
  title('title', '{titleText}', 1, KAI, TITLE, 400), // the title in the second, in 楷
] } };
// #endregion

// The fore-edge: the book's title or the chapter's down the outer margin, the folio low.
const foreEdge = (id, content, parity, edge, y, pages) => ({
  kind: 'text', id, content, parity, pages, writingMode: 'vertical-rl',
  fontFamily: HEI, fontSize: pt(8), color: col('muted'), overflow: 'clip',
  placement: { anchor: { to: 'outer', edge }, offset: { y: em(y) } },
});
const header = { elements: [
  foreEdge('book', '{title}', 'even', 'top', 4, 'body'),
  foreEdge('chapter', '{chapterNumber}　{chapterTitle}', 'odd', 'top', 4, 'body'),
  foreEdge('folio', '{pageNumber}', 'all', 'bottom', -5, 'all'),
  // Across the foot of the opening page, in the edition's language: what is invented.
  { kind: 'text', id: 'imprint', content: '{subtitle}', pages: 'opener', fontFamily: SONG,
    fontSize: pt(6.5), color: col('muted'), align: 'center', overflow: 'wrap',
    placement: { anchor: { to: 'page', edge: 'bottom' }, offset: { y: mm(-9) },
      size: { width: mm(100) } } },
] };

const config = () => ({ // a factory: the engine caches resolved configs per object
  // Traditional characters to the mainland's rules, as Beijing and Shanghai publishers set
  // classical scholarship (gotcha: cjk-locale-tag). The citations follow it: zh-TW terms.
  locale: 'zh-Hant-CN',
  colorPalette,
  citations,
  cjk,
  page: { sizePreset: 'custom', width: mm(140), height: mm(203), dpi: 150, // 大32開
    backgroundColor: col('paper'),
    margins: { top: mm(34), bottom: mm(26), left: mm(15), right: mm(19), mirror: true },
    pageNumbering: { format: 'trad-chinese-informal', startAt: 45 } }, // 四十五
  layout: { layoutType: 'single', writingMode: 'vertical-rl' }, // bound on the right
  bodyText: {
    fontFamily: SONG, fontSize: pt(BODY), lineHeight: pt(LEAD), color: col('ink'),
    boldColor: col('ink'), italicColor: col('ink'), referenceColor: col('ink'),
    textAlign: 'justify', firstLineIndent: em(2), indentAfterHeading: true,
  },
  headings: { fontFamily: SONG, fontWeight: 700, color: col('ink'),
    balancing: { enabled: false }, // the columns stay on the grid
    levels: [{ level: 1, numberingTemplate: '第{1:一}章', numberSeparator: '　',
      breakBefore: { enabled: true, parity: 'odd' }, // gotcha: headings-drop-h1-break
      marginBottom: pt(0), advancedDesign: opener }] },
  header,
  footer: { elements: [] },
});

// ─── 2 · Content ────────────────────────────────────────────────────────────
const markdown = String.raw`---
Amostra em Markdown · 28 linhas · content.en.md
title: "版刻叢談"
author: "沈硯秋"
subtitle: "A specimen chapter written for the Postext Cookbook. The book and its author are invented; the five works cited are real."
---

# 宋刻本的版式 {startAt=3}

雕版印書，始於唐而盛於宋。唐代的印本流傳至今的極少，所見多是佛經、曆書一類的零星之物，敦煌所出的咸通九年《金剛經》卷子，是其中有確切紀年的一件[@su1999]。到了宋代，經史子集都有了刻本，官府、書院、私家和書坊競相開雕，書的樣子也大體定了下來[@zhang1989]。後世講版本的人談到書葉的格局，總是從宋本說起。

一塊書版刻成一葉，四周用欄線圍住，叫作版框。欄線只有一道的稱「四周單邊」，外粗內細兩道的稱「四周雙邊」，只在左右兩邊用雙線的稱「左右雙邊」。框內用直線分行，每半葉幾行、每行幾字，叫作行款。同一地方的書坊往往沿用一種行款，所以著錄一部書，行款總是要記的，鑑定版本時也常用它來推斷刻書的地點和年代。

版框正中留出窄窄的一行，不刻正文，是為版心。印好的紙沿這一行對折，版心便落在書口上，翻檢時一眼可見。版心裏刻書名、卷次和葉碼，有時還刻上刻工的姓名和這一版的字數，那是當年計算工錢用的。版心上下各有一個形如魚尾的標記，叫作魚尾；魚尾到欄線之間若刻一道黑線，叫作黑口，空著不刻的叫作白口。

大體說來，浙江一帶的官刻和家刻，字體方整，多作白口、左右雙邊；福建建陽的坊刻，字體瘦勁，版式緊湊，常在框外左上角加一個小方格，刻上篇名，稱為書耳，便於讀者翻檢[@huang2005]。坊刻的書要賣得出去，處處替讀者打算，這一點從版式上也看得出來。

書末或目錄之後，常有一塊刻記，寫明何人於何年在何處刊行，有時兼作書坊的廣告，叫作牌記。牌記的形制有長方的，也有鐘形、亞字形的。後人鑑定版本，牌記是最直接的依據，可也最容易被書賈挖改作偽，所以不能單憑牌記下斷語，還要和行款、字體、紙墨、避諱字一起看。

西方學者系統地研究中國的雕版書，是二十世紀的事。Carter的專著第一次把中國印刷術的發明及其西傳完整地介紹給英語讀者[@carter1925]；Twitchett則從書業和讀者的角度，討論中古時期的印刷與出版[@twitchett1983]。兩書所談雖不限於版式，卻都把宋代看作雕版書定型的時代，和中國學者的看法相合。

:::bibliography{title="本章引用書目" scope=chapter}

:::references{format=bibtex}
@book{su1999, author = {宿白}, title = {唐宋時期的雕版印刷}, publisher = {文物出版社}, address = {北京}, year = 1999, langid = {chinese}}
@book{zhang1989, author = {張秀民}, title = {中國印刷史}, publisher = {上海人民出版社}, address = {上海}, year = 1989, langid = {chinese}}
@book{huang2005, author = {黃永年}, title = {古籍版本學}, publisher = {江蘇教育出版社}, address = {南京}, year = 2005, langid = {chinese}}
@book{carter1925, author = {Carter, Thomas Francis}, title = {The invention of printing in China and its spread westward}, publisher = {Columbia University Press}, address = {New York}, year = 1925, langid = {english}}
@book{twitchett1983, author = {Twitchett, Denis}, title = {Printing and publishing in medieval China}, publisher = {Frederic C. Beil}, address = {New York}, year = 1983, langid = {english}}
:::
`; // content.<lang>.md: the same Chinese text in both

// ─── 3 · Fonts ──────────────────────────────────────────────────────────────
const FONTS = { // every face the pages use, loaded before the build (gotcha: fonts-first)
  'Noto Serif SC': ['400', '700'], // SONG: the text, notes, list, imprint; the list's title
  'Noto Sans SC': ['400', '700'], // HEI: the fore-edge heads and folios; 第三章
  'LXGW WenKai TC': ['400'], // KAI: the chapter's title
};

// ─── 4 · Build & show ───────────────────────────────────────────────────────
// Each voice loads the files of what it sets; the Song also what the style writes.
const heading = markdown.match(/^# (.*?)(?: \{.*\})?$/m)[1]; // the title, no attributes
const book = markdown.match(/^title: "(.*)"/m)[1]; // 版刻叢談, the head of the even pages
const numerals = '第章一二三四五六七八九十';
await loadFonts(FONTS, markdown);
await loadCjkFonts({ [SONG]: ['400'] }, `${markdown}卷等頁`, { vertical: true });
await loadCjkFonts({ [HEI]: ['400'] }, `${heading}${book}${numerals}`, { vertical: true });
await loadCjkFonts({ [SONG]: ['700'] }, markdown.match(/bibliography\{title="([^"]*)"/)[1],
  { vertical: true });
await loadCjkFonts({ [HEI]: ['700'] }, numerals);
await loadCjkFonts({ [KAI]: ['400'] }, heading);
const doc = await buildWithFonts(() => buildDocument({ markdown }, config()), markdown);
showBook(doc, { title: t({ en: 'Vertical Chinese with citations in inline notes',
  es: 'Chino vertical con citas en notas dentro del renglón' }) });
offerPdf(() => renderToPdf(doc, { fontProvider: cjkPdfProvider }), `${RECIPE}.pdf`);

Kit · core, fonts, viewer, pdf, cjk: igual em todas as receitas · 459 linhas
// ─── Kit ── helpers shared by every Cookbook recipe · postext.dev/cookbook ─────

// ─── Kit · core v1 ── the same in every recipe · postext.dev/cookbook
function mm(value) { return { value, unit: 'mm' }; }
function pt(value) { return { value, unit: 'pt' }; }
function em(value) { return { value, unit: 'em' }; }
/** The sample language's string: t({ en: 'Figure', es: 'Figura' }). */
function t(strings) { return strings[LANG] ?? Object.values(strings)[0]; }
/** A file in this recipe's assets folder, served from the Postext repo by jsDelivr. */
function asset(file) { return `https://cdn.jsdelivr.net/gh/drnachio/postext@main/cookbook/${RECIPE}/assets/${file}`; }

// ─── Kit · fonts v2 ── the same in every recipe · postext.dev/cookbook
// Postext measures with the loaded faces and caches the widths: load every face
// before the first build, from Fontsource, the files the PDF embeds too.

/** faces = { 'Family Name': ['400', '400i', '700'] }. `text` is the sample:
 *  č ł † α χ also load latin-ext and greek files (kitSubsetsFor). With
 *  `optional`, a face Fontsource does not ship is skipped instead of failing.
 *  Resolves to the number of faces added. */
async function loadFonts(faces, text = '', { optional = false } = {}) {
  kitStatus('Loading fonts…');
  const ranges = {
    latin: 'U+0000-00FF,U+0131,U+0152-0153,U+02BB-02BC,U+02C6,U+02DA,U+02DC,U+0304,U+0308,U+0329,'
      + 'U+2000-206F,U+20AC,U+2122,U+2191,U+2193,U+2212,U+2215,U+FEFF,U+FFFD',
    'latin-ext': 'U+0100-02BA,U+02BD-02C5,U+02C7-02CC,U+02CE-02D7,U+02DD-02FF,U+0304,U+0308,U+0329,'
      + 'U+1D00-1DBF,U+1E00-1E9F,U+1EF2-1EFF,U+2020,U+20A0-20AB,U+20AD-20C0,U+2113,U+2C60-2C7F,U+A720-A7FF',
    greek: 'U+0370-03FF',
  };
  const jobs = [];
  let added = 0;
  for (const [family, specs] of Object.entries(faces)) {
    const id = fontsourceId(family);
    const todo = [...new Set(specs)].map((spec) => [parseInt(spec, 10), spec.endsWith('i') ? 'italic' : 'normal'])
      .filter(([weight, style]) => !hasFace(family, weight, style)); // before any await
    const meta = optional || /[^\0-ÿ]/u.test(text) ? await fontsourceMeta(family) : null;
    const subsets = ['latin', ...kitSubsetsFor(text, meta)];
    for (const [weight, style] of todo) {
      if (optional && !(meta?.weights.includes(weight) && meta.styles.includes(style))) continue;
      for (const subset of subsets) {
        const url = `https://cdn.jsdelivr.net/npm/@fontsource/${id}@5/files/${id}-${subset}-${weight}-${style}.woff2`;
        const face = new FontFace(family, `url(${url}) format('woff2')`,
          { weight: String(weight), style, unicodeRange: ranges[subset] });
        jobs.push(face.load().then((ready) => { document.fonts.add(ready); added++; }, () => {
          if (subset === 'latin' && !optional) throw new Error(`Fontsource has no ${family} ${weight} ${style}`);
        }));
      }
    }
  }
  await Promise.all(jobs).catch((error) => { kitFail(error); throw error; });
  return added;
}

/** Runs `build` and loads any face the pages use that FONTS missed (a regular
 *  one with a warning), then clears the measurement cache and builds again. */
async function buildWithFonts(build, text = '') {
  const tried = new Set();
  for (let round = 0; round < 3; round++) {
    kitStatus('Laying out…');
    await new Promise(requestAnimationFrame);          // let the status paint first
    const result = await Promise.resolve().then(build).catch((error) => { kitFail(error); throw error; });
    const wanted = { base: {}, variants: {} };
    for (const { font, base } of [result].flat().flatMap(fontStringsOf)) {
      const { family, weight, style } = parseFont(font);
      const key = `${family}|${weight}|${style}`;
      if (tried.has(key) || hasFace(family, weight, style)) continue;
      tried.add(key);
      (wanted[base ? 'base' : 'variants'][family] ??= []).push(`${weight}${style === 'italic' ? 'i' : ''}`);
    }
    if (Object.keys(wanted.base).length) {
      console.warn(`[cookbook] FONTS does not list ${JSON.stringify(wanted.base)}: loading them.`);
    }
    const added = await loadFonts(wanted.base, text) + await loadFonts(wanted.variants, text, { optional: true });
    if (added === 0) return result;
    clearMeasurementCache();
  }
  throw new Error('The fonts did not settle after three builds.');
}

/** Every font string of the layout; `base` marks a block's own face. */
function fontStringsOf(doc) {
  const found = new Map();
  const walk = (node) => {
    if (!node || typeof node !== 'object') return;
    if (Array.isArray(node)) { node.forEach(walk); return; }
    for (const [key, value] of Object.entries(node)) {
      if (typeof value === 'string' && /fontString$/i.test(key)) {
        found.set(value, found.get(value) || key === 'fontString');
      } else if (value && typeof value === 'object') walk(value);
    }
  };
  walk(doc.pages);
  walk(doc.blocks);
  return [...found].map(([font, base]) => ({ font, base }));
}

/** '700 37.5px Open Sans' / 'italic 400 13px "Source Serif 4"' → { family, weight, style }.
 *  A string with no weight ('95.8px Young Serif', from a design text) is 400. */
function parseFont(font) {
  const m = /^(?:(italic|oblique)\s+)?(?:small-caps\s+)?(?:(\d+|bold|normal)\s+)?[\d.]+px\s+(.+)$/.exec(font.trim());
  if (!m) throw new Error(`Unexpected font string: ${font}`);
  const weight = m[2] === 'bold' ? 700 : !m[2] || m[2] === 'normal' ? 400 : Number(m[2]);
  return { family: m[3].replace(/^["']|["']$/g, ''), weight, style: m[1] ? 'italic' : 'normal' };
}

/** A loaded FontFace covers this family, weight and style (fonts.check() would
 *  also say yes for families nobody declared). */
function hasFace(family, weight, style) {
  for (const face of document.fonts) {
    if (face.status !== 'loaded' || face.style !== style) continue;
    if (face.family.replace(/^["']|["']$/g, '') !== family) continue;
    const [low, high = low] = face.weight.split(' ').map(Number);
    if (weight >= low && weight <= high) return true;
  }
  return false;
}

/** The files beyond latin `text` needs that `meta`'s family ships. */
function kitSubsetsFor(text, meta) {
  return [[/[Ā-˿ᴀ-ᶿḀ-ỿ†ℓⱠ-Ɀ꜠-ꟿ]/u, 'latin-ext'], [/[Ͱ-Ͽ]/u, 'greek']]
    .filter(([re, x]) => re.test(text) && meta?.subsets?.includes(x)).map(([, x]) => x);
}

/** Fontsource's id for a family: 'Source Serif 4' → 'source-serif-4'. */
function fontsourceId(family) { return family.toLowerCase().replace(/\s+/g, '-'); }

/** The family's Fontsource metadata (weights, styles, subsets), or null. */
function fontsourceMeta(family) {
  fontsourceMeta.cache ??= new Map();
  const id = fontsourceId(family);
  if (!fontsourceMeta.cache.has(id)) {
    fontsourceMeta.cache.set(id, fetch(`https://api.fontsource.org/v1/fonts/${id}`)
      .then((res) => (res.ok ? res.json() : null), () => null));
  }
  return fontsourceMeta.cache.get(id);
}

// ─── Kit · viewer v1 ── the same in every recipe · postext.dev/cookbook
/** The pages as spreads on a dark desk, page 1 alone, then verso | recto,
 *  each painted when it scrolls near. */
function showPages(docs, { title, width = 460 } = {}) {
  const root = viewer(title);
  const pages = [docs].flat().flatMap((doc) =>
    doc.pages.map((page) => ({ doc, page, n: (doc.pageIndexOffset ?? 0) + page.index })));
  const spreads = [];
  let verso = null;
  for (const p of pages) {
    if (p.n % 2 === 1) { if (verso) spreads.push([verso, null]); verso = p; }
    else { spreads.push([verso, p]); verso = null; }
  }
  if (verso) spreads.push([verso, null]);
  const density = Math.min(window.devicePixelRatio || 1, 2);
  showPages.painter?.disconnect();
  const painter = new IntersectionObserver((entries) => {
    for (const { isIntersecting, target } of entries) {
      if (!isIntersecting) continue;
      painter.unobserve(target);
      const { doc, page } = target.postext;
      renderPageToCanvas(page, doc, target, { scale: (width * density) / page.width });
    }
  }, { rootMargin: '800px' });
  showPages.painter = painter;
  root.replaceChildren(...spreads.map((pair) => {
    const spread = document.createElement('div');
    spread.className = 'pt-spread';
    for (const p of pair) {
      const figure = document.createElement('figure');
      if (p) {
        const label = p.page.pageLabel || String(p.n + 1);
        const canvas = document.createElement('canvas');
        canvas.postext = p;
        canvas.style.aspectRatio = `${p.page.width} / ${p.page.height}`;
        canvas.setAttribute('role', 'img');
        canvas.setAttribute('aria-label', `Page ${label}`);
        const folio = document.createElement('figcaption');
        folio.textContent = label;
        figure.append(canvas, folio);
        painter.observe(canvas);
      } else figure.className = 'pt-blank';
      spread.append(figure);
    }
    return spread;
  }));
  kitStatus(`${pages.length} ${pages.length === 1 ? 'page' : 'pages'}`);
  document.documentElement.dataset.postext = 'ready';
  return pages.length;
}

/** The desk, the bar and the error reporting, created once. */
function viewer(title) {
  if (!document.getElementById('pt-kit')) {
    document.head.insertAdjacentHTML('beforeend', `<style id="pt-kit">
      :root { color-scheme: dark; }
      body { margin: 0; background: #0e1014; color: #b9bcc4; font: 13px/1.45 system-ui, sans-serif; }
      #pt-bar { position: sticky; top: 0; z-index: 1; display: flex; flex-wrap: wrap; align-items: center;
        gap: 6px 16px; padding: 10px 16px; background: rgb(14 16 20 / .92); backdrop-filter: blur(6px);
        border-bottom: 1px solid #23262d; }
      #pt-bar strong { color: #f4f1ea; font-weight: 600; }
      #pt-actions { display: flex; gap: 12px; margin-left: auto; }
      #pt-actions a, #pt-actions button { color: #d8a21a; font: inherit; background: none; border: 0; padding: 0; cursor: pointer; }
      #pages { display: grid; justify-items: center; gap: 48px; padding: 32px 16px 72px; }
      .pt-spread { display: flex; }
      .pt-spread figure { margin: 0; width: min(460px, 44vw); }
      .pt-spread canvas { display: block; width: 100%; background: #fff;
        box-shadow: 0 1px 2px rgb(0 0 0 / .5), 0 22px 44px -16px rgb(0 0 0 / .8); }
      .pt-spread figure:first-child canvas { box-shadow: inset -14px 0 14px -14px rgb(0 0 0 / .18), 0 1px 2px rgb(0 0 0 / .5), 0 22px 44px -16px rgb(0 0 0 / .8); }
      .pt-spread figcaption { margin-top: 10px; text-align: center; font: 600 10px/1 system-ui, sans-serif;
        letter-spacing: .18em; text-transform: uppercase; color: #6c7079; }
      .pt-blank { visibility: hidden; }
      @media (max-width: 760px) {
        .pt-spread { flex-direction: column; gap: 32px; }
        .pt-spread figure { width: min(460px, 92vw); }
        .pt-blank { display: none; }
      }
    </style>`);
    document.body.insertAdjacentHTML('afterbegin',
      '<header id="pt-bar"><strong id="pt-title"></strong><span id="pt-status" role="status"></span><span id="pt-actions"></span></header>');
    document.getElementById('pt-title').textContent = document.title || 'Postext';
    addEventListener('error', (event) => kitFail(event.error ?? event.message));
    addEventListener('unhandledrejection', (event) => kitFail(event.reason));
  }
  if (title) document.getElementById('pt-title').textContent = title;
  return document.getElementById('pages')
    ?? document.body.appendChild(Object.assign(document.createElement('main'), { id: 'pages' }));
}

function kitStatus(text) {
  viewer();
  document.getElementById('pt-status').textContent = text;
}

function kitFail(error) {
  document.documentElement.dataset.postext = 'error';
  kitStatus(`Error: ${error?.message ?? error}`);
}

// ─── Kit · pdf v2 ── the same in every recipe that exports a PDF
/** The Fontsource files the screen used, as TrueType: the nearest weight the
 *  family ships, upright if it has no italic; latin, then what the face's
 *  letters need (kitSubsetsFor). */
async function fontsourceProvider(family, weight, style, request) {
  const id = fontsourceId(family);
  const meta = await fontsourceMeta(family);
  const weights = meta?.weights?.length ? meta.weights : [400, 700];
  const w = weights.reduce((a, b) => (Math.abs(b - weight) < Math.abs(a - weight) ? b : a));
  const s = style === 'italic' && meta && !meta.styles.includes('italic') ? 'normal' : style;
  const text = String.fromCodePoint(...(request?.codePoints ?? []));
  const more = kitSubsetsFor(text, meta);
  const files = await Promise.all(['latin', ...more].map(async (subset) => {
    const res = await fetch(`https://cdn.jsdelivr.net/npm/@fontsource/${id}@5/files/${id}-${subset}-${w}-${s}.woff2`);
    if (!res.ok) throw new Error(`Fontsource has no ${family} ${w} ${s} ${subset}`);
    return decompressWoff2(new Uint8Array(await res.arrayBuffer()));
  }));
  return files.length === 1 ? files[0] : files;
}

/** A "Build the PDF" button; then "Open the PDF" (a new tab: CodePen's frame
 *  shows no PDFs) and a download link. */
function offerPdf(makePdf, filename) {
  viewer();
  const button = Object.assign(document.createElement('button'), { type: 'button', textContent: 'Build the PDF' });
  button.dataset.postextPdf = filename;
  button.addEventListener('click', async () => {
    button.disabled = true;
    button.textContent = 'Building the PDF…';
    try {
      const bytes = await makePdf();
      const url = URL.createObjectURL(new Blob([bytes], { type: 'application/pdf' }));
      const size = `${Math.max(1, Math.round(bytes.length / 1024))} KB`;
      button.replaceWith(
        Object.assign(document.createElement('a'), { href: url, target: '_blank', rel: 'noopener', textContent: 'Open the PDF ↗' }),
        Object.assign(document.createElement('a'), { href: url, download: filename, textContent: `Download ${filename} · ${size}` }));
    } catch (error) {
      button.disabled = false;
      button.textContent = 'Build the PDF';
      kitFail(error);
    }
  });
  document.getElementById('pt-actions').append(button);
}

// ─── Kit · cjk v1 ── Chinese, Japanese and Korean books · postext.dev/cookbook
// Fontsource ships a CJK family as about a hundred files per weight, each
// declared in its stylesheet with the unicode-range it covers. The screen
// loads the files the sample touches; the PDF gets the same files for the
// characters its pages set in each face, and embeds each as a subset.
// A book bound on the right (vertical text) is shown with its spreads
// mirrored: page 1 alone on the left of the spine, then [3 | 2].

/** The files of a Fontsource face, read from its stylesheet: { url, range,
 *  ranges }, the last declared first (the order the browser tries them in). */
function cjkSlices(family, weight, style) {
  cjkSlices.cache ??= new Map();
  const id = fontsourceId(family);
  const css = `https://cdn.jsdelivr.net/npm/@fontsource/${id}@5/${weight}${style === 'italic' ? '-italic' : ''}.css`;
  if (!cjkSlices.cache.has(css)) {
    cjkSlices.cache.set(css, fetch(css)
      .then((res) => {
        if (!res.ok) throw new Error(`Fontsource has no ${family} ${weight} ${style} (${res.status})`);
        return res.text();
      })
      .then((text) => [...text.matchAll(/@font-face\s*{([^}]*)}/g)].map(([, rule]) => {
        const range = /unicode-range:\s*([^;]+);/.exec(rule)?.[1].trim() ?? 'U+0-10FFFF';
        const ranges = range.split(',').map((part) => {
          const [lo, hi = lo] = part.trim().slice(2).split('-');
          return [parseInt(lo, 16), parseInt(hi, 16)];
        });
        return { url: new URL(/url\(([^)]+?\.woff2)\)/.exec(rule)[1], css).href, range, ranges };
      }).reverse()));
  }
  return cjkSlices.cache.get(css);
}

/** The file of `slices` that holds code point `cp`, if any. */
function cjkSliceFor(slices, cp) {
  return slices.find((slice) => slice.ranges.some(([lo, hi]) => cp >= lo && cp <= hi));
}

/** Whether Fontsource serves `family` as a Chinese, Japanese or Korean
 *  family (its subsets name the script). Fails when the API does not
 *  answer: a CJK face taken for a Latin one would paint in a system face. */
async function isCjkFamily(family) {
  const meta = await fontsourceMeta(family);
  if (!meta) throw new Error(`api.fontsource.org did not describe ${family}: reload to try again`);
  return !!meta.subsets?.some((subset) => /^(chinese|japanese|korean)/.test(subset));
}

/** faces = { 'Noto Serif TC': ['400', '700'] }, as for loadFonts: the
 *  whole FONTS object may be passed, its other families are left to
 *  loadFonts. Adds one FontFace per file of each CJK face with its
 *  unicodeRange, then loads the files `text` touches. `text` is what the
 *  faces set: the sample for the text face; a book in several voices calls
 *  it once per voice (loadCjkFonts({ 'LXGW WenKai TC': ['400'] }, quotes)),
 *  so the heading and quotation faces fetch and check only their own
 *  characters. Fails when a character of `text` is in no file of a face.
 *  List every weight the pages use: a weight left to buildWithFonts gets
 *  the latin file only. With { vertical: true } it also loads each
 *  family's vertical forms (brackets, quotes, pause marks) for the canvas,
 *  which needs loadVerticalAlternates imported from postext. Resolves to
 *  the number of files loaded. */
async function loadCjkFonts(faces, text, { vertical = false } = {}) {
  kitStatus('Loading fonts…');
  let loaded = 0;
  try {
    if (vertical && typeof loadVerticalAlternates !== 'function') {
      throw new Error('loadCjkFonts(…, { vertical: true }) needs loadVerticalAlternates imported from postext');
    }
    for (const [family, specs] of Object.entries(faces)) {
      if (!(await isCjkFamily(family))) continue;
      const twin = [];
      for (const spec of new Set(specs)) {
        const weight = parseInt(spec, 10);
        const style = spec.endsWith('i') ? 'italic' : 'normal';
        const slices = await cjkSlices(family, weight, style);
        const missing = [...new Set(text)].filter((ch) => /\S/.test(ch) && !cjkSliceFor(slices, ch.codePointAt(0)));
        if (missing.length) {
          throw new Error(`${family} ${spec} has no file for ${missing.slice(0, 12).join(' ')}: `
            + `give each face the text it sets (loadCjkFonts({ '${family}': ['${spec}'] }, text))`);
        }
        for (const slice of slices) {
          document.fonts.add(new FontFace(family, `url(${slice.url}) format('woff2')`,
            { weight: String(weight), style, unicodeRange: slice.range }));
          twin.push({ source: slice.url, weight: String(weight), style, unicodeRange: slice.range });
        }
        const font = `${style === 'italic' ? 'italic ' : ''}${weight} 16px "${family}"`;
        loaded += (await document.fonts.load(font, text)).length;
        if (!document.fonts.check(font, text)) throw new Error(`${family} ${spec} did not load for the sample`);
      }
      // The same files under a twin name with the `vert` feature on: the
      // canvas paints the punctuation of vertical lines with it.
      if (vertical && twin.length) await loadVerticalAlternates(family, twin);
    }
  } catch (error) {
    kitFail(error);
    throw error;
  }
  return loaded;
}

/** The PDF font provider for recipes with CJK faces: a family whose
 *  Fontsource subsets are Chinese, Japanese or Korean gets the files that
 *  hold the characters its pages set (`request.codePoints`); any other
 *  family gets the latin file fontsourceProvider fetches (the "pdf" block)
 *  and, when the face sets letters only latin-ext has, that file too. */
async function cjkPdfProvider(family, weight, style, request) {
  if (!(await isCjkFamily(family))) return cjkLatinPdfFiles(family, weight, style, request);
  const meta = await fontsourceMeta(family);
  const weights = meta.weights?.length ? meta.weights : [400, 700];
  const w = weights.reduce((a, b) => (Math.abs(b - weight) < Math.abs(a - weight) ? b : a));
  const s = style === 'italic' && !meta.styles.includes('italic') ? 'normal' : style;
  const slices = await cjkSlices(family, w, s);
  const picked = new Set();
  for (const cp of request?.codePoints ?? []) {
    const slice = cjkSliceFor(slices, cp);
    if (slice) picked.add(slice);
  }
  if (!picked.size) picked.add(slices[0]);
  return Promise.all(slices.filter((slice) => picked.has(slice)).map(async (slice) => {
    const res = await fetch(slice.url);
    if (!res.ok) throw new Error(`Fontsource file ${slice.url} (${res.status})`);
    return decompressWoff2(new Uint8Array(await res.arrayBuffer()));
  }));
}

/** A Latin family set next to the CJK faces: its latin file, then its
 *  latin-ext file when the face sets letters only latin-ext has (ō ū in
 *  Hepburn rōmaji, ǎ in pinyin), the file loadFonts adds on screen for
 *  them. Latin comes first: postext-pdf draws a character from the first
 *  file that has it, as the browser takes a character both files hold from
 *  latin. A face Fontsource ships without latin-ext, or whose file does
 *  not come, gets latin alone, and the PDF names the letters it lacks. */
async function cjkLatinPdfFiles(family, weight, style, request) {
  const meta = await fontsourceMeta(family);
  const beyond = [...(request?.codePoints ?? [])].some(cjkLatinExtOnly);
  if (!beyond || !meta?.subsets?.includes('latin-ext')) return fontsourceProvider(family, weight, style);
  const weights = meta.weights?.length ? meta.weights : [400, 700];
  const w = weights.reduce((a, b) => (Math.abs(b - weight) < Math.abs(a - weight) ? b : a));
  const s = style === 'italic' && !meta.styles.includes('italic') ? 'normal' : style;
  const id = fontsourceId(family);
  const url = `https://cdn.jsdelivr.net/npm/@fontsource/${id}@5/files/${id}-latin-ext-${w}-${s}.woff2`;
  const [latin, ext] = await Promise.all([fontsourceProvider(family, weight, style), fetch(url)
    .then(async (res) => (res.ok ? decompressWoff2(new Uint8Array(await res.arrayBuffer())) : null), () => null)]);
  return ext ? [latin, ext] : latin;
}

/** Whether code point `cp` is in Fontsource's latin-ext file and not in
 *  its latin file: Latin Extended-A and -B, IPA, the spacing modifiers and
 *  Latin Extended Additional (loadFonts's test for latin-ext), less the
 *  few latin holds too (ı Œ œ ʻ ʼ ˆ ˚ ˜). */
function cjkLatinExtOnly(cp) {
  if (!((cp >= 0x100 && cp <= 0x2ff) || (cp >= 0x1e00 && cp <= 0x1eff))) return false;
  return ![0x131, 0x152, 0x153, 0x2bb, 0x2bc, 0x2c6, 0x2da, 0x2dc].includes(cp);
}

/** showPages for a book bound on either edge. A right-bound book (the
 *  document says so: doc.binding is 'right' for page.binding 'right' and
 *  for vertical text) lies on the desk as it opens: page 1 alone on the
 *  left of the spine, then [3 | 2], the spine shade on each page's inner
 *  edge. `binding` ('left' | 'right') overrides the document's. */
function showBook(docs, { binding, ...options } = {}) {
  const count = showPages(docs, options);
  const right = (binding ?? [docs].flat()[0]?.binding) === 'right';
  if (!document.getElementById('pt-kit-cjk')) {
    // The pages keep direction ltr: a canvas draws text in the direction its
    // element inherits, and under rtl each run would end where the engine
    // starts it, its brackets mirrored.
    document.head.insertAdjacentHTML('beforeend', `<style id="pt-kit-cjk">
      .pt-spread[dir="rtl"] canvas { direction: ltr; }
      .pt-spread[dir="rtl"] figure:first-child canvas { box-shadow: inset 14px 0 14px -14px rgb(0 0 0 / .18),
        0 1px 2px rgb(0 0 0 / .5), 0 22px 44px -16px rgb(0 0 0 / .8); }
    </style>`);
  }
  // Each pair stays [verso, recto] in the page; right to left, the verso
  // sits on the right. Phones stack the pages in reading order either way.
  for (const spread of document.querySelectorAll('#pages > .pt-spread')) spread.dir = right ? 'rtl' : 'ltr';
  document.getElementById('pages').dataset.binding = right ? 'right' : 'left';
  return count;
}

// ─── /Kit ───────────────────────────────────────────────────────────────────────
