En poques paraules
Un estudi publicat sobre un xatbot que proposa exercicis de teràpia, abreujat i recompost. El diagrama de qui va entrar i sortir de l'assaig es dibuixa amb les seves xifres, les taules alineen els decimals i les referències segueixen APA.
Què compondràs
Un assaig controlat aleatoritzat de salut mental digital, compost de nou a partir del seu text en accés obert: l'assaig de Woebot publicat a JMIR Mental Health el 2017, un agent conversacional que aplica teràpia cognitivoconductual, abreujat a vuit pàgines. L'estil de la casa és el d'un informe de recerca sobri en 210 × 280 mm, amb Lora per al text, Nunito Sans per a rètols i xifres i un sol color d'accent, l'índigo. Les pàgines porten el que demana un informe d'assaig: el resum estructurat a l'amplada de les dues columnes, paraules clau i línia de registre, el flux de participants CONSORT redibuixat en codi amb les xifres del mateix article, dues taules de resultats amb els decimals alineats, el conflicte d'interessos dels autors paraula per paraula i cites autor-data APA 7 generades des de BibTeX. El text es manté en anglès, com es va publicar.
Aquesta recepta respon a
- Com dibuixo un diagrama de flux CONSORT i componc un resum estructurat per a l'informe d'un assaig clínic?
- Com faig una taula amb files de capçalera, cel·les combinades, amplades de columna i alineació per cel·la?

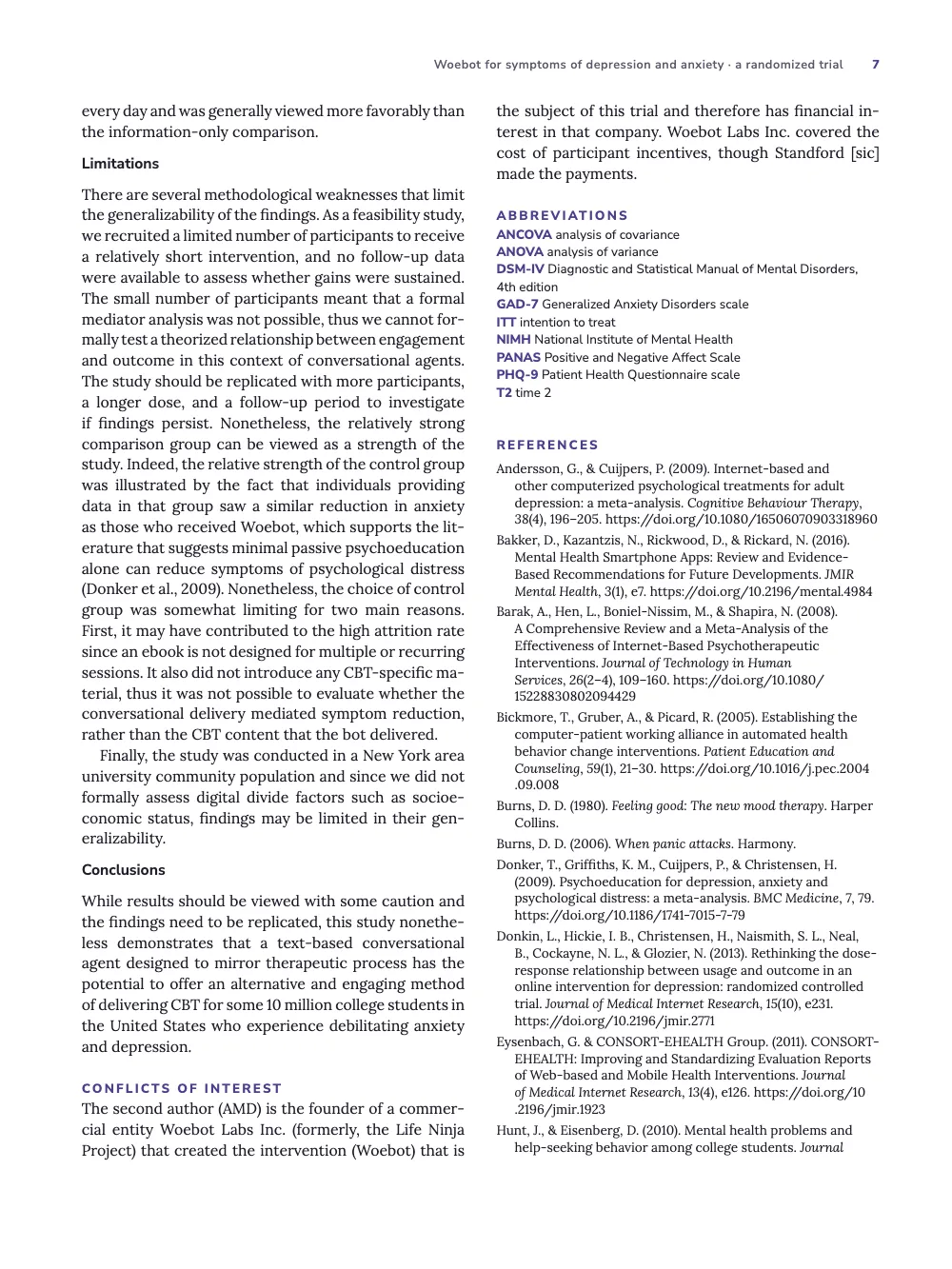

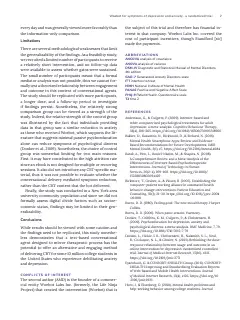

- Com cito obres i componc la bibliografia en APA, IEEE o un altre estil de cita?
- Com torno a compondre amb Postext un article d'accés obert d'arXiv o PubMed Central, amb les seves cites, les seves figures i la seva línia de llicència?
La resposta curta
// The abstract is a box whose span is 'page': the columns close above it and open again
// under it. Inside, :::columns sets Background to Results in two columns; the keywords and
// the registration line run across the box under them.
const abstractBox = { id: 'abstract', span: 'page', background: col('tint'),
padding: { top: mm(3.5), right: mm(4.5), bottom: mm(3), left: mm(4.5) },
marginTop: pt(0), marginBottom: pt(LEAD), columnGap: mm(7),
titleStyle: { fontFamily: SANS, fontSize: pt(8.5), fontWeight: 800, letterSpacing: pt(1.6),
textTransform: 'uppercase', color: col('accent'), gap: mm(2) },
body: { fontFamily: SANS, fontSize: pt(8.4), lineHeight: pt(11.4), textAlign: 'left',
firstLineIndent: pt(0), paragraphSpacing: true, boldColor: col('accent'),
boldFontWeight: 800, italicColor: col('ink') } };

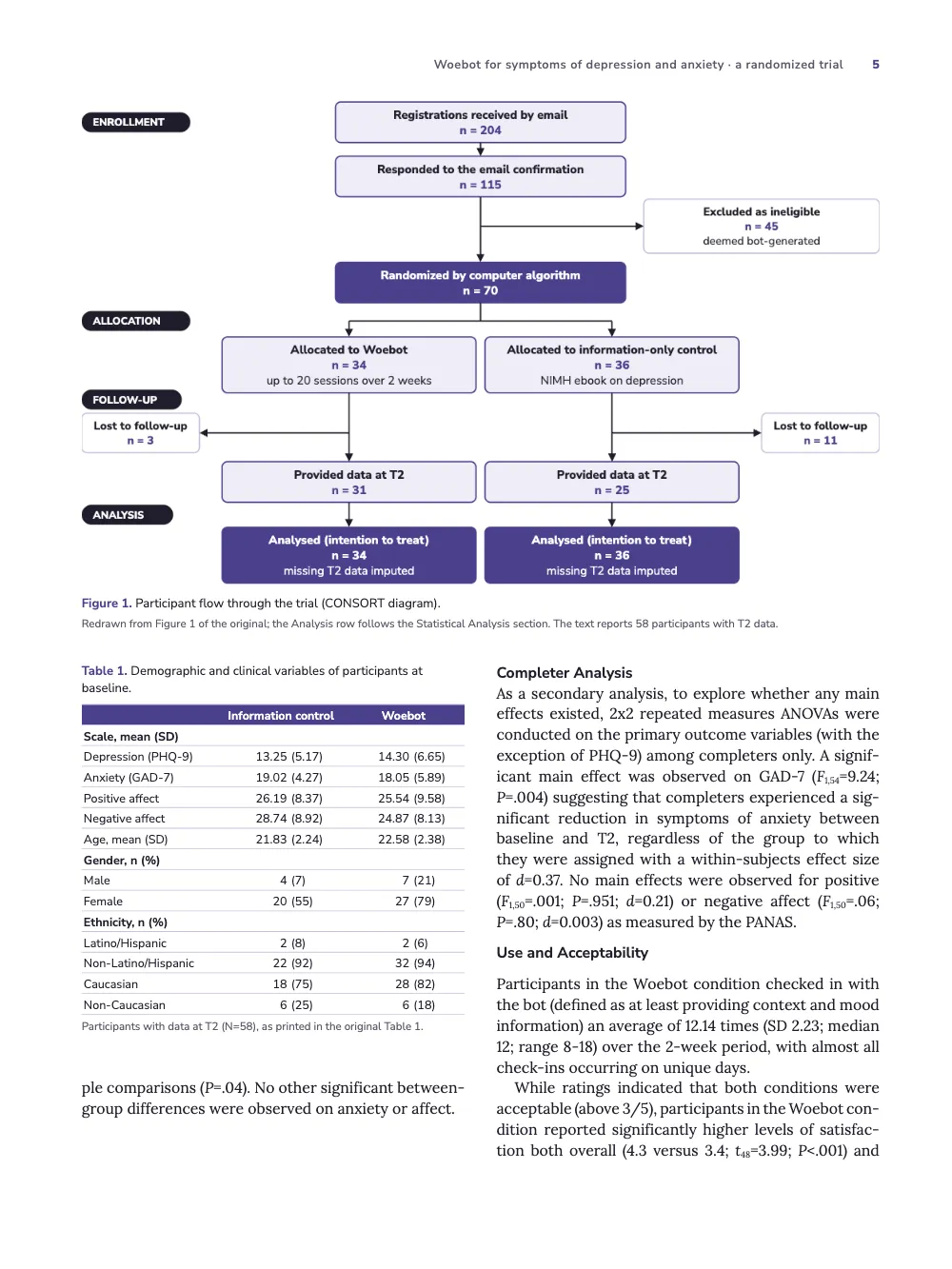

// The CONSORT diagram is an SVG drawn in code from the trial's numbers (see #region art),
// declared as a resource and placed by its first :ref, at the head of the next page.
const consort = { id: 'fig-consort', typeId: 'figure', kind: 'svg', createdAt: 0, updatedAt: 0,
placement: { position: 'top', span: 'page' },
svg: { fileId: 'consort.svg', width: 1760, height: CONSORT_H * 10 },
caption: 'Participant flow through the trial (CONSORT diagram).',
note: 'Redrawn from Figure 1 of the original; the Analysis row follows the Statistical '
+ 'Analysis section. The text reports 58 participants with T2 data.',
altText: 'Flow chart: 204 registrations, 115 confirmed, 45 excluded as bot-generated, 70 '
+ 'randomized; 34 to Woebot (3 lost, 31 with T2 data) and 36 to the information-only '
+ 'control (11 lost, 25 with T2 data); 34 and 36 analysed.' };
Ingredients
- Funcions
- Figures i taules com a recursosRequadres a tota l'ampladaTaules a partir de dadesCites que col·loquen les figuresCol·locació de figuresEstil dels peusLínies de font i crèditColumnes en un requadre o al textRequadres niatsEstil de taulesCites en un estil de citaBibliografia a partir de les referènciesEstils de títolObertures dissenyadesAtributs de títolCapçaleres i folisSuperíndexs i subíndexsEstils de paràgrafPaleta de color semànticaExportació a PDF
- També fa servir
- RequadresFigura i Taula en la teva llenguaMatemàtiquesCapçaleres segons el tipus de pàginaFonts incrustades al PDFTipus de recurs propisCapítols sense númeroEspai vertical explícit
- Tipografia
- Lora, Nunito Sans (SIL OFL 1.1)
- Recursos
- Cap: totes les imatges es dibuixen en codi
Elaboració

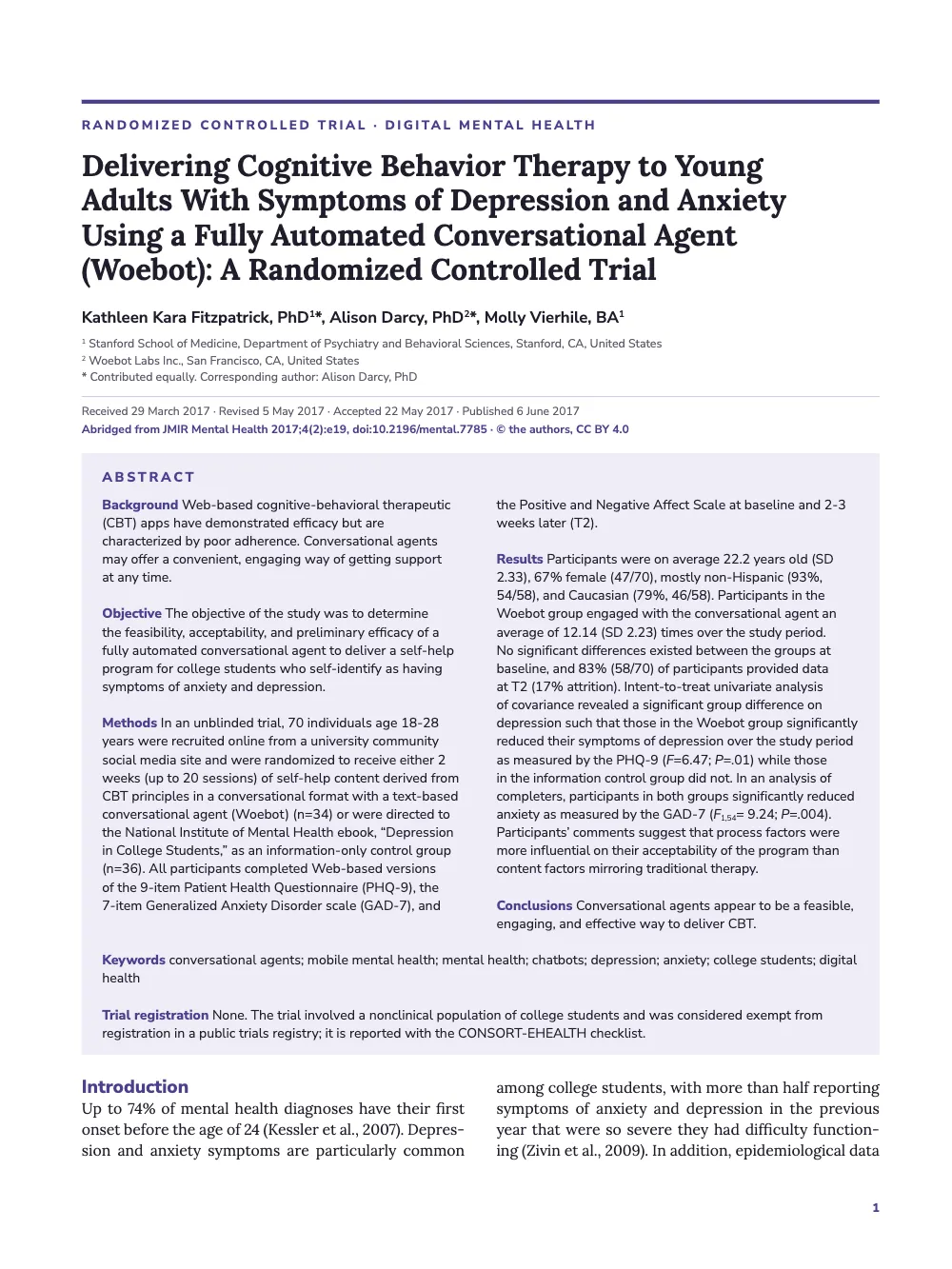

#1 · El requadre del resum i el diagrama com a recurs
El codi és la resposta curta de dalt. Un estil de requadre amb span: 'page' tanca les dues columnes per sobre i les torna a obrir per sota, així que el resum pot anar a tota l'amplada a qualsevol alçada de la pàgina. A dins, :::columns{count=2} reparteix de Background a Conclusions en dues columnes, i les paraules clau i la línia de registre segueixen a tota l'amplada del requadre. El diagrama CONSORT és un recurs SVG com qualsevol altre: el número, el peu i la nota de procedència surten del recurs, i el seu primer :ref el col·loca al capdamunt de la pàgina següent.
#2 · La capçalera de l'article, des dels atributs del títol
const text = (id, content, family, size, extra) => ({ kind: 'text', id, content, align: 'left',
fontFamily: family, fontSize: pt(size), color: col('ink'), overflow: 'wrap', ...extra });
const at = (to, edge, x, y, width) => ({ anchor: { to, edge }, offset: { x: mm(x), y: mm(y) },
...(width && { size: { width: mm(width), height: 'auto' } }) });
const caps = { fontFamily: SANS, fontWeight: 800, letterSpacing: pt(1.5),
textTransform: 'uppercase' };
const titleBlock = { enabled: true, minHeight: mm(70), slot: { elements: [
{ kind: 'rule', id: 'bar', thickness: pt(2.5), color: col('accent'),
placement: at('container', 'top-left', 0, 0, MEASURE) },
text('kind', '{attr.kind}', SANS, 8, { ...caps, color: col('accent'),
placement: at('#bar', 'below', 0, 3, MEASURE) }),
text('title', '{titleText}', SERIF, 18.5, { fontWeight: 700, lineHeight: 1.17,
placement: at('#kind', 'below', 0, 3.5, MEASURE - 8) }),
text('authors', '{attr.authors}', SANS, 10, { fontWeight: 700, inlineMarks: true,
placement: at('#title', 'below', 0, 4.5, MEASURE) }),
text('affiliations', '{attr.affiliations}', SANS, 7.4, { inlineMarks: true, lineHeight: 1.4,
color: col('muted'), placement: at('#authors', 'below', 0, 1.8, MEASURE) }),
{ kind: 'rule', id: 'hair', thickness: pt(0.5), color: col('rule'),
placement: at('#affiliations', 'below', 0, 2.6, MEASURE) },
text('history', '{attr.history}', SANS, 7.2, { color: col('muted'),
placement: at('#hair', 'below', 0, 1.6, MEASURE) }),
text('source', '{attr.source}', SANS, 7.2, { fontWeight: 700, color: col('accent'),
placement: at('#history', 'below', 0, 0.8, MEASURE) }),
] } };
El títol és l'únic títol de nivell 1 del document, amb un estil que ocupa tota la pàgina i es dibuixa amb elements. La resta surt d'atributs del títol: el tipus d'article, els autors amb marques de filiació ^1^ que inlineMarks posa volades, les filiacions separades per \n, les dates de recepció i acceptació i la línia de procedència. Per al teu article canvies els atributs i conserves el disseny. numbered: false a l'estil deixa les figures com a Figura 1, 2, 3 en lloc d'1.1.

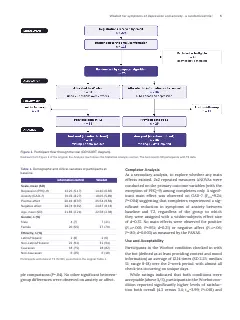

#3 · El flux CONSORT, dibuixat amb les xifres
const n2 = (v) => +v.toFixed(2);
const esc = (s) => s.replace(/&/g, '&').replace(/</g, '<');
// The labels' family, named on the root element: loadSvg embeds its faces.
const LABELS = `font-family="${SANS}"`;
const label = (x, y, s, size, weight, fill, anchor = 'middle') => `<text x="${n2(x)}" `
+ `y="${n2(y)}" font-size="${size}" font-weight="${weight}" fill="${fill}" `
+ `text-anchor="${anchor}">${esc(s)}</text>`;
// A box of centred lines: the first bold, "n = …" bold in the accent (white on a
// filled box), the rest regular.
function node(cx, y, w, lines, { size = 2.6, fill = palette.tint, stroke = palette.accent } = {}) {
const lh = size * 1.3;
const h = lines.length * lh + 2.2;
const solid = fill === palette.accent;
let svg = `<rect x="${n2(cx - w / 2)}" y="${n2(y)}" width="${w}" height="${n2(h)}" rx="1.2" `
+ `fill="${fill}" stroke="${stroke}" stroke-width="0.3"/>`;
lines.forEach((s, i) => {
const isN = /^n = /.test(s);
svg += label(cx, y + 1.1 + lh * (i + 0.78), s, size, i === 0 || isN ? 800 : 400,
solid ? palette.paper : isN ? palette.accent : palette.ink);
});
return { svg, h, top: y, bottom: y + h, mid: y + h / 2 };
}
// Arrows are a line plus a filled triangle path: no <marker> (gotcha: svg-no-marker-filters).
const line = (pts) => `<path d="M${pts.map(([x, y]) => `${n2(x)} ${n2(y)}`).join('L')}" `
+ `fill="none" stroke="${palette.ink}" stroke-width="0.3"/>`;
function arrow(pts) {
const [[x0, y0], [x1, y1]] = pts.slice(-2);
const a = Math.atan2(y1 - y0, x1 - x0);
const p = (d, s) => `${n2(x1 - Math.cos(a) * d + Math.sin(a) * s)} `
+ `${n2(y1 - Math.sin(a) * d - Math.cos(a) * s)}`;
return line([...pts.slice(0, -1), [x1 - Math.cos(a) * 1.4, y1 - Math.sin(a) * 1.4]])
+ `<path d="M${n2(x1)} ${n2(y1)}L${p(1.8, 0.9)}L${p(1.8, -0.9)}Z" fill="${palette.ink}"/>`;
}
// The four CONSORT stages as pills at the left edge, each centred on a y.
const stage = (y, s) => `<rect x="0" y="${n2(y - 2.2)}" width="${n2(s.length * 1.9 + 5)}" `
+ `height="4.4" rx="2.2" fill="${palette.ink}"/>`
+ label(2.5, y + 0.85, s.toUpperCase(), 2.3, 800, palette.paper, 'start');
function consortSvg(face) { // 176 mm wide, the full measure; one unit is a millimetre
const [W, L, R, MID] = [176, 59, 117, 88];
const side = { size: 2.5, fill: palette.paper, stroke: palette.rule };
const a = node(MID, 0.5, 64, ['Registrations received by email', 'n = 204']);
const b = node(MID, a.bottom + 3, 64, ['Responded to the email confirmation', 'n = 115']);
const x = node(150, b.bottom + 0.5, 52, ['Excluded as ineligible', 'n = 45',
'deemed bot-generated'], side);
const c = node(MID, x.bottom + 2, 64, ['Randomized by computer algorithm', 'n = 70'],
{ fill: palette.accent });
const split = c.bottom + 4; // the line that divides the sample between the arms
const parts = [a.svg, b.svg, x.svg, c.svg, stage(a.mid, 'Enrollment'),
arrow([[MID, a.bottom], [MID, b.top]]), arrow([[MID, b.bottom], [MID, c.top]]),
arrow([[MID, x.mid], [124, x.mid]]), stage(split, 'Allocation'),
line([[MID, c.bottom], [MID, split]]), line([[L, split], [R, split]])];
const arms = [[L, 13, 'Allocated to Woebot', 34, 'up to 20 sessions over 2 weeks', 3, 31],
[R, 163, 'Allocated to information-only control', 36, 'NIMH ebook on depression', 11, 25]];
for (const [cx, sx, title, n, what, gone, kept] of arms) {
const box = node(cx, split + 3.5, 56, [title, `n = ${n}`, what]);
const lost = node(sx, box.bottom + 4.5, 26, ['Lost to follow-up', `n = ${gone}`], side);
const t2 = node(cx, lost.bottom + 2, 56, ['Provided data at T2', `n = ${kept}`]);
const an = node(cx, t2.bottom + 5.5, 56, ['Analysed (intention to treat)', `n = ${n}`,
'missing T2 data imputed'], { fill: palette.accent });
parts.push(box.svg, lost.svg, t2.svg, an.svg, arrow([[cx, split], [cx, box.top]]),
arrow([[cx, box.bottom], [cx, t2.top]]), arrow([[cx, lost.mid], [sx + (sx < MID ? 13
: -13), lost.mid]]), arrow([[cx, t2.bottom], [cx, an.top]]));
if (cx === R) parts.push(stage(lost.top - 3, 'Follow-up'), stage(t2.bottom + 2.75, 'Analysis'));
}
return `<svg xmlns="http://www.w3.org/2000/svg" width="1760" height="${CONSORT_H * 10}" `
+ `viewBox="0 0 ${W} ${CONSORT_H}" ${face}>${parts.join('')}</svg>`;
}

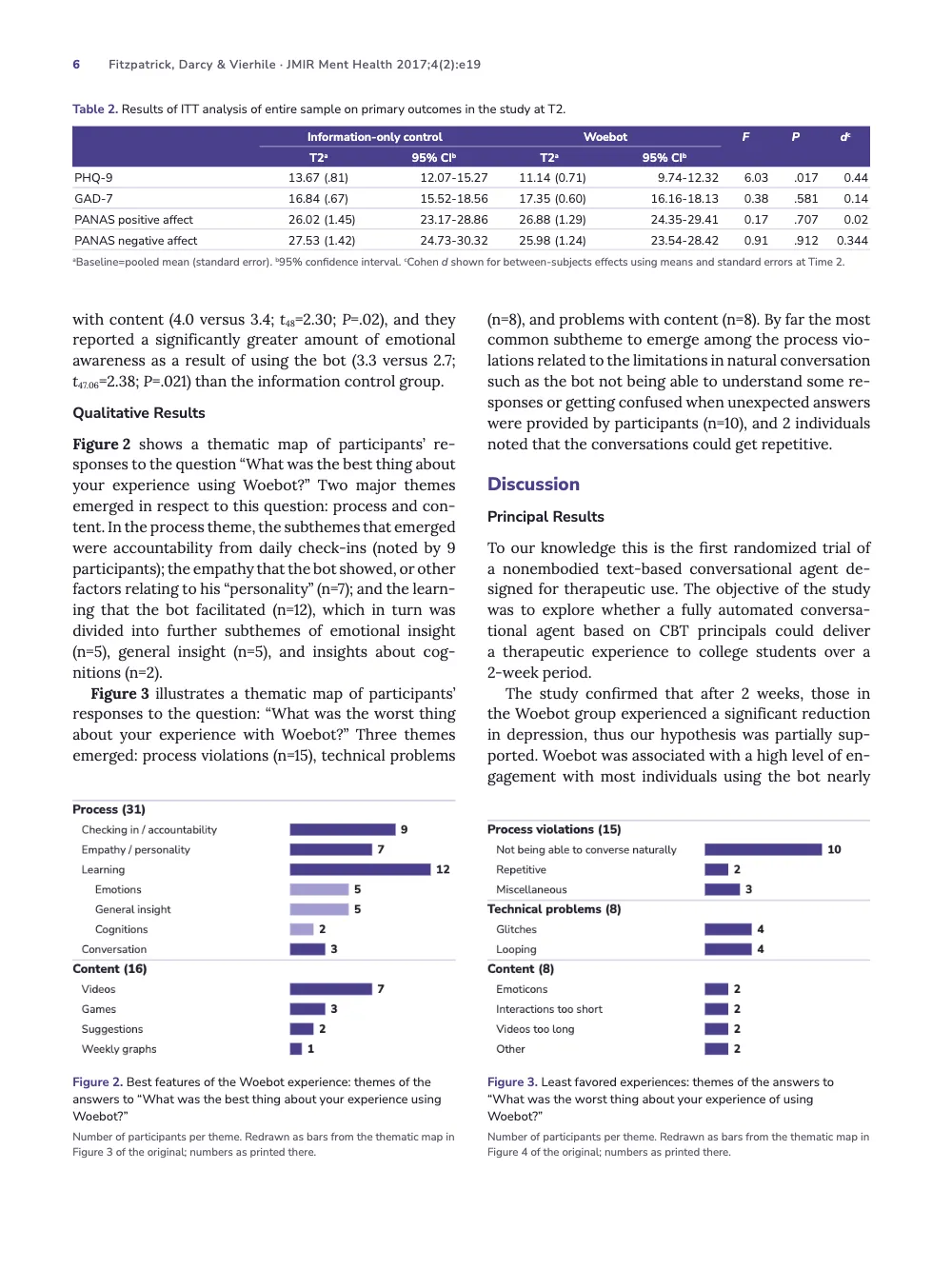

// The thematic maps (Figs 3, 4) as bars.
const THEMES = [
{ id: 'fig-best', file: 'best.svg', themes: [['Process', 31, [['Checking in / accountability', 9],
['Empathy / personality', 7], ['Learning', 12, [['Emotions', 5], ['General insight', 5],
['Cognitions', 2]]], ['Conversation', 3]]], ['Content', 16, [['Videos', 7], ['Games', 3],
['Suggestions', 2], ['Weekly graphs', 1]]]],
caption: 'Best features of the Woebot experience: themes of the answers to “What was the best '
+ 'thing about your experience using Woebot?”',
note: 'Number of participants per theme. Redrawn as bars from the thematic map in Figure 3 of '
+ 'the original; numbers as printed there.',
alt: 'Bars for Process (31): checking in 9, empathy 7, learning 12 (emotions 5, general '
+ 'insight 5, cognitions 2), conversation 3; Content (16): videos 7, games 3, suggestions 2, '
+ 'weekly graphs 1.' },
{ id: 'fig-worst', file: 'worst.svg', themes: [['Process violations', 15,
[['Not being able to converse naturally', 10], ['Repetitive', 2], ['Miscellaneous', 3]]],
['Technical problems', 8, [['Glitches', 4], ['Looping', 4]]], ['Content', 8,
[['Emoticons', 2], ['Interactions too short', 2], ['Videos too long', 2], ['Other', 2]]]],
caption: 'Least favored experiences: themes of the answers to “What was the worst thing about '
+ 'your experience of using Woebot?”',
note: 'Number of participants per theme. Redrawn as bars from the thematic map in Figure 4 of '
+ 'the original; numbers as printed there.',
alt: 'Bars for Process violations (15): not conversing naturally 10, repetitive 2, '
+ 'miscellaneous 3; Technical problems (8): glitches 4, looping 4; Content (8): emoticons, '
+ 'short interactions, long videos and other, 2 each.' },
];
const rows = (themes) => themes.flatMap(([name, n, subs]) => [{ name, n, depth: 0 },
...subs.flatMap(([s, k, deeper = []]) => [{ name: s, n: k, depth: 1 },
...deeper.map(([d, m]) => ({ name: d, n: m, depth: 2 }))])]);
const ROW = 4.4;
function themeHeight(id) { return rows(THEMES.find((f) => f.id === id).themes).length * ROW + 2; }
function themeSvg({ id, themes }, face) { // 84.5 mm wide: one column
const [W, X0, X1] = [84.5, 48, 79];
const H = themeHeight(id);
let svg = '';
rows(themes).forEach(({ name, n, depth }, i) => {
const y = 1 + i * ROW;
if (!depth) {
svg += `<path d="M0 ${n2(y + 0.2)}H${W}" stroke="${palette.rule}" stroke-width="0.25"/>`
+ label(0, y + 3.1, `${name} (${n})`, 2.75, 800, palette.ink, 'start');
return;
}
const w = (n / 12) * (X1 - X0);
svg += label(depth * 3 - 1, y + 3, name, 2.45, 400, palette.ink, 'start')
+ `<rect x="${X0}" y="${n2(y + 0.9)}" width="${n2(w)}" height="2.6" `
+ `fill="${depth === 1 ? palette.accent : palette.soft}"/>`
+ label(X0 + w + 1.2, y + 3, String(n), 2.55, 800, palette.ink, 'start');
});
return `<svg xmlns="http://www.w3.org/2000/svg" width="845" height="${Math.round(H * 10)}" `
+ `viewBox="0 0 ${W} ${n2(H)}" ${face}>${svg}</svg>`;
}
Cada caixa és una crida a node() amb les seves línies; les fases són píndoles al marge esquerre i les fletxes són una línia i un triangle ple, perquè un <marker> acaba com a imatge al PDF. Les xifres són les de l'assaig: 204 inscripcions, 115 confirmacions, 45 altes generades per bots excloses, 34 i 36 assignats, 3 i 11 perduts, 31 i 25 amb dades a T2. Per al teu assaig canvies els textos i els recomptes; la composició segueix l'alçada de les caixes. El text d'un SVG dibuixat com a imatge no veu les fonts de la pàgina, així que el dibuix porta Nunito Sans incrustada com a URL de dades.

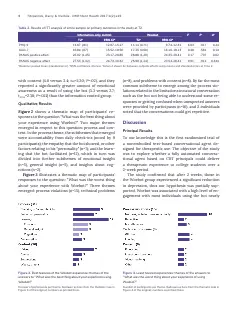

#4 · Xifres alineades a les taules
// Nunito Sans sets tabular figures, so numbers right-aligned in a column line up on the
// decimal point; the (SD) or (SE) sits in a column of its own, flush left beside it.
// aligns: one letter per column, l or r; header cells over the numbers are centred.
const cell = (content, align, head) => ({ content, ...(head && { isHeader: true }),
align: head && align !== 'left' ? 'center' : align });
function grid(rows, widths, aligns, heads, spans) { // spans: [row, col, lastRow, lastCol]
const a = [...aligns].map((k, c) => (c && k === 'r' ? 'right' : 'left'));
let m = { headerRowCount: heads, columnWidths: widths,
rows: rows.map((row, r) => widths.map((_, c) => cell(row[c] ?? '', a[c], r < heads))) };
for (const [r0, c0, r1, c1] of spans) {
m = mergeCells(m, { start: { row: r0, col: c0 }, end: { row: r1, col: c1 } });
}
return m; // mergeCells marks the covered cells hiddenBy (gotcha: merged-cells-hiddenby)
}
const pair = (s) => s.split(' '); // '13.25 (5.17)' → ['13.25', '(5.17)']
const BASE = [['Depression (PHQ-9)', '13.25 (5.17)', '14.30 (6.65)'],
['Anxiety (GAD-7)', '19.02 (4.27)', '18.05 (5.89)'],
['Positive affect', '26.19 (8.37)', '25.54 (9.58)'],
['Negative affect', '28.74 (8.92)', '24.87 (8.13)'], ['Age, mean (SD)', '21.83 (2.24)',
'22.58 (2.38)'], ['**Gender, n (%)**'], ['Male', '4 (7)', '7 (21)'],
['Female', '20 (55)', '27 (79)'], ['**Ethnicity, n (%)**'], ['Latino/Hispanic', '2 (8)', '2 (6)'],
['Non-Latino/Hispanic', '22 (92)', '32 (94)'], ['Caucasian', '18 (75)', '28 (82)'],
['Non-Caucasian', '6 (25)', '6 (18)']];
const ITT = [['PHQ-9', '13.67 (.81)', '12.07-15.27', '11.14 (0.71)', '9.74-12.32', '6.03',
'.017', '0.44'], ['GAD-7', '16.84 (.67)', '15.52-18.56', '17.35 (0.60)', '16.16-18.13', '0.38',
'.581', '0.14'], ['PANAS positive affect', '26.02 (1.45)', '23.17-28.86', '26.88 (1.29)',
'24.35-29.41', '0.17', '.707', '0.02'], ['PANAS negative affect', '27.53 (1.42)',
'24.73-30.32', '25.98 (1.24)', '23.54-28.42', '0.91', '.912', '0.344']];
const table = (id, model, span, caption, note) => ({ id, typeId: 'table', kind: 'table',
createdAt: 0, updatedAt: 0, placement: { position: 'top', span }, caption, note,
table: { model } });
const baseline = grid([['', 'Information control', '', 'Woebot', ''],
['**Scale, mean (SD)**'], ...BASE.map(([k, a, b]) => (a ? [k, ...pair(a), ...pair(b)] : [k]))],
[26, 13, 10, 13, 10], 'lrlrl', 1, [[0, 1, 0, 2], [0, 3, 0, 4], [1, 0, 1, 4], [7, 0, 7, 4],
[10, 0, 10, 4]]);
const itt = grid([['', 'Information-only control', '', '', 'Woebot', '', '', '*F*', '*P*',
'*d*^c^'], ['', 'T2^a^', '', '95% CI^b^', 'T2^a^', '', '95% CI^b^', '', '', ''],
...ITT.map(([k, a, ca, b, cb, ...s]) => [k, ...pair(a), ca, ...pair(b), cb, ...s])],
[30, 10, 9, 18, 10, 9, 18, 8, 8, 8], 'lrlrrlrrrr', 2, [[0, 0, 1, 0], [0, 1, 0, 3],
[0, 4, 0, 6], [1, 1, 1, 2], [1, 4, 1, 5], [0, 7, 1, 7], [0, 8, 1, 8], [0, 9, 1, 9]]);
const resources = () => [consort,
table('tbl-baseline', baseline, 'column', 'Demographic and clinical variables of '
+ 'participants at baseline.', 'Participants with data at T2 (N=58), as printed in the '
+ 'original Table 1.'),
table('tbl-itt', itt, 'page', 'Results of ITT analysis of entire sample on primary outcomes '
+ 'in the study at T2.', '^a^Baseline=pooled mean (standard error). ^b^95% confidence '
+ 'interval. ^c^Cohen *d* shown for between-subjects effects using means and standard '
+ 'errors at Time 2.'),
...THEMES.map(({ id, file, caption, note, alt }) => ({ id, typeId: 'figure', kind: 'svg',
createdAt: 0, updatedAt: 0, placement: { position: 'auto' }, caption, note, altText: alt,
svg: { fileId: file, width: 845, height: Math.round(themeHeight(id) * 10) } })),
];
Nunito Sans compon les seves xifres amb una sola amplada, de manera que una columna de mitjanes alineades a la dreta quadra a la coma decimal. Cada mitjana i la seva DE o EE van en dues columnes, la mitjana a la dreta i el parèntesi a l'esquerra, enganxat a ella, i mergeCells construeix les capçaleres de grup («Information-only control» sobre tres columnes) i les files que travessen la taula. La Taula 2 és un flotant a tota l'amplada; la Taula 1 es queda en una columna.

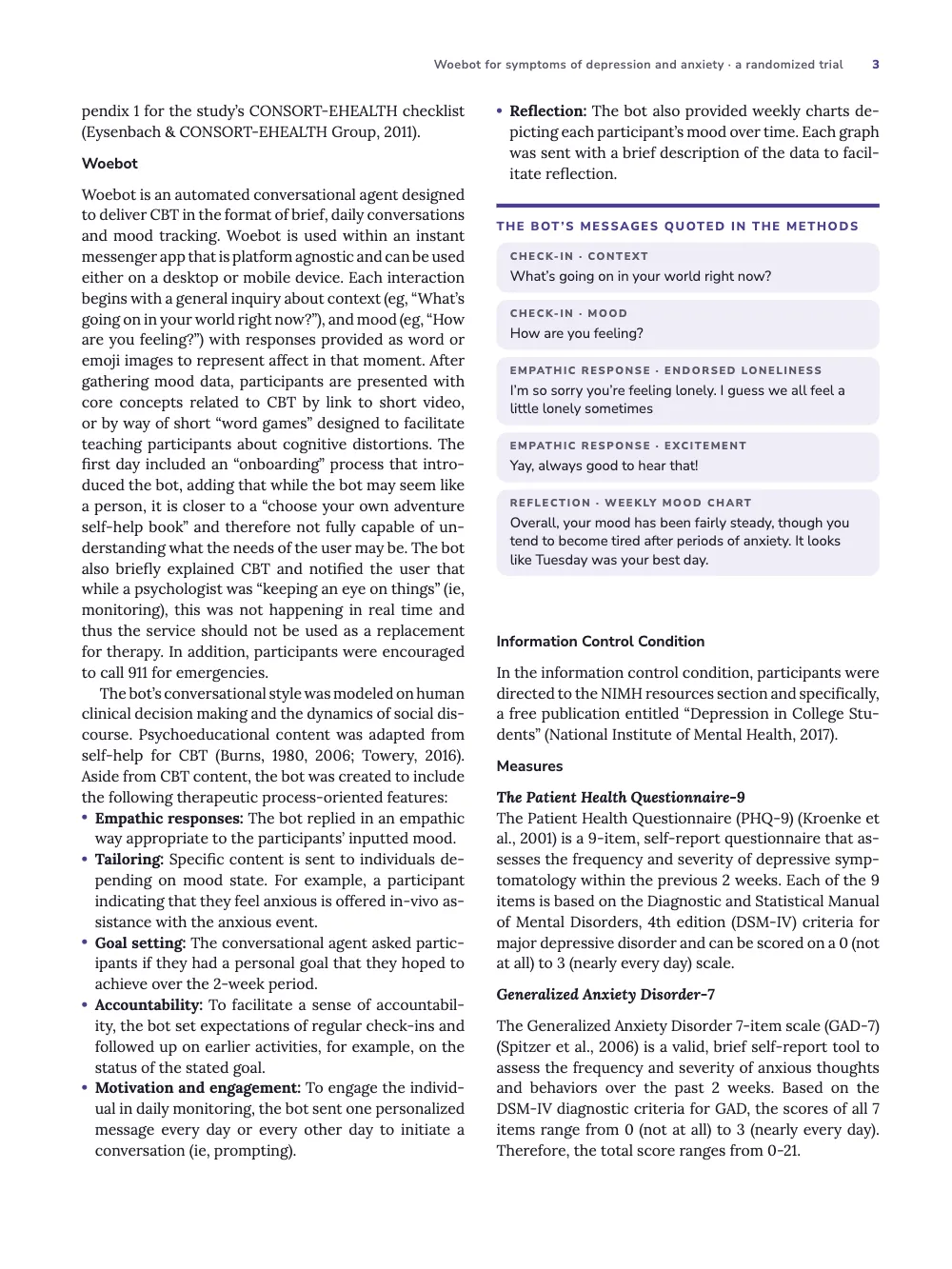

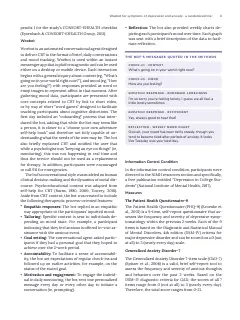

#5 · Les paraules del bot en requadres niats
const bubbleTitle = { fontFamily: SANS, fontSize: pt(6.6), fontWeight: 800, letterSpacing: pt(1),
textTransform: 'uppercase', color: col('muted'), gap: mm(0.8) };
const calloutStyles = [
abstractBox,
{ id: 'chat', backgroundEnabled: false, marginTop: pt(LEAD), marginBottom: pt(0),
padding: { top: mm(2.5), right: mm(0), bottom: mm(0.5), left: mm(0) },
stripe: { enabled: true, side: 'top', width: pt(2.5), color: col('accent') },
titleStyle: { ...bubbleTitle, fontSize: pt(7.6), color: col('accent'), gap: mm(2) } },
{ id: 'bubble', background: col('tint'), borderRadius: mm(2.4), marginTop: mm(1.6),
marginBottom: mm(0), padding: { top: mm(1.6), right: mm(3), bottom: mm(1.8), left: mm(3) },
titleStyle: bubbleTitle,
body: { fontFamily: SANS, fontSize: pt(8.8), lineHeight: pt(11.4), textAlign: 'left',
firstLineIndent: pt(0), color: col('ink') } },
];
L'article cita cinc missatges que va enviar el bot. La recepta els reuneix en un requadre amb una franja índigo a dalt; cada missatge és un requadre niat amb les cantonades arrodonides i un rètol petit que anomena el tret que il·lustra. Només hi apareixen les cites de l'article, sense afegir-hi res.
La recepta completa
// ═══ Postext Cookbook · Nº 142 · A clinical trial report with a CONSORT diagram ══════
// https://postext.dev/en/cookbook/clinical-trial-consort-flow
// Code: MIT · Text: Fitzpatrick, Darcy & Vierhile 2017 (CC BY 4.0), abridged · Figures: code
// Fonts: Lora, Nunito Sans (SIL OFL 1.1) · Needs postext ≥ 1.34.0
import {
buildDocumentWithFonts, renderPageToCanvas, registerCitationEngine, registerResourceImage,
defaultResourceTypes, mergeCells, initMathEngine, inlineSvgFonts,
} from 'https://esm.sh/postext';
import { renderToPdf, decompressWoff2 } from 'https://esm.sh/postext-pdf';
import { createCiteprocEngine, STYLES, LOCALES } from 'https://esm.sh/postext-citeproc';
const LANG = 'en'; // @lang: the language of the sample document ('en' | 'es')
const RECIPE = 'clinical-trial-consort-flow';
// ─── 1 · Design ─────────────────────────────────────────────────────────────
// #region palette: a violet-tinted ink and one indigo accent; the control arm in a pale tint
const palette = { ink: '#1f1d2b', accent: '#4a3f8c', soft: '#a39cd0', tint: '#efedf7',
rule: '#c7c2de', muted: '#5b586b', paper: '#ffffff' };
const col = (id) => ({ hex: palette[id], model: 'hex', paletteId: id });
const colorPalette = Object.entries({ ...palette, 'main-color': palette.accent })
.map(([id, hex]) => ({ id, name: id, value: { hex, model: 'hex' } }));
// #endregion
const [SERIF, SANS] = ['Lora', 'Nunito Sans'];
const [TRIM_W, TRIM_H, TOP, BOTTOM, INNER, OUTER, GUTTER] = [210, 280, 22, 22, 18, 16, 7];
const MEASURE = TRIM_W - INNER - OUTER; // 176 mm
const LEAD = 13; // pt: 9.4 pt Lora in two columns of 84.5 mm
const CONSORT_H = 107; // mm: the height of the CONSORT drawing (its resource is × 10 px)
// #region answer: a structured abstract across both columns, and a figure drawn from numbers
// The abstract is a box whose span is 'page': the columns close above it and open again
// under it. Inside, :::columns sets Background to Results in two columns; the keywords and
// the registration line run across the box under them.
const abstractBox = { id: 'abstract', span: 'page', background: col('tint'),
padding: { top: mm(3.5), right: mm(4.5), bottom: mm(3), left: mm(4.5) },
marginTop: pt(0), marginBottom: pt(LEAD), columnGap: mm(7),
titleStyle: { fontFamily: SANS, fontSize: pt(8.5), fontWeight: 800, letterSpacing: pt(1.6),
textTransform: 'uppercase', color: col('accent'), gap: mm(2) },
body: { fontFamily: SANS, fontSize: pt(8.4), lineHeight: pt(11.4), textAlign: 'left',
firstLineIndent: pt(0), paragraphSpacing: true, boldColor: col('accent'),
boldFontWeight: 800, italicColor: col('ink') } };
// The CONSORT diagram is an SVG drawn in code from the trial's numbers (see #region art),
// declared as a resource and placed by its first :ref, at the head of the next page.
const consort = { id: 'fig-consort', typeId: 'figure', kind: 'svg', createdAt: 0, updatedAt: 0,
placement: { position: 'top', span: 'page' },
svg: { fileId: 'consort.svg', width: 1760, height: CONSORT_H * 10 },
caption: 'Participant flow through the trial (CONSORT diagram).',
note: 'Redrawn from Figure 1 of the original; the Analysis row follows the Statistical '
+ 'Analysis section. The text reports 58 participants with T2 data.',
L'script.js compost funciona tal com és: enganxa'l com a script de mòdul en qualsevol pàgina o obre la recepta a CodePen. Carpeta de la recepta a GitHub ↗ (s'obre en una pestanya nova)
Variants
#Cita amb números a la manera de Vancouver
Les revistes mèdiques solen numerar les cites; el BibTeX i el text no canvien.
- citations: { style: 'apa', link: true,
+ citations: { style: 'elsevier-vancouver', marker: 'superscript', link: true,#Afegeix un número de ClinicalTrials.gov
Aquest assaig es va considerar exempt de registre i ho diu. Un assaig registrat dona el seu registre i el seu número a la mateixa línia del requadre, per exemple **Trial registration** ClinicalTrials.gov NCT01234567, amb el número del teu propi registre.
#Un diagrama sense la fila d'anàlisi
Si l'informe no diu a qui es va analitzar, acaba cada branca a les caixes de seguiment: treu el node an i la seva fletxa, i abaixa CONSORT_H.
Errors freqüents
Error freqüent
Sense <marker> ni filtres als SVG, o passen a mapa de bits
Una figura SVG només continua sent vectorial al PDF sense <marker>, filtres ni màscares; si no, passa a mapa de bits, i els filtres molt imbricats la poden deixar en blanc a Chrome. Dibuixa les puntes de fletxa com a traçats. Figures i taules com a recursos →
Error freqüent
Les matemàtiques necessiten await initMathEngine() abans de la primera composició
Les fórmules compostes abans que arrenqui el motor de matemàtiques són caixes grises de substitució. Importa initMathEngine des de https://esm.sh/postext amb els altres símbols i espera'l amb await abans de la primera composició; un document amb matemàtiques compost sense ell deixa un únic avís a la consola. Des de postext 1.5 MathJax ve dins del paquet com un mòdul que initMathEngine descarrega, així que la importació normal funciona des d'una CDN i ?bundle no cal (fins a la 1.4 tots els símbols havien de venir de https://esm.sh/postext?bundle). Importa des d'una sola URL: dues URL carreguen dos motors. Matemàtiques →
Error freqüent
Un $ sol obre matemàtiques: escriu \$
El signe de dòlar obre matemàtiques en línia, de manera que un preu com $40 comença una fórmula. Escriu \$40. Escapaments i caràcters literals →
Error freqüent
Un flotant 'top' va a la pàgina següent a la seva cita tret que pugui encapçalar la pàgina que el cita
Per defecte un flotant no va mai per sobre de la seva pròpia referència, així que un flotant 'top' a tota l'amplada citat a la pàgina N obre la pàgina N+1. Amb placement.citingPage: true al recurs o al defaultPlacement del seu tipus (o layout.floatsAtCitingPage per a tot el llibre, des de postext 1.25) encapçala en canvi la pàgina N, i el text de damunt de la referència baixa sota seu, quan hi cap dins de layout.maxTopFraction i la línia que el cita continua en aquesta pàgina. No encapçala mai la primera pàgina d'un capítol ni una pàgina després d'un salt forçat: allà continua obrint la pàgina següent, i 'auto' o 'bottom' poden ocupar el peu de la pàgina que el cita. Col·locació de figures →
- L'article no té número NCT: els autors escriuen que l'assaig va quedar exempt de registre. La línia de registre ho diu, amb el motiu que dona l'article, en lloc d'inventar un número.
- Una taula que comparteix columna amb una figura a tota l'amplada s'atura tres línies abans del peu i continua a la pàgina següent. La Taula 1 hi cap sencera perquè les seves files van a 7,5 pt amb 0,45 mm de farciment i el dibuix CONSORT fa 107 mm d'alt.
- L'article escriu χ² a les proves de khi quadrat, i aquesta edició també, com a matemàtiques en línia:
$\chi^2_1$. Cap fitxer de Lora a Fontsource té la χ, ni tan sols el fitxer math, que només porta unes quantes lletres gregues com π i Ω; la dibuixa MathJax, com a traços al PDF.
Crèdits
- Recepta
- Ignacio Ferro
- Text
- Text and data: Fitzpatrick KK, Darcy A, Vierhile M. Delivering Cognitive Behavior Therapy to Young Adults With Symptoms of Depression and Anxiety Using a Fully Automated Conversational Agent (Woebot): A Randomized Controlled Trial. JMIR Mental Health 2017;4(2):e19, doi:10.2196/mental.7785. Originally published in JMIR Mental Health (http://mental.jmir.org), 06.06.2017. Abridged; figures redrawn in code from the article's numbers; citations converted to APA author–date · © Kathleen Kara Fitzpatrick, Alison Darcy, Molly Vierhile · CC BY 4.0
- Fonts
- Lora (SIL OFL 1.1) · Nunito Sans (SIL OFL 1.1)
- Codi
- MIT, com Postext
Editar aquest text ↗ (s'obre en una pestanya nova)Carpeta de la recepta a GitHub ↗ (s'obre en una pestanya nova)
